Panasonic KX-W1500

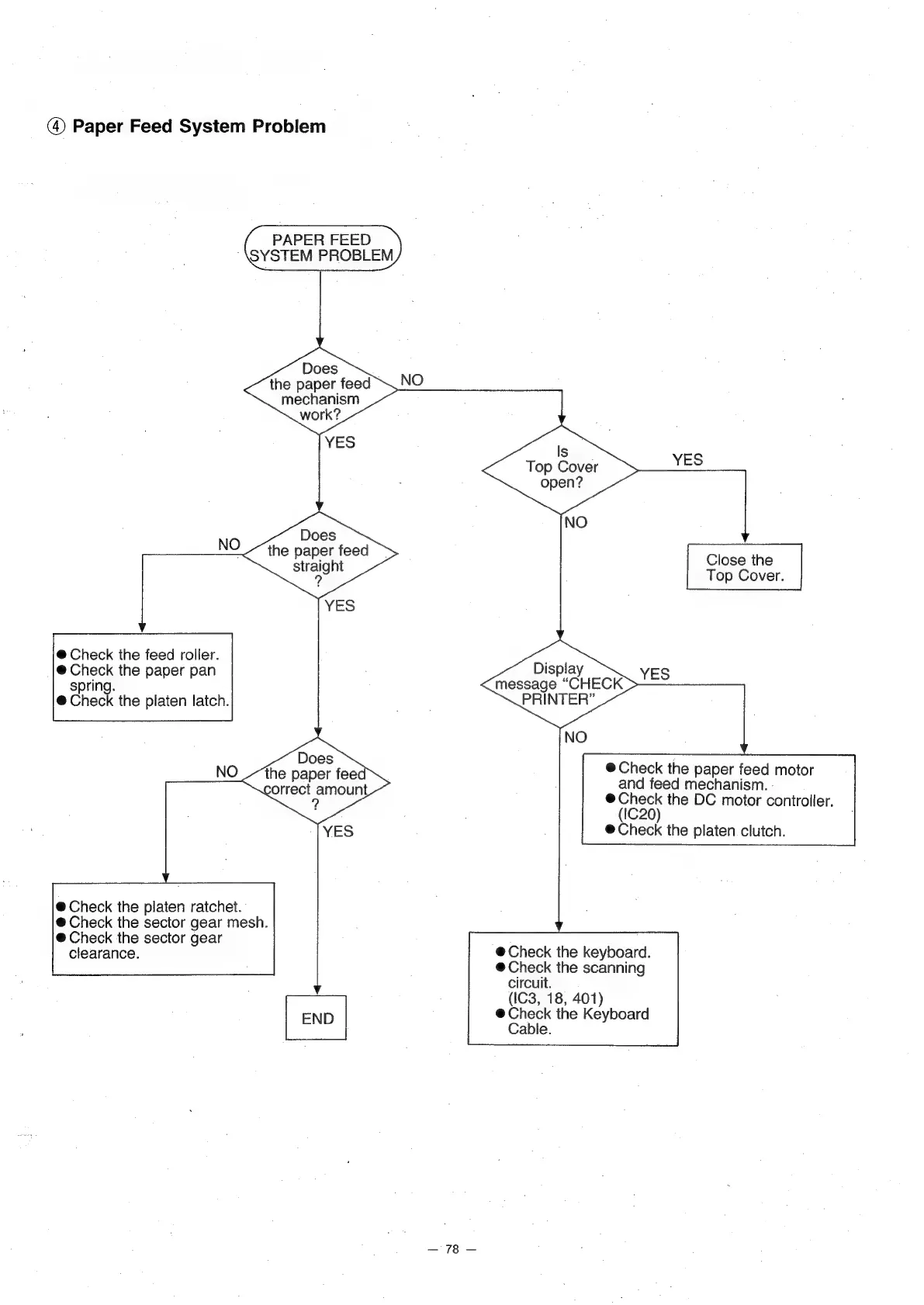

(4) Paper Feed System Problem
PAPER FEED
SYSTEM PROBLEM
Does
the paper feed
mechanism
work?
NO
YES
Does
the paper feed
NO
. straight
2
YES
@ Check the feed roller.
@ Check the paper pan
spring.
@ Check the platen latch.
@ Check the platen ratchet.
@ Check the sector gear mesh.
@ Check the sector gear
clearance.
END
78 —
YES
Close the
Top Cover.
Display
PRINTER”
YES
NO
@ Check the paper feed motor
and feed mechanism. -
@
Check
the
DC
motor
controller.
(IC20)
®@ Check the platen clutch.
@ Check the keyboard.
@ Check the scanning
circuit.
(IC3, 18, 401)
@ Check the Keyboard
Cable.
