Installation 3

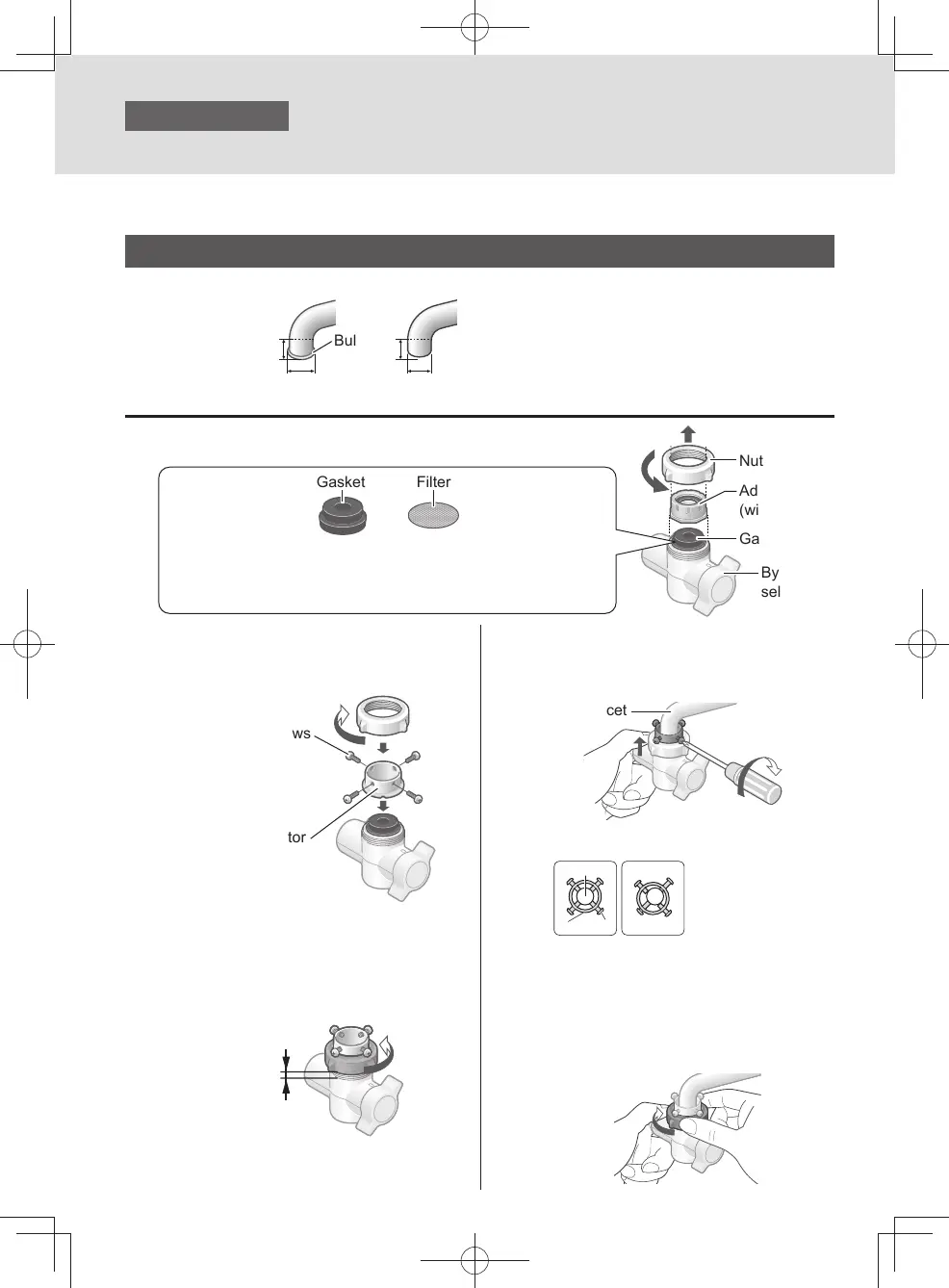

Attaching the bypass selector
(continued)
①
11 mm or more
②
13 mm or more, less than 24 mm
y
Water faucet which can attach the bypass selector with accessory.
Faucet without an aerator
1
Remove the nut and adaptor.
2
Insert the installation adaptor,
and tighten it with the nut.
Remove the screws
(4 pcs.)
Installation adaptor
(Accessory)
3
Tighten the 4 screws
temporarily and loosen the nut
to leave a 3 - 4 mm gap.
3 - 4 mm
4
Push the bypass selector
against the faucet and install
the 4 screws as shown below.
Water faucet
z
Top view
①
Water faucet
②
Installation adaptor
③
Screws
②
③
< OK > < NG >
5
Tighten the nut until the bypass
selector does not turn.
z
Do not use any tools. (This may
damage the nut.)
z
Make sure the bypass selector is
not inclined.
Nut
Gasket and Filter
Do not remove the gasket and the lter inside the bypass selector.
If these are moved, return to the original position.
Make sure foreign matter is not attached to the lter and the gasket
is not inclined.
Gasket
Bypass
selector
Adaptor
(with gasket)
①
Bulge
EN8
