ProcedureFigure

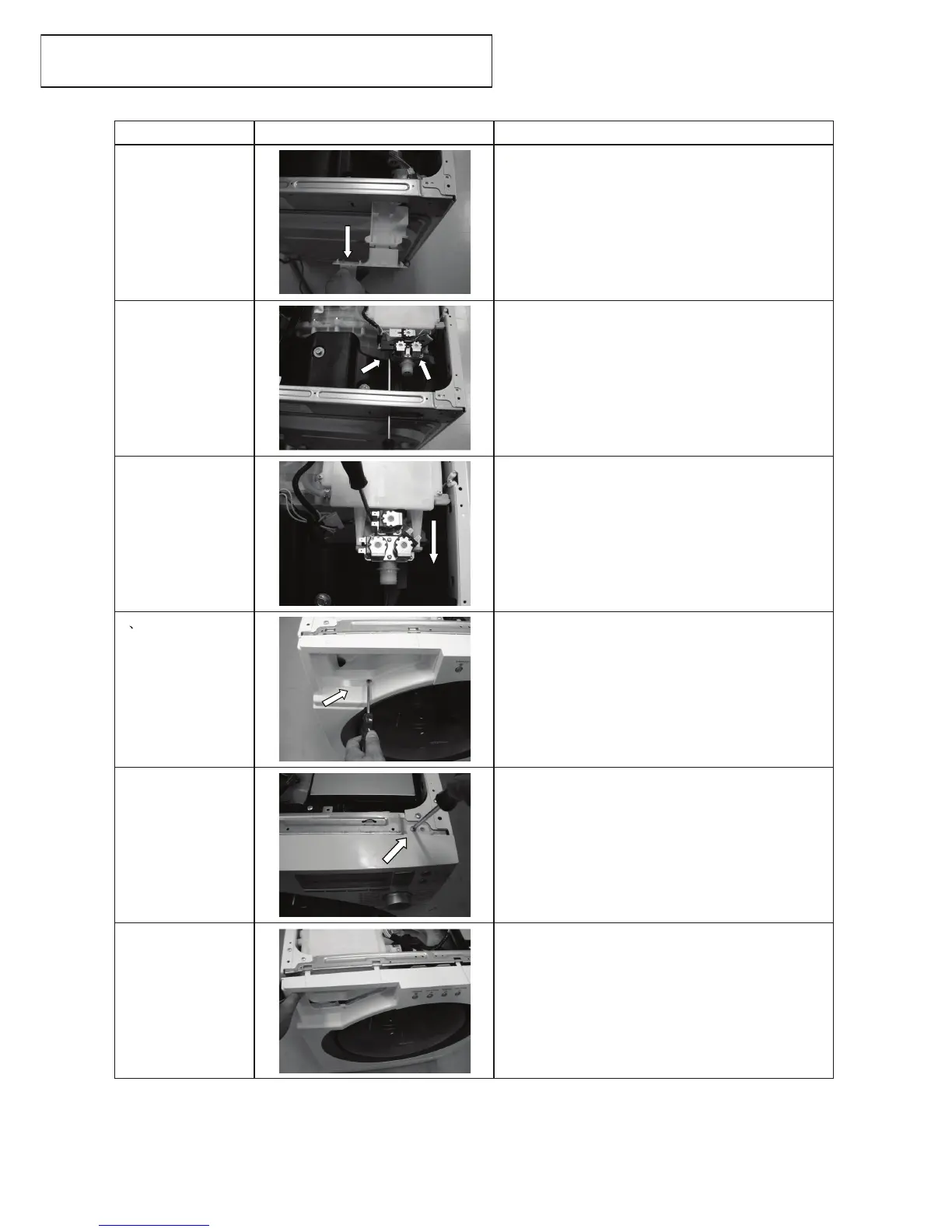

4.pull all pawls up to remove the detergent case A
from the body joint.
5.Remove the two screws mounting the feed valve
unit as shown in left figure.
6.Remove the three connectors from the feed valve
unit, and pull it out to remove by a screwdriver.
After remove the upper board,
1.Remove the detergent case B, and remove the
one screw mounting the panel face board.
2.Remove another screw mounting the panel face
board.
3.Press all pawls mounting the panel face board
and pull it out slightly to remove.
