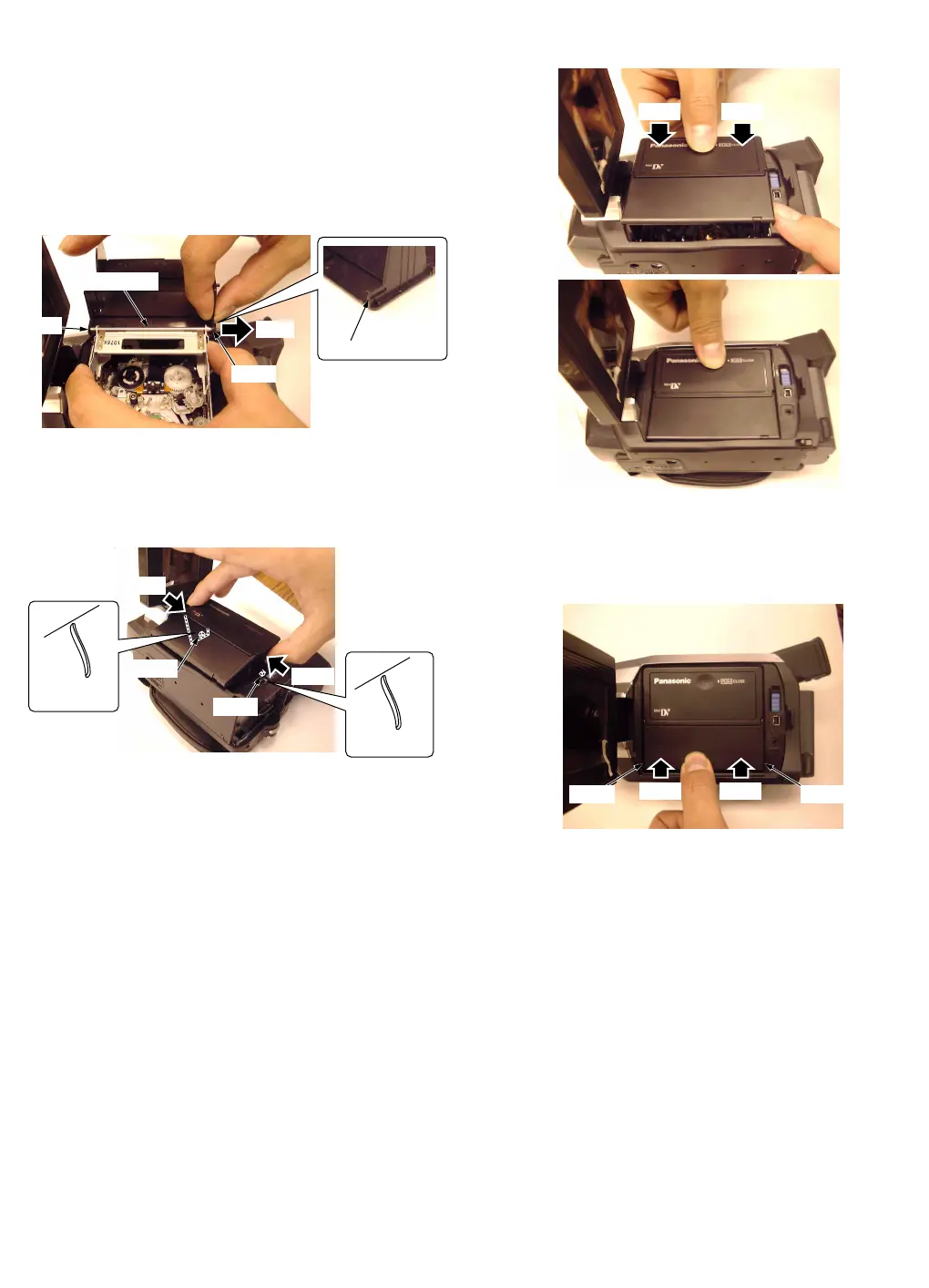

Installation of Cassette Cover Ass'y
CAUTION:
Be careful not to apply any pressure to the Garage Unit
of the Mechanism Chassis Ass'y.
Install it in the order shown below.
1) Set the Locking Tabs (L-1f). Then, pinch and pull the
Cassette Cover to set the Locking Tab (L-1e) while
holding the Garage Unit carefully. Then, put the Cassette
Cover on the Mechanism Chassis Ass'y.
CAUTION:
Do not break the Cassette Cover.
Fig. D2-7
2) Push the both side of the Cassette Cover to set the
Locking Tabs (L-1c) and (L-1d) to slots of the Side Case
R.
Fig. D2-8
(L-1f)
(L-1e)
Garage Unit
Pull
Do not break.
Push
Push
(L-1c)
(L-1d)
Slot of
Side Case R
Slot of
Side Case R
Push Push
Push Push
(L-1a)(L-1b)
3) Push down the upper portion of the Cassette Cover to
close as shown.
Fig. D2-9
4) Push down the lower portion of the Cassette Cover to
set Locking Tabs (L-1a) and (L-1b).
Fig. D2-10
