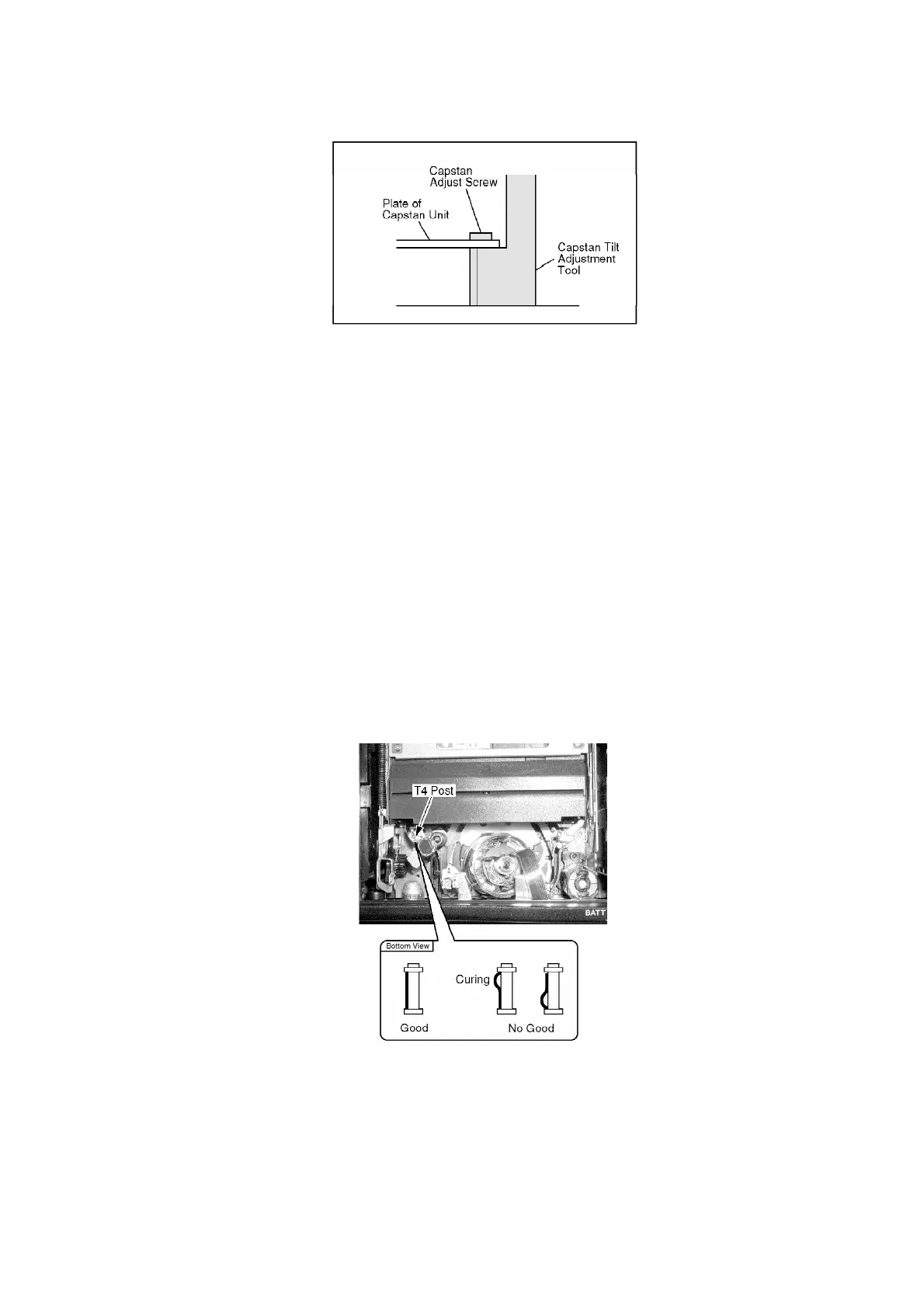

8.2.4. T4 POST HEIGHT CONFIRMATION
Purpose:
To confirm so that the height of the T4 Post is proper.
Symptom:
If the height of the T4 Post is incorrect, the tape might be
damaged.
1. To remove the Cassette Cover, refer to "Disassembly Method" of
CABINET SECTION in DISASSEMBLY/ASSEMBLY PROCEDURES.
2. Insert the tape without the Cassette Cover.
3. Confirm that the tape travels without curing at T4 post in both
PLAY and REVIEW modes. If curing is apparent, replace the Pinch
Arm Unit.
Fig. T3-2
8.2.5. ENVELOPE OUTPUT ADJUSTMENT
1. Connect the Camcorder and the Measuring Board with Camera
Connecting Cable.
59
