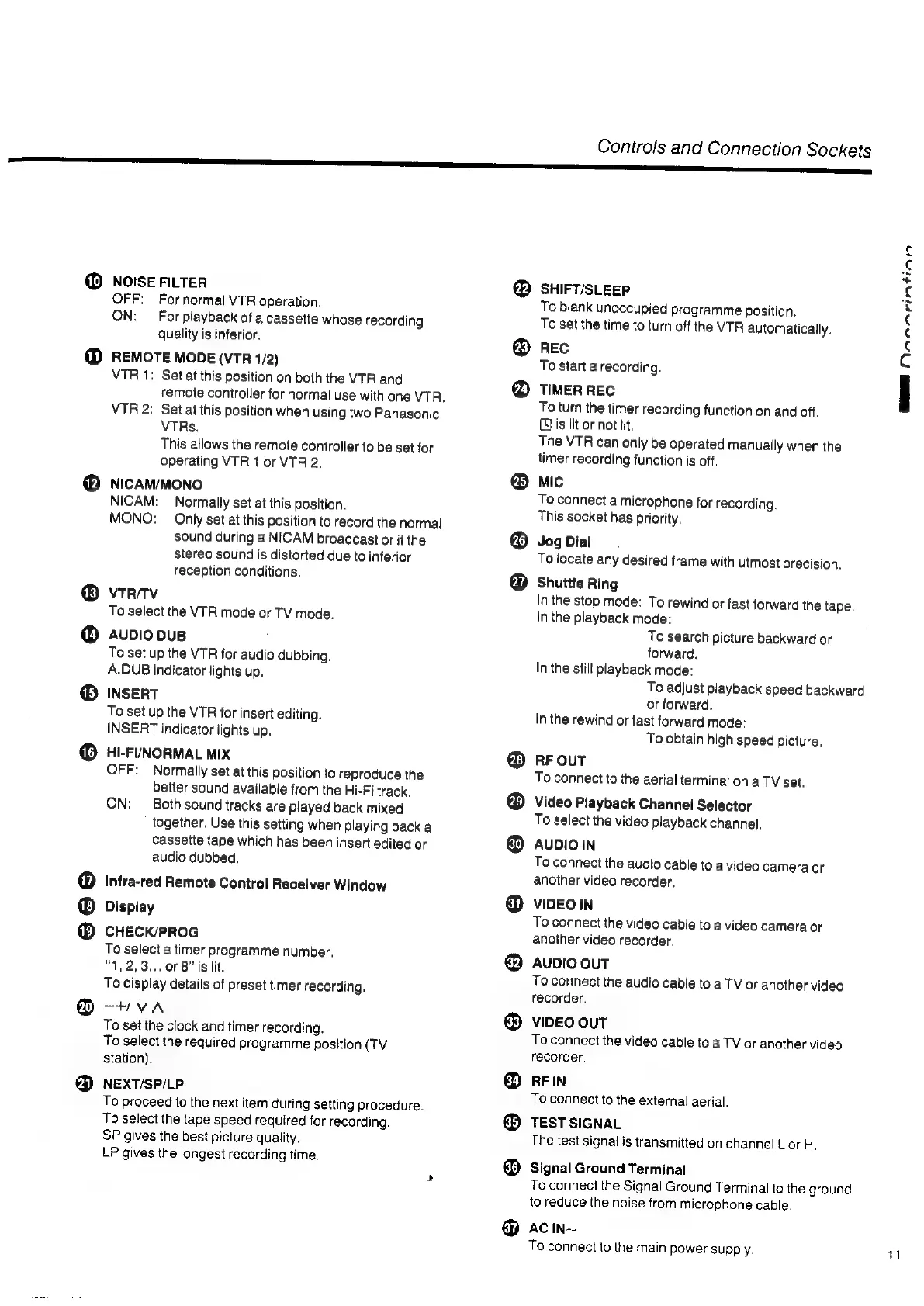

@® NOISE FILTER
OFF:
Fornormal
VTR
operation.
ON:
For
playback
of
a
cassette
whose
recording
quality is inferior.
@
REMOTE
MODE
(VTR
1/2)
VTR
1:
Set
at
this
position
on
both
the
VTR
and
remote
controller
for
normal
use
with
one
VTR.
VTR
2:
Set
at
this
position
when
using
two
Panasonic
VTRs.
This
allows
the
remote
controller
to
be
set
for
operating
VTR
1
or
VTR
2.
® NicAmmono
NICAM:
Normally
set
at
this
position.
MONO:
Only
set
at
this
position
to
record
the
normal
sound
during
a
NICAM
broadeast
or
if
the
stereo
sound
is
distorted
due
to
inferior
reception
conditions.
VTR/TV
To
select
the
VTR
mode
or
TV
mode.
AUDIO DUB
To
set
up
the
VTR
for
audio
dubbing.
A.DUB indicator lights up.
INSERT
To
set
up
the
VTR
for
insert
editing.
INSERT indicator tights up.
Hi-Fi/NORMAL MIX
OFF:
Normally
set
at
this
position
to
reproduce
the
better
sound
available
from
the
Hi-Fi
track.
ON:
—
Both
sound
tracks
are
played
back
mixed
together.
Use
this
setting
when
playing
back
a
cassette
tape
which
has
been
insert
edited
or
audio
dubbed.
Infra-red
Remote
Control
Receiver
Window
68 68 8 6
Display
CHECK/PROG
To
select
a
timer
programme
number.
“1,2,3...
or
8”
is
lit.
To
display
details
of
preset
timer
recording.
@ -tiva
To
set
the
clock
and
timer
recording.
To
select
the
required
programme
position
(TV
station).
@ NEXT/SP/LP
To
proceed
to
the
next
item
during
setting
procedure.
To
select
the
tape
speed
required
for
recording.
SP
gives
the
best
quality.
LP
gives
the
longest
recording
time.
eee
@
8 6
6 686 6 6 6 6 @ 86
@
Controls
and
Connection
Sockets
SHIFT/SLEEP
To
blank
unoccupied
Programme
position.
To
set
the
time
to
turn
off
the
VTR
automatically.
REC
To start a recording.
TIMER REC
To
turn
the
timer
recording
function
on
and
off.
7 is lit or not lit.
The
VTR
can
only
be
operated
manuaily
when
the
timer
recording
function
is
off,
MIC
To
connect
a
microphone
for
recording.
This
socket
has
priority.
GEN AnAnrintian
Jog Dial
To
locate
any
desired
frame
with
utmost
precision.
Shuttle Ring
In
the
stop
mode:
To
rewind
or
fast
forward
the
tape.
In the playback mode:
To
search
backward
or
forward.
In
the
still
playback
mode:
To
adjust
playback
speed
backward
or forward.
In
the
rewind
or
fast
forward
mode:
To
obtain
high
speed
picture.
RF OUT
To
connect
to
the
aerial
terminal
ona
TV
set.
Video
Playback
Channel
Selector
To
select
the
video
playback
channel.
AUDIO IN
To
connect
the
audio
cable
to
a
video
camera
or
another
video
recorder.
VIDEO IN
To
connect
the
video cable
to
a
video
camera
or
another
video
recorder.
AUDIO OUT
To
connect
the
audio
cable
to
a
TV
or
another
video
recorder.
VIDEO OUT
To
connect
the
video
cable
to
a
TV
or
another
video
recorder.
RF IN
To
connect
to
the
external
aerial.
TEST SIGNAL
The
test
signal
is
transmitted
on
channel
L
or
H.
Signal Ground Terminal
To
connect
the
Signal
Ground
Terminal
to
the
ground
to
reduce
the
noise
from
microphone
cable.
AC IN~
To
connect
to
the
main
Power
supply.
