Panasonic NV-VX55A - Charging the Battery

12

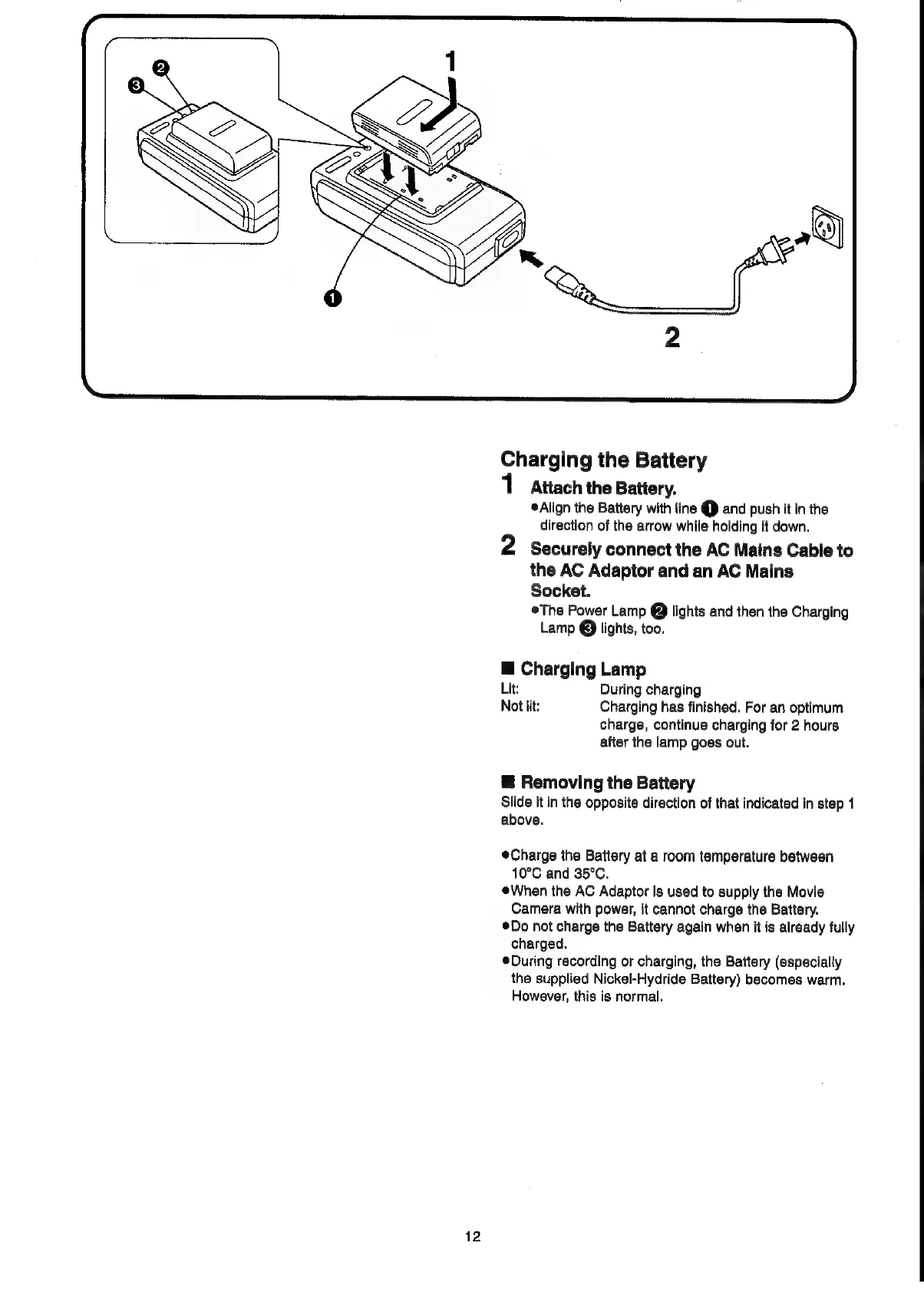

Charging the Battery
1
Attach the Battery.
®Align the Battery with line @ and push it in the
direction of the arrow while holding it down.
2 Securely connect the AC Mains Cable to
the AC Adaptor and an AC Mains
Socket.
©The Power Lamp @ lights and then the Charging
Lamp @ lights, too.
@ Charging Lamp
Lit: During charging
Not lit: Charging has finished. For an optimum
charge, continue charging for 2 hours
after the lamp goes out.
@ Removing the Battery
Slide it in the opposite direction of that indicated in step 1
above.
Charge the Battery at a room temperature between
10°C and 35°C.
When the AC Adaptor is used to supply the Movie
Camera with power, it cannot charge the Battery.
©Do not charge the Battery again when it is already fully
charged.
®During recording or charging, the Battery (especially
the supplied Nickel-Hydride Battery) becomes warm.
However, this is normal.
