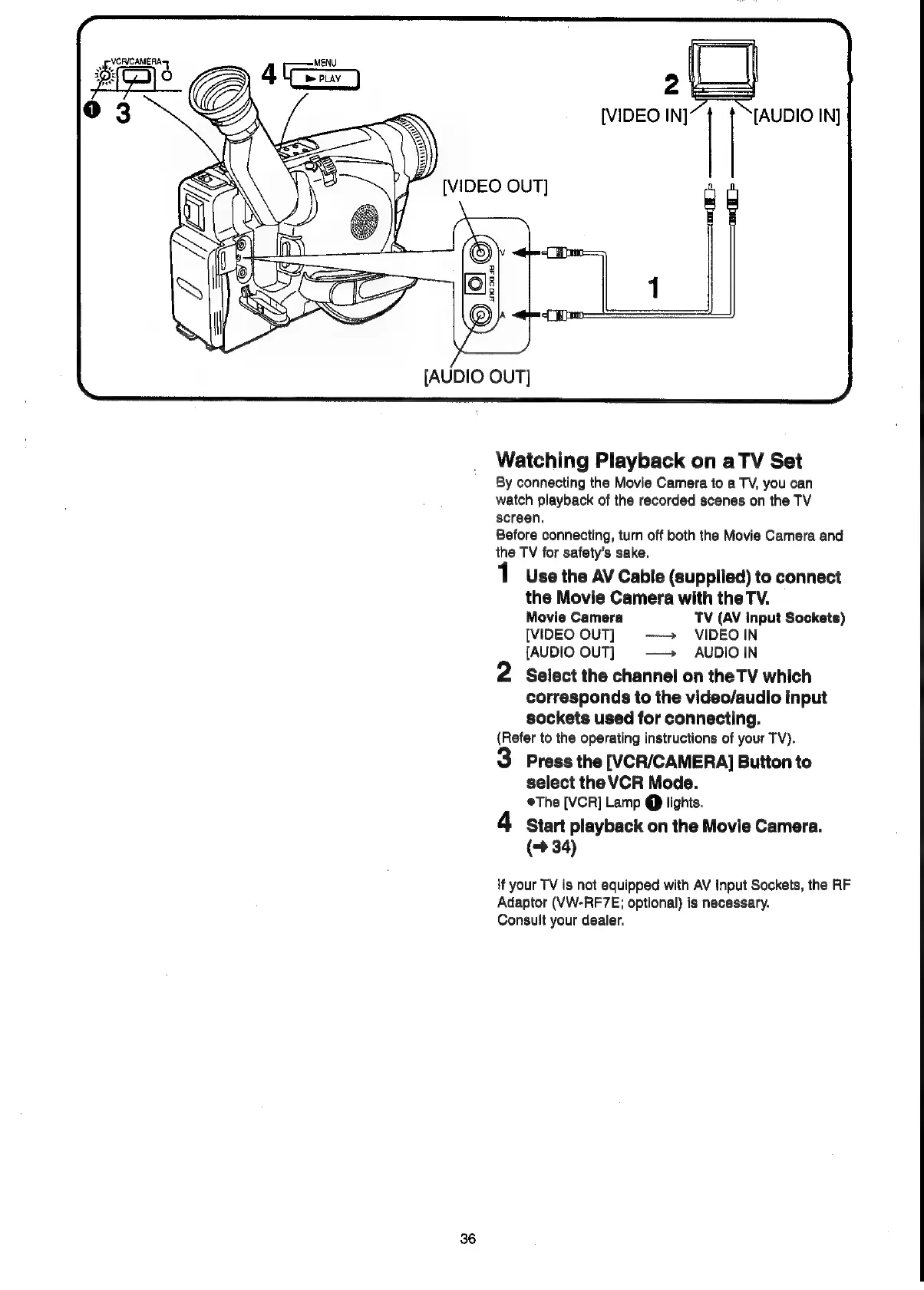

Watching Playback on a TV Set
By connecting the Movie Camera to a TV, you can
watch playback of the recorded scenes on the TV
screen,
Before connecting, turn off both the Movie Camera and
the TV for safety's sake.
Use the AV Cable (supplied) to connect
the Movie Camera with the TV.
Movie Camera TV (AV Input Sockets)
[VIDEO OUT] —— VIDEOIN
[AUDIO OUT] —~» AUDIOIN
2 Select the channel on the TV which
corresponds to the video/audio input
sockets used for connecting.
(Refer to the operating instructions of your TV).
Press the [VCR/CAMERA] Button to
select the VCR Mode.
©The [VCR] Lamp @ lights.
4 start playback on the Movie Camera.
(> 34)
If your TV is not equipped with AV Input Sockets, the RF
Adaptor (VW-RF7E; optional) is necessary.
Consult your dealer.
36
