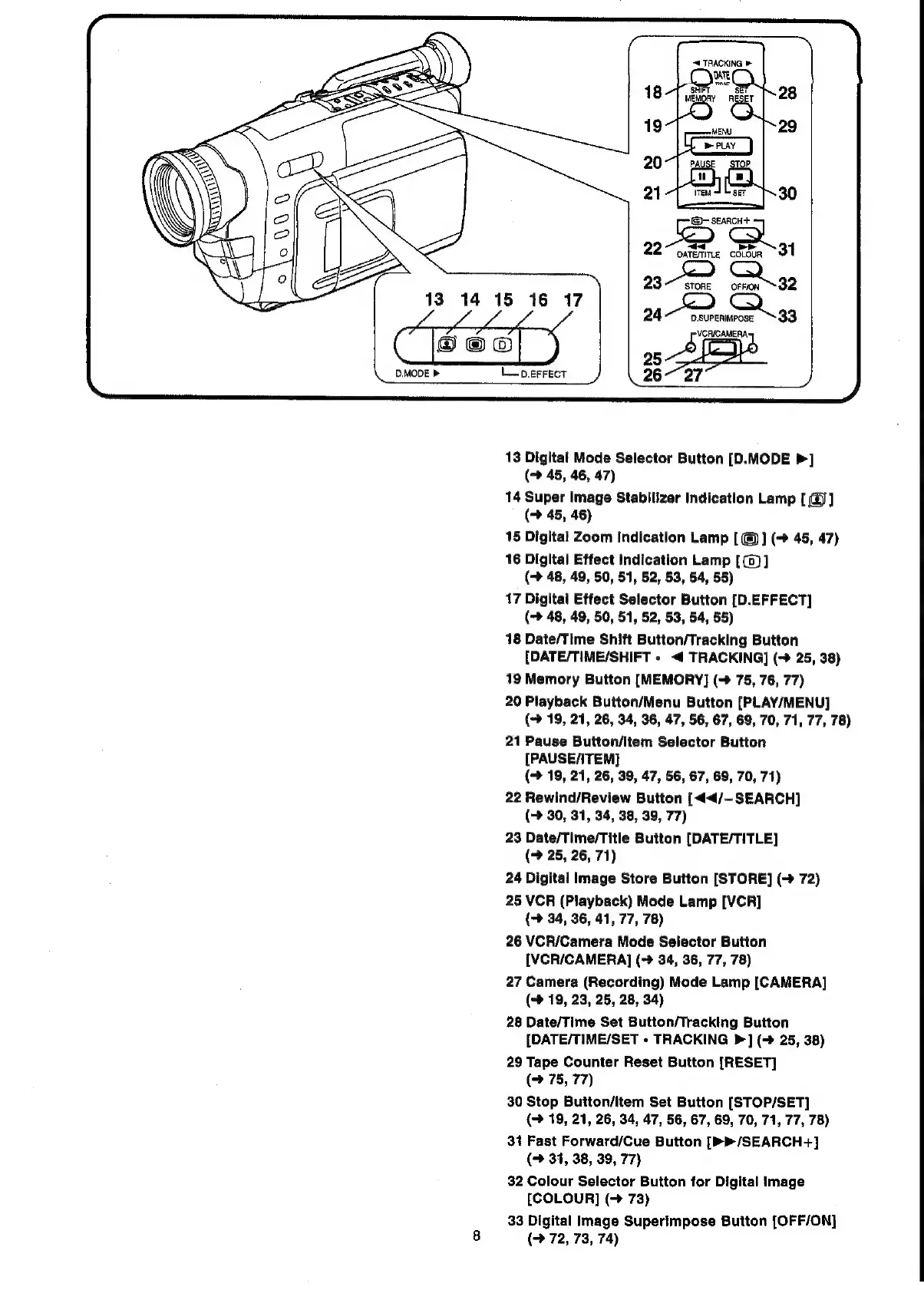

13 Digital Mode Selector Button [D.MODE >]
(-» 45, 46, 47)
14 Super Image Stabilizer Indication Lamp [ @]
(7 45, 46)
15 Digital Zoom Indication Lamp [@] (~ 45, 47)
16 Digital Effect Indication Lamp [(0)]
(> 48, 49, 50, 51, 52, 53, 54, 55)
17 Digital Effect Selector Button [D.EFFECT]
(> 48, 49, 50, 51, 52, 53, 54, 55)
18 Date/Time Shift Button/Tracking Button
[DATE/TIME/SHIFT « <4 TRACKING] (> 25, 38)
19 Memory Button [MEMORY] (- 75, 76, 77)
20 Playback Button/Menu Button [PLAY/MENU]
{+> 19, 21, 26, 34, 36, 47, 56, 67, 69, 70, 71, 77, 78)
21 Pause Button/Item Selector Button
[PAUSE/ITEM]
(+ 19, 21, 26, 39, 47, 56, 67, 69, 70, 71)
22 Rewind/Review Button [<4</-SEARCH]
(% 30, 31, 34, 38, 39, 77)
23 Date/Time/Title Button (DATE/TITLE]
(9 25, 26, 71)
24 Digital Image Store Button [STORE] (> 72)
25 VCR (Playback) Mode Lamp [VCR]
(-> 34, 36, 41, 77, 78)
26 VCR/Camera Mode Selector Button
[VCR/ICAMERA] (~ 34, 36, 77, 78)
27 Camera (Recording) Mode Lamp [CAMERA]
(+ 19, 23, 25, 28, 34)
28 Date/Time Set Button/Tracking Button
[DATE/TIME/SET + TRACKING >] (-> 25, 38)
29 Tape Counter Reset Button [RESET]
(> 75, 77)
30 Stop Button/item Set Button [STOP/SET]
(> 19, 21, 26, 34, 47, 56, 67, 69, 70, 71, 77, 78)
31 Fast Forward/Cue Button [>/SEARCH+]
(> 31, 38, 39, 77)
32 Colour Selector Button for Digital Image
[COLOUR] (+ 73)
33 Digital Image Superimpose Button [OFF/ON]
(7 72, 73, 74)
