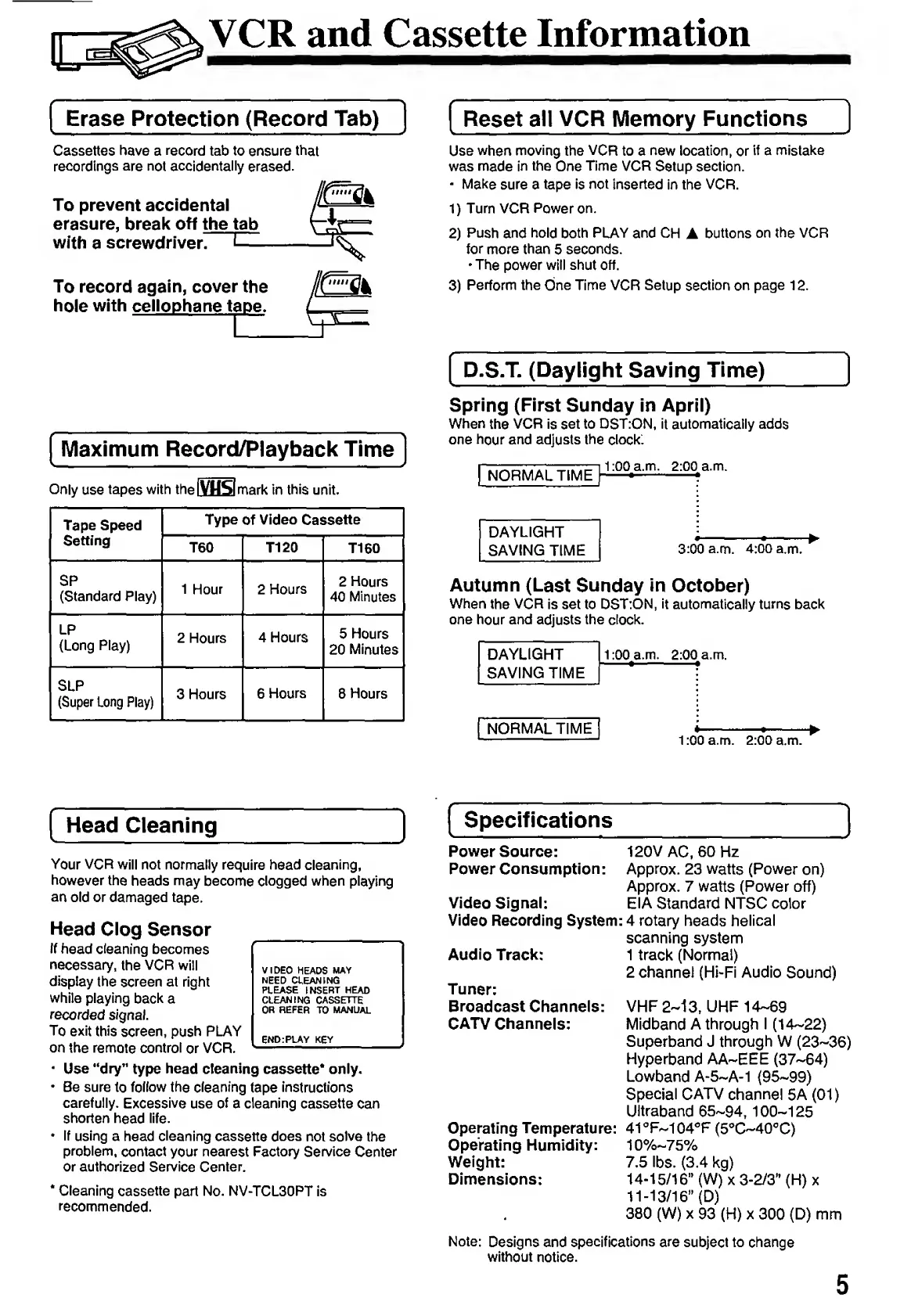

VCR and Cassette Information
Erase Protection (Record Tab)
Cassettes have a record tab to ensure that
recordings are not accidentally erased.
To prevent accidental h
erasure, break off the tab ^
with a screwdriver] EZ-
To record again, cover the k
hole with cellophane tape. L.
4 —
Reset all VCR Memory Functions
Use when moving the VCR to a new location, or if a mistake
was made in the One Time VCR Setup section.
• Make sure a tape is not inserted in the VCR.
1) Turn VCR Power on.
2) Push and hold both PLAY and CH A buttons on the VCR
for more than 5 seconds.
• The power will shut off.
3) Perform the One Time VCR Setup section on page 12.
Maximum Record/Playback Time
Only use tapes with the IVhSI m ark in this unit.
Tape Speed
Setting
SP
(Standard Play)
LP
(Long Play)
SLP
(Super Long Play)
Type of Video Cassette
1 Hour 2 Hours
2 Hours
40 Minutes
2 Hours 4 Hours 5 Hours
20 Minutes
3 Hours 6 Hours 8 Hours
D.S.T. (Daylight Saving Time)
Spring (First Sunday in April)
When the VCR is set to DST:ON, it automatically adds
one hour and adjusts the clock:
NORMAL TIME
DAYLIGHT
SAVING TIME
1:00 a.m. 2:00 a.m.
3:00 a.m. 4:00 a.m.
Autumn (Last Sunday in October)
When the VCR is set to DST:ON, it automatically turns back
one hour and adjusts the clock.
DAYLIGHT
SAVING TIME
NORMAL TIME
1:00 a.m. 2:00 a.m.
1:00 a.m. 2:00 a.m.
Head Cleaning _
Your VCR will not normally require head cleaning,
however the heads may become clogged when playing
an old or damaged tape.
Head Clog Sensor
If head cleaning becomes
necessary, the VCR will
display the screen at right
while playing back a
recorded signal.
To exit this screen, push PLAY
on the remote control or VCR.
• Use “dry” type head cleaning cassette* only.
• Be sure to follow the cleaning tape instructions
carefully. Excessive use of a cleaning cassette can
shorten head life.
* If using a head cleaning cassette does not solve the
problem, contact your nearest Factory Service Center
or authorized Service Center.
* Cleaning cassette part No. NV-TCL30PT is
recommended.
[ Specifications _
Power Source: 120V AC, 60 Hz
Power Consumption: Approx. 23 watts (Power on)
Approx. 7 watts (Power off)
Video Signal: El A Standard NTSC color
Video Recording System: 4 rotary heads helical
scanning system
Audio Track: 1 track (Normal)
2 channel (Hi-Fi Audio Sound)
Tuner:
Broadcast Channels: VHF 2-13, UHF 14-69
CATV Channels: Midband A through I (14-22)
Superband J through W (23-36)
Hyperband AA-EEE (37-64)
Lowband A-5-A-1 (95-99)
Special CATV channel 5A (01)
Ultraband 65-94, 100-125
Operating Temperature: 41°F~104°F (5°C-40°C)
Operating Humidity: 10%~75%
Weight: 7.5 lbs. (3.4 kg)
Dimensions: 14-15/16” (W) x 3-2/3” (H) x
11-13/16” (D)
380 (W) x 93 (H) x 300 (D) mm
Note: Designs and specifications are subject to change
without notice.
5
