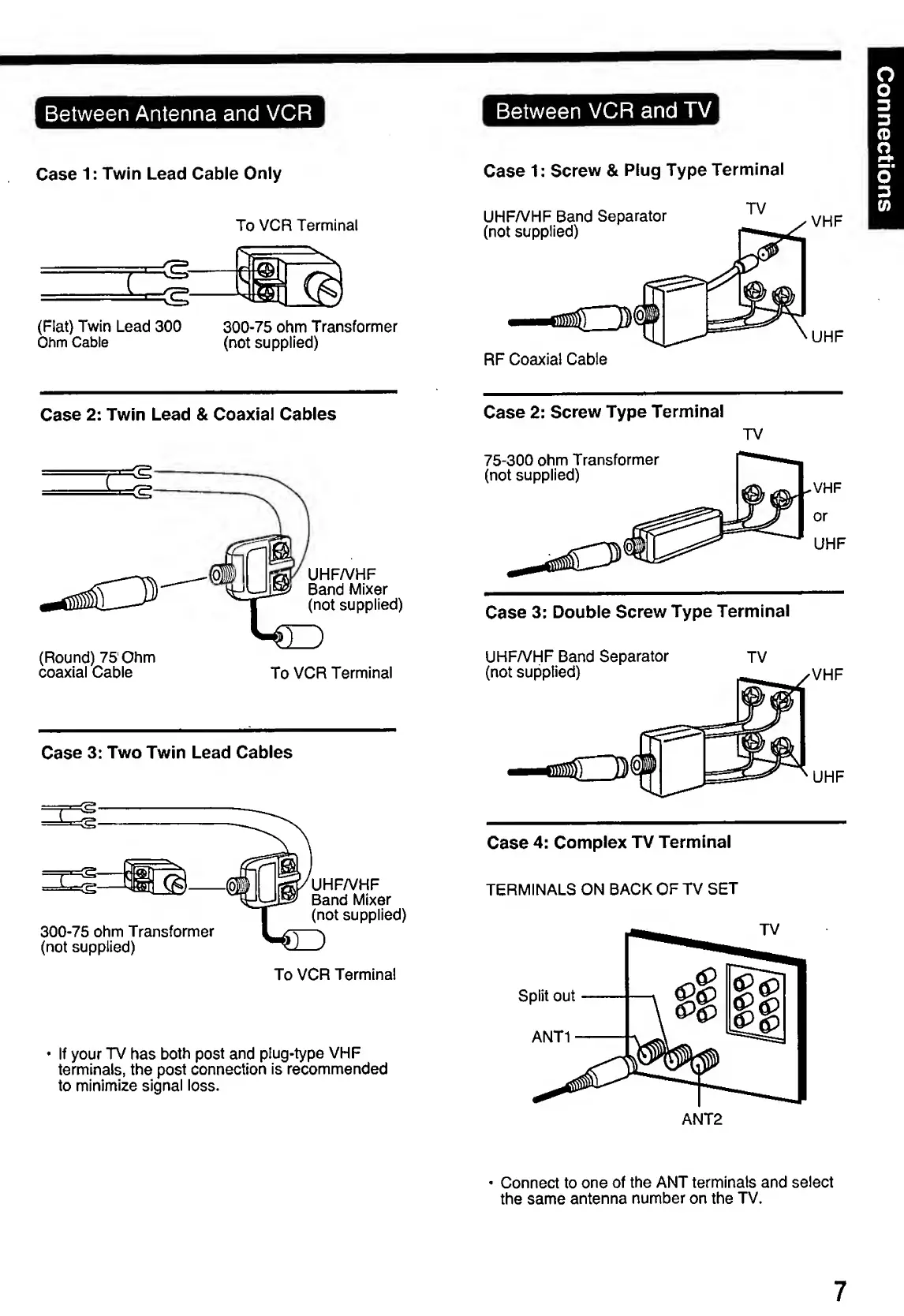

Panasonic Omnivision PV-7451 - Connections; Antenna to VCR Connections; VCR to TV Connections

Between Antenna and VCR
Between VCR and TV
Case 1: Twin Lead Cable Only
Case 1: Screw & Plug Type Terminal
To VCR Terminal
(Fiat) Twin Lead 300 300-75 ohm Transformer
Ohm Cable (not supplied)
UHF/VHF Band Separator
(not supplied)
—c rfi" B
RF Coaxial Cable
Case 2: Twin Lead & Coaxial Cables
Case 2: Screw Type Terminal
(Round) 75' Ohm
coaxial Cable To VCR Terminal
Case 3: Two Twin Lead Cables
To VCR Terminal
• If your TV has both post and plug-type VHF
terminals, the post connection is recommended
to minimize signal loss.
Case 3: Double Screw Type Terminal
UHF/VHF Band Separator TV
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
T\/
ANT2
• Connect to one of the ANT terminals and select
the same antenna number on the TV.
7
Connections
