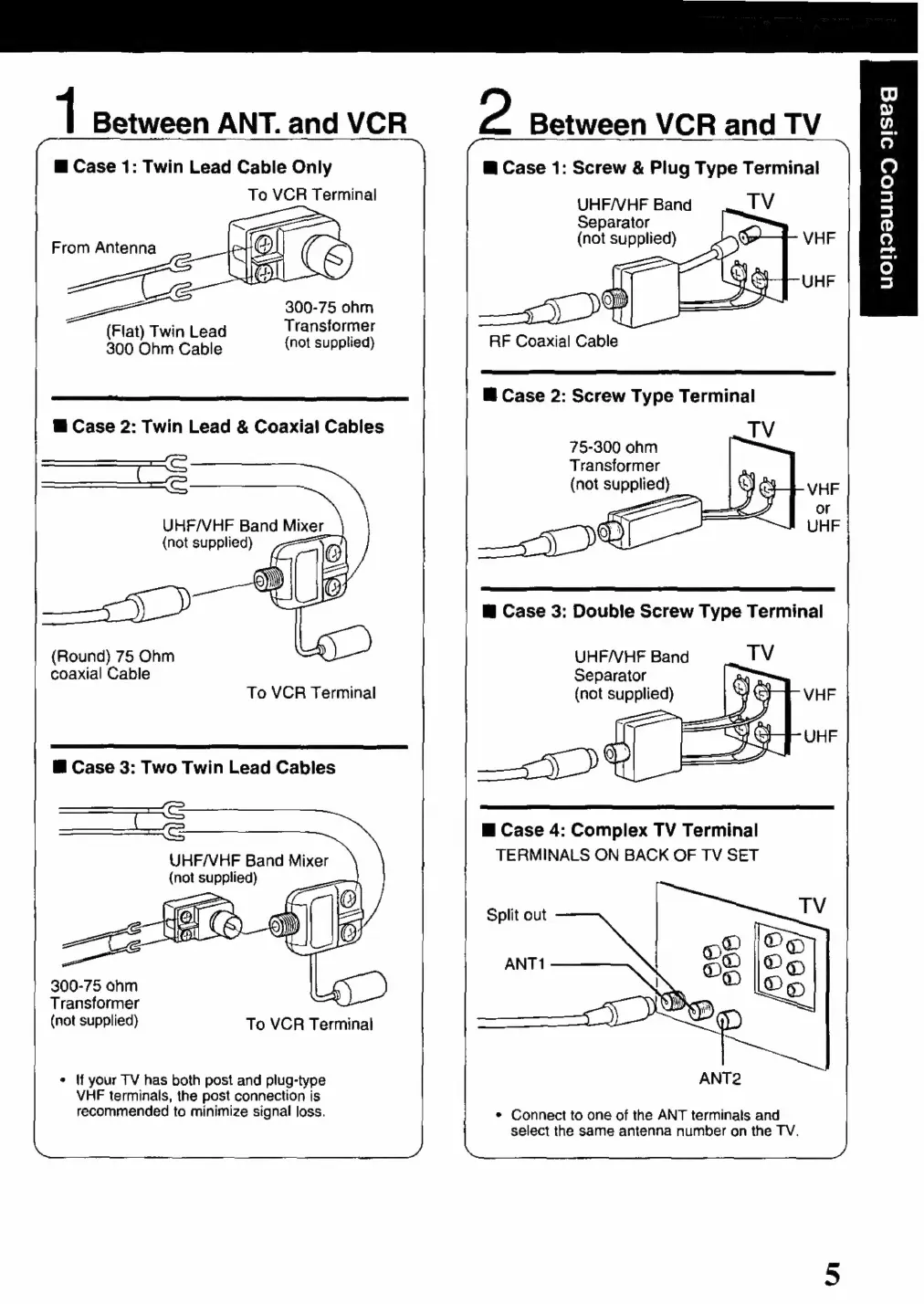

1 Between ANT. and VCR
@ Case 1: Twin Lead Cable Only
To VCR Terminal
From Antenna
a
300-75
ohm
(Flat)
Twin
Lead
Transformer
300
Ohm
Cable
(not
supplied)
E Case 2: Twin Lead & Coaxial Cables
an SE =
UHF/VHF Band Mixer
(not supplied)
(Round) 75 Ohm
coaxial Cable
To VCR Terminal
@ Case 3: Two Twin Lead Cables
— r
UHF/VHF Band Mixer
(not supplied)
300-75 ohm
Transformer
(not supplied} To VCR Terminal
» If your TV has both post and plug-type
VHF terminals, the post connection is
recommended to minimize signal loss.
2 Between VCR and TV
@ Case 1: Screw & Plug Type Terminal
UHF/VHF Band
Separator
(not supplied)
RF Coaxial Cable
B Case 2: Screw Type Terminal
75-300 ohm
Transformer
(not supplied}
a
UHF/VHF Band
Separator
(not supplied)
E Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Split out
ANT1
+ Connect to one of the ANT terminals and
select the same antenna number on the TV.
UOIJD3UUOD DISPQ
