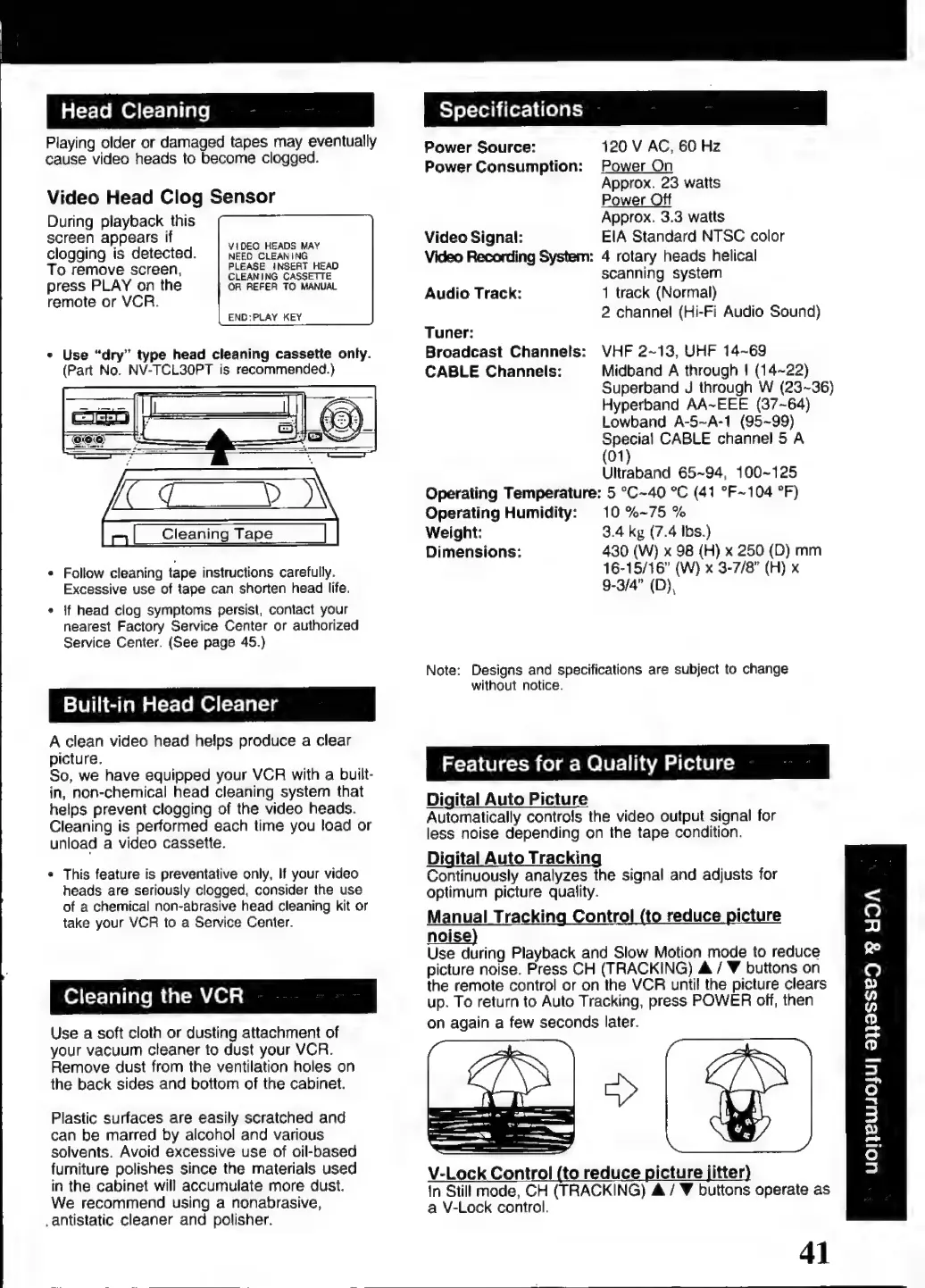

Head Cleaning
Playing older or damaged tapes may eventually
cause video heads to become clogged.
Video Head Clog Sensor
During playback this
screen appears if
clogging is detected.
To remove screen,
press PLAY on the
remote or VCR.
VIDEO HEADS MAY
NEED CLEANING
PLEASE INSERT HEAD
CLEANING CASSETTE
OR REFER TO MANUAL
END:PLAY KEY
+ Use “dry” type head cleaning cassette only.
(Part No. NV-TCL30PT is recommended.)
|
IC ODA
Follow cleaning tape instructions carefully.
Excessive use of tape can shorten head life.
if head clog symptoms persist, contact your
nearest Factory Service Center or authorized
Service Center. (See page 45.)
Built-in Head Cleaner
A clean video head helps produce a clear
picture.
So, we have equipped your VCR with a built-
in, non-chemical head cleaning system that
helps prevent clogging of the video heads.
Cleaning is performed each time you load or
unload a video cassette.
¢ This feature is preventative only, If your video
heads are seriously clogged, consider the use
of a chemical non-abrasive head cleaning kit or
take your VCR to a Service Center.
Cleaning the VCR
Use a soft cloth or dusting attachment of
your vacuum cleaner to dust your VCR.
Remove dust from the ventilation holes on
the back sides and bottom of the cabinet.
Plastic surfaces are easily scratched and
can be marred by alcohol and various
solvents. Avoid excessive use of oil-based
furniture polishes since the materials used
in the cabinet will accumulate more dust.
We recommend using a nonabrasive,
„antistatic cleaner and polisher.
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Tuner:
Broadcast Channels:
CABLE Channels:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
Specifications
120 V AC, 60 Hz
Power On
Approx. 23 watts
Power Off
Approx. 3.3 watts
EIA Standard NTSC color
4 rotary heads helical
scanning system
1 track (Normal)
2 channel (Hi-Fi Audio Sound)
VHF 2~13, UHF 14-69
Midband A through | (14-22)
Superband J through W (23~36)
Hyperband AA~EEE (37~64)
Lowband A-5-A-1 (95-99)
Special CABLE channel 5 A
01
Sieben 65~94, 100~125
5 °C~40 °C (41 °F~104 °F)
10 %~75 %
3.4 kg (7.4 Ibs.)
430 (W) x 98 (H) x 250 (D) mm
16-15/16" (W) x 3-7/8” (H) x
9-3/4” (D),
Note: Designs and specifications are subject to change
without notice.
Features for a Quality Picture
Digital Auto Picture
Automatically controls the video output signal for
less noise depending on the tape condition.
Digital Auto Tracking
Continuously analyzes the signal and adjusts for
optimum picture quality.
Manual Tracking Control (to reduce picture
noise)
Use during Playback and Slow Motion mode to reduce
picture noise. Press CH (TRACKING) A / Y buttons on
the remote control or on
up. To return to Auto Tra
on again a few seconds
V-Lock Control (to reduce
in Still mode, CH (TRACKING) A / Y buttons operate as
a V-Lock control.
the VCR until the picture clears
cking, press POWER off, then
later.
<
O
P)
Qo
e
y
Y
MN
D
=
D
3
pen
je]
=
3
w
=
2)
=
icture jitter
41
