Panasonic Omnivision PV-V4620 User Manual

$

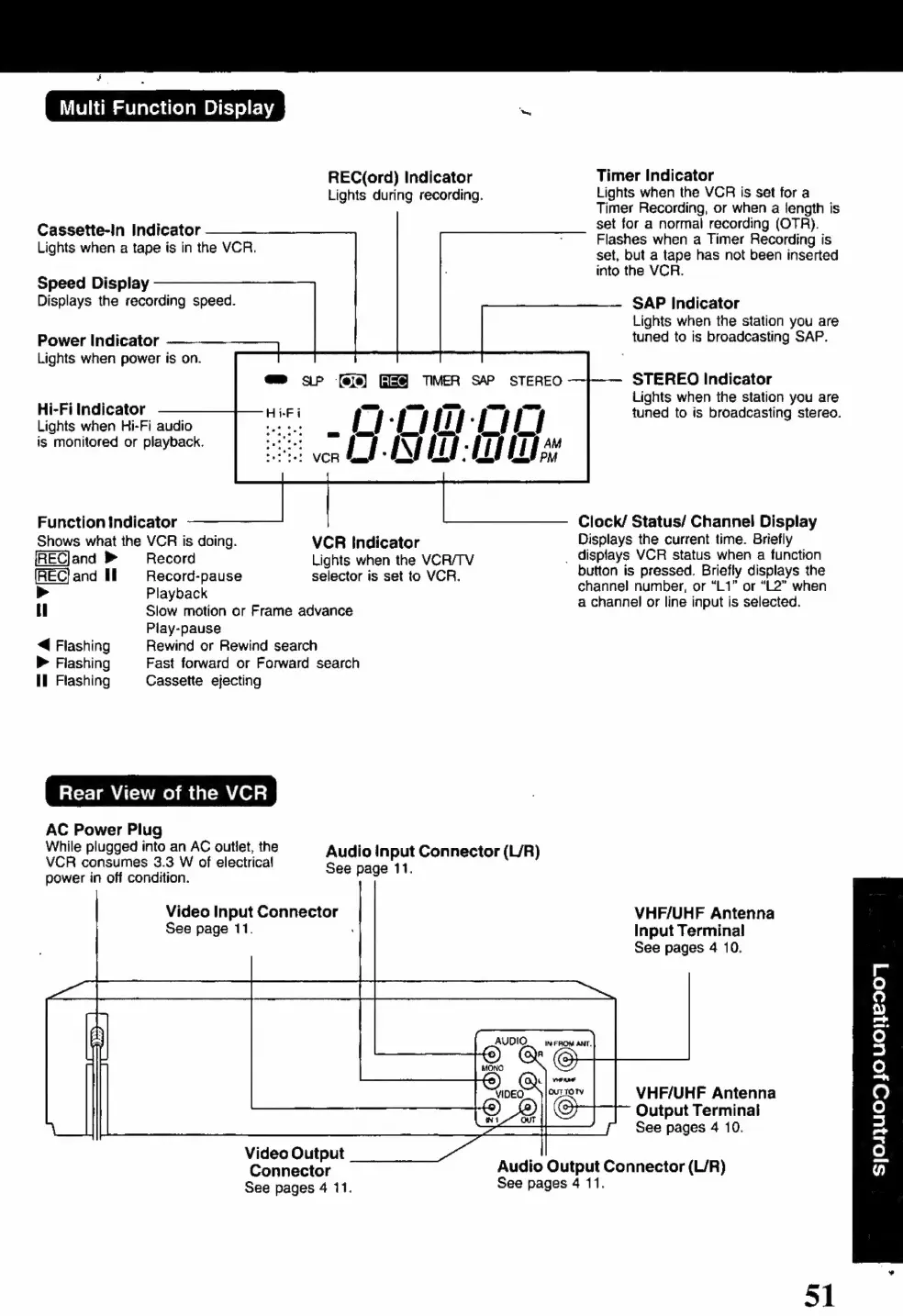

Multi Function Display X
REC(ord) Indicator Timer Indicator
Lights during recording. Lights when the VCR is set for a
Timer Recording, or when a length is
set for a normal recording (OTR).
Flashes when a Timer Recording is
set, but a tape has not been inserted
into the VCR.
SAP Indicator
Lights when the station you are
tuned to is broadcasting SAP.
Cassette-In Indicator
Lights when a tape is in the VCR.
Speed Display
Displays the recording speed.
Power Indicator
Lights when power is on.
STEREO Indicator
Lights when the station you are
a ap E TIMER SAP STEREO
“Croat
oes zH Ni: E
Hi-Fi Indicator
Lights when Hi-Fi audio
is monitored or playback.
Function indicator Clock/ Status/ Channel Display
Shows what the VCR is doing. VCR Indicator Displays the current time. Briefly —
¡REC]and ® Record Lights when the VCR/TV . displays VCR status when a function
(REC) and Il Record-pause selector is set to VCR. button is pressed. Briefly displays the
> Playback channel number, or “L1” or “L2” when
T Slow motion or Frame advance a channel or line input is selected.
Piay-pause
@ Flashing Rewind or Rewind search
» Flashing Fast forward or Forward search
II Flashing Cassette ejecting
Rear View of the VCR
AC Power Plug
While plugged into an AC outlet, the iol R
VCR consumes 3.3 W of electrical Sees e Connector (L/R)
power in off condition. :
VHF/UHF Antenna
Input Terminal
See pages 4 10.
Video Input Connector
See page 11.
VHF/UHF Antenna
Output Terminal
See pages 4 10.
Video Output :
Connector Audio Output Connector (L/R)
See
pages
4
11.
See
pages
4
11.
tuned to is broadcasting stereo.
=
O
Ò
S
>.
©
5
O
cm,
QO
e)
5
zi
9
7)
