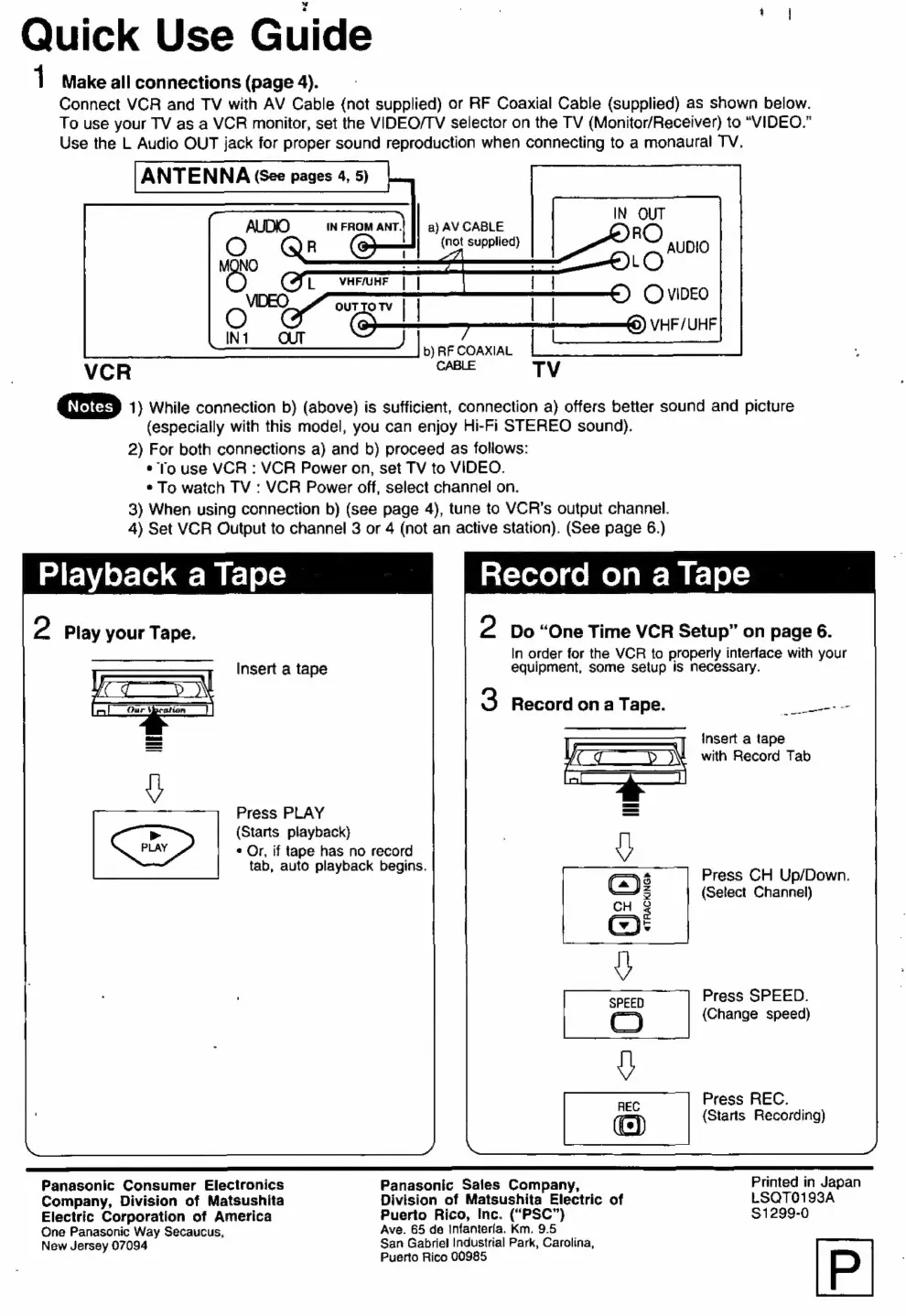

Make all connections (page 4).
Connect VCR and TV with AV Cable (not supplied) or RF Coaxial Cable (supplied) as shown below.
To use your TV as a VCR monitor, set the VIDEO/TV selector on the TV (Monitor/Receiver) to “VIDEO.”
Use the L Audio OUT jack for proper sound reproduction when connecting to a monaural TV.
ANTENNA Gee pages 4, 5)
IN FROM ANT. a) AV CABLE
(not supplied)
b) RF COAXIAL
CABLE
VCR TV
Ma 1) While connection b) (above) is sufficient, connection a) offers better sound and picture
(especially with this model, you can enjoy Hi-Fi STEREO sound).
2) For both connections a) and b) proceed as follows:
* To use VCR : VCR Power on, set TV to VIDEO.
* To watch TV : VCR Power off, select channel on.
3) When using connection b) (see page 4), tune to VCR's output channel.
4) Set VCR Output to channel 3 or 4 (not an active station). (See page 6.)
Playback a Tape Record on a Tape
Do “One Time VCR Setup” on page 6.
In order for the VCR to properly interface with your
equipment, some setup is necessary.
2 Play your Tape.
Insert a tape
Record on a Tape.
insert a tape
with Record Tab
Press PLAY
(Starts playback)
¢ Or, if tape has no record
g
tab, auto playback begins.
Press CH Up/Down.
(Select Channel)
a
o
Z
x
o
a
=
v
Press SPEED.
(Change speed)
Press REC.
(Starts Recording)
