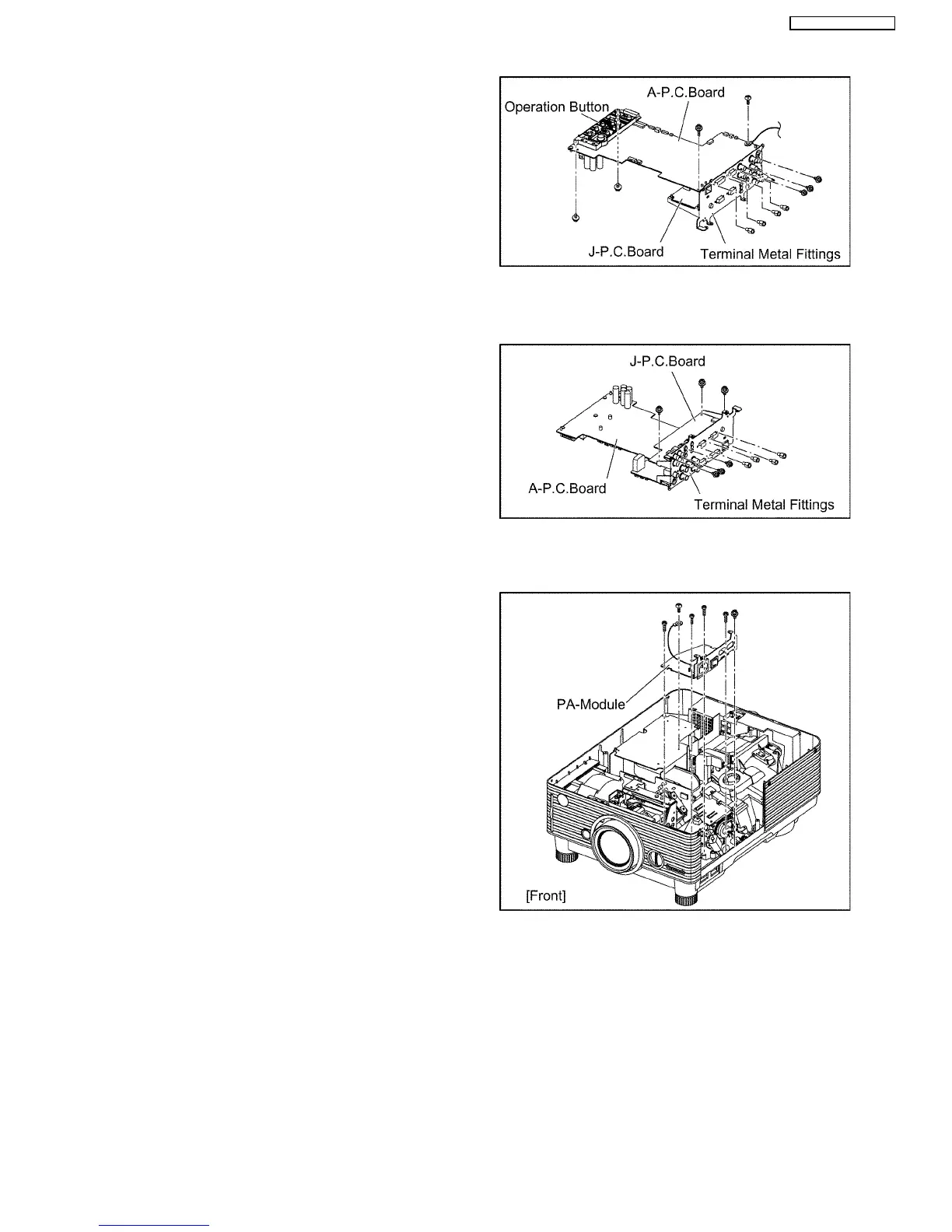

(5) Pull out the flexible cable connected to the J-P.C.Board. (The
reverse side of A-P.C.Board)
(6) Unscrew the 9 screws and remove the A-P.C.Board.
(7) Unscrew the 2 screws and remove the operation button.
11.4. Removal of J-P.C.Board
(1) Remove the A-P.C.Board block according to the steps 1 through
5 in the section 11.3. "Removal of A-P.C.Board".
(2) Pull out the flexible cable connected to the A-P.C.Board.
(3) Unscrew the 10 screws and remove the J-P.C.Board.
11.5. Removal of PA-Module
(1) Remove the A-P.C.Board block according to the steps 1 through
5 in the section 11.3. "Removal of A-P.C.Board".
(2) Unscrew the 1 screw and remove the grounding terminal.
(3) Unscrew the 5 screws and remove the PA-Module.
29
PT-D3500U / PT-D3500E
