Panasonic PT-D3500U

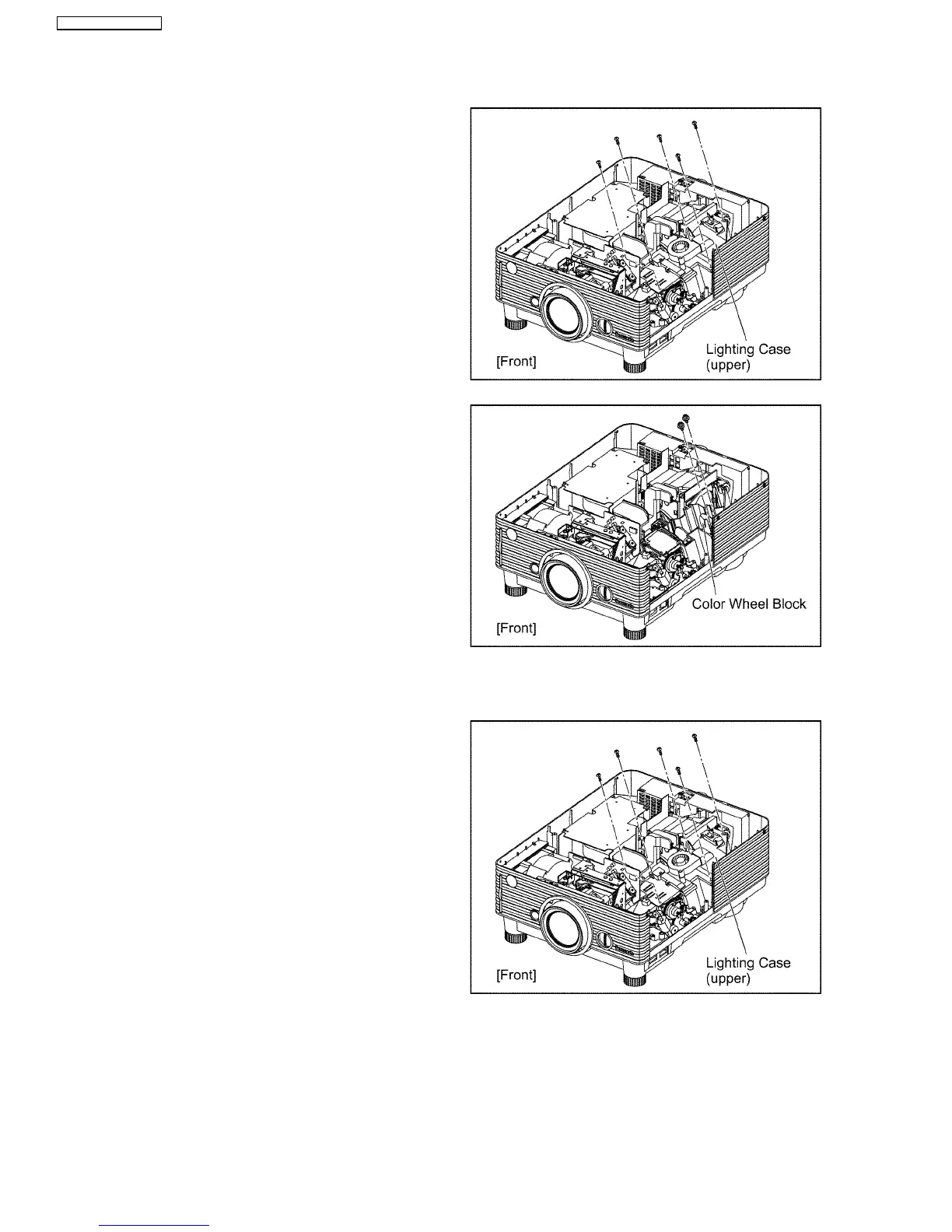

11.13. Removal of Color Wheel Block (Lighting Block)
(1) Remove the A-P.C.Board block according to the steps 1 through
5 in the section 11.3. "Removal of A-P.C.Board".
(2) Unscrew the 5 screws and remove the lighting case (upper).
(3) Disconnect flexible cable from/to the color wheel block.
(4) Unscrew the 2 screws and remove the color wheel block.
Note:
· If the color wheel becomes dirty or damaged, the
performance may be deteriorated. Work carefully
enough in handling.
11.14. Removal of Mechanical Shutter Motor Unit
(1) Remove the A-P.C.Board block according to the steps 1 through
5 in the section 11.3. "Removal of A-P.C.Board".
(2) Unscrew the 5 screws and remove the lighting case (upper).
36
PT-D3500U / PT-D3500E
