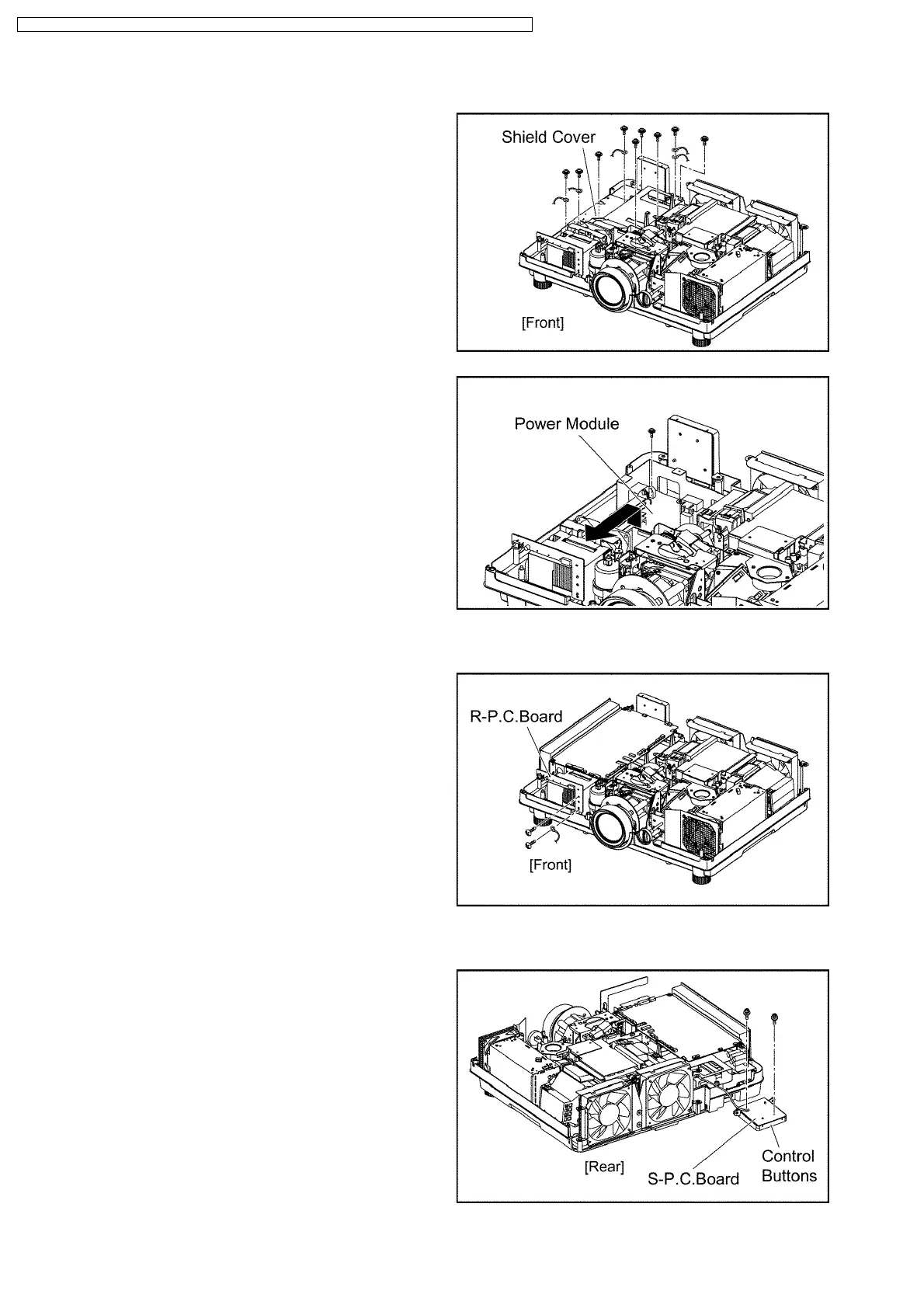

11.6. Removal of Power Module
(1) Remove the A-P.C.Board block according to the steps 1 through
3 in the section 11.3. "Removal of A-P.C.Board".
(2) Unscrew the 3 screws and release the 3 grounding terminals.
(3) Unscrew the 6 screws and remove the shield cover.
(4) Unscrew the 1 screw and remove the power module.
11.7. Removal of R-P.C.Board
(1) Remove the upper case according to the section 11.2. "Removal
of Upper Case".
(2) Unscrew the 2 screws and remove the R-P.C.Board.
11.8. Removal of S-P.C.Board
(1) Remove the upper case according to the section 11.2. "Removal
of Upper Case".
(2) Unscrew the 2 screws and remove the S-P.C.Board from the
control buttons.
