6. 2. System log data acquisition method
6. 2. 1. Equipment to be used
1. Computer : Use it for the collect of log data.
2. Communication cable : D-sub 9pin (male/female RS-232C straight)
［
］
Service software is downloaded from the projector service homepage.
6. 2. 2. Connection Preparations
Attention:
Computer, please set so as not to standby or shutdown.
6. 2. 3. Acquisition of log data

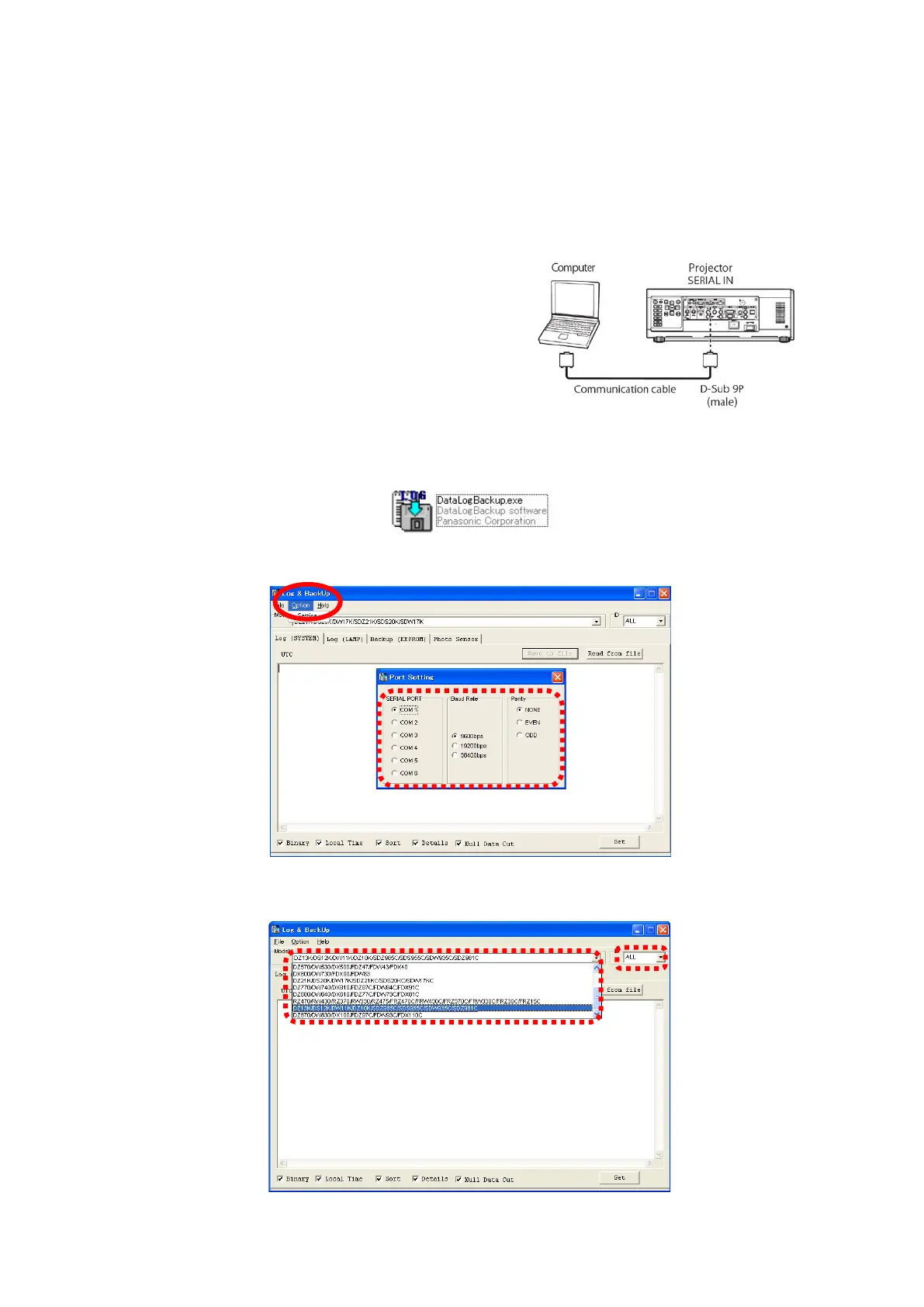

1. Switch the projector to "Normal-Standby" mode (POWER indicator is Lighting in red).
2. Start up service software
［
］
→
" Setting" and set Serial Port of the computer, Baud Rate and Parity.
4. Select a model number and ID.
2. Connect the serial terminals on the projector and
the PC by using a communication cable.
1. Confirm and make a note of "Projector ID" and
"Transmission speed", "Parity setting".
