Panasonic PT-DZ10KU - Removal of Analysis Mirror (Assy); Removal of Terminal Cover (S-P.C.board)

DIS-11

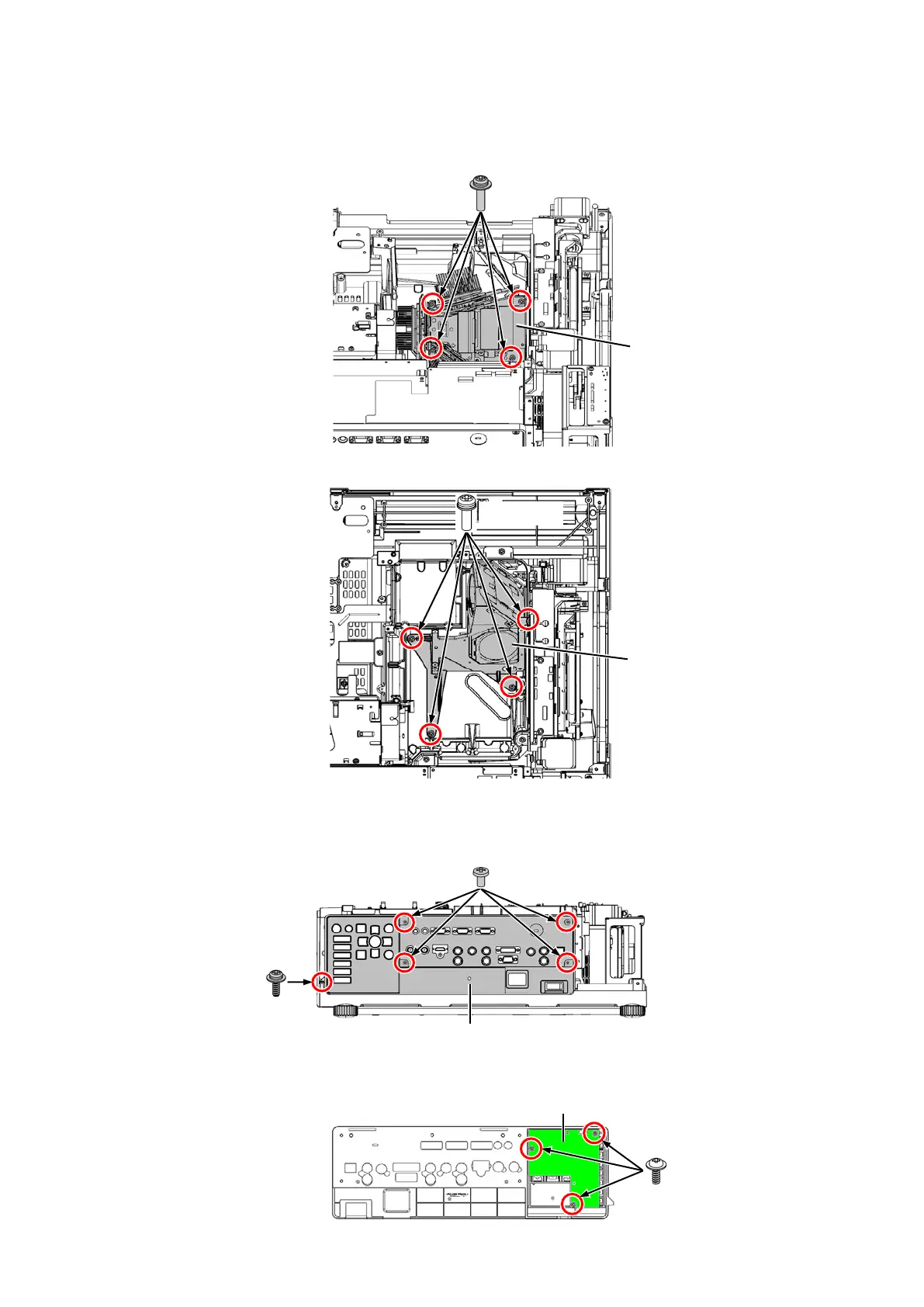

2. 8. Removal of Analysis Mirror (Assy)
1. Remove the Analysis Block according to the steps 1 through 5 in the section 2.6. "Removal of Analysis Block /
Synthesis Block / Synthetic Mirror".
2. Unscrew the 4 screws and remove the DMD Block.
・Unscrew the 4 screws and remove the Analysis Mirror (Assy).
2. 9. Removal of Terminal Cover (S-P.C.Board)
1. Remove the Upper Case according to the section 2.3. "Removal of Upper Case".
2. Unscrew the 5 screws and remove the Terminal Cover.
・Unscrew the 3 screws and remove the S-P.C.Board.
DMD Block
XYN3+F12FJK
XYN4+J12FJ
Analysis Mirror (Assy)
Terminal Cover
XSB3+6FJK
XYC3+FG10FJK
S-P.C.Board
XTW3+8PFJ
