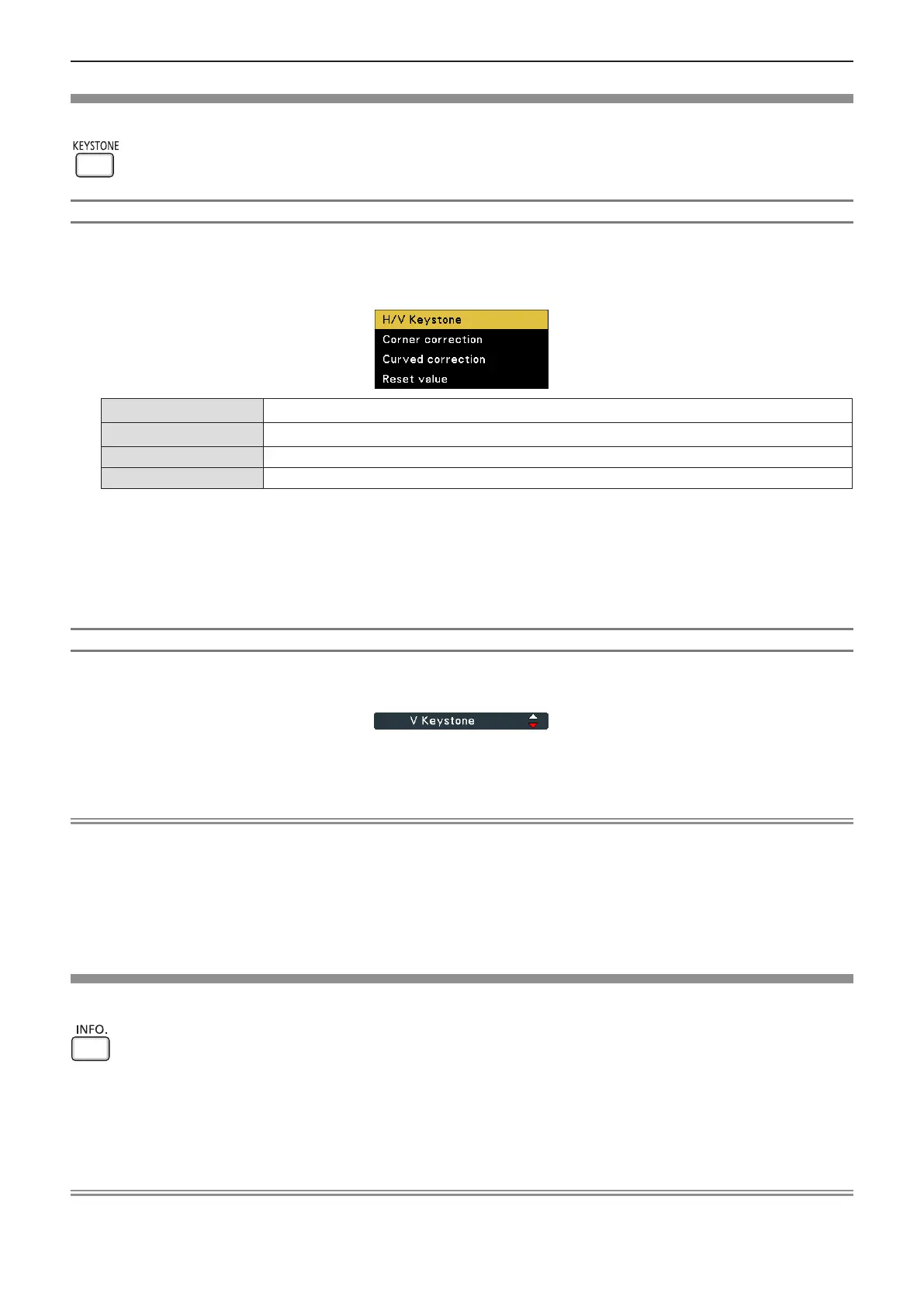

Using the screen adjustment function
You can correct the trapezoidal distortion and the curved distortion of the projected image.
button
For PT-LW375D, PT-LW335D, PT-LB425D, PT-LB425T, PT-LB385D, PT-LB385T, LB355D and PT-LB355T
1) Press the <KEYSTONE> button on the remote control.
f The selection screen of screen adjustment function is displayed.
f You can also press the <KEYSTONE> button on the control panel.
[H/V Keystone]
Select when the trapezoid of the projected image is distorted.
[Corner correction]
Select when the four corners of the projected image are distorted.
[Curved correction]
Select when the linearity is not uniform or the projected image is curved distortion.
[Reset value]
Return all adjusted values of the screen adjustment function to the factory default values.
2) Press as to select [H/V Keystone], [Corner correction], or [Curved correction].
3) Press the <ENTER> button.
f The individual adjustment screen of the selected item is displayed.
4) Press asqw to adjust.
For PT-LB305D
1) Press the <KEYSTONE> button on the remote control.
f The [V Keystone] screen is displayed.
2) Press as to adjust.
f When the [V Keystone] screen is displayed press the <KEYSTONE> button again, the corrected value will be
canceled.
Note
f For more details, refer to the [Expand] menu → [Keystone] (x page 62).
f Press the <KEYSTONE> button on the control panel or on the remote control when the [H/V Keystone], [Corner
correction] or [Curved correction] individual adjustment screen is displaying, the individual adjustment screen will switch
as follows.
- [H/V Keystone] [Corner correction] (Upper left) [Corner correction] (Upper right) [Corner correction] (Lower right)
[Corner correction] (Lower left) [Curved correction X/Y Gain] [Curved correction X Offset] [Curved correction Y
Offset] [H/V Keystone] ...
Using the status function
Display the status of the projector.
button
1) Press the <INFO.> button on the remote control.
f The [Info.] screen is displayed.
2) Press the <INFO.> button again.
f The [Info.] screen disappears.
Note
f For more details, refer to the [Info.] menu (x page 76).
