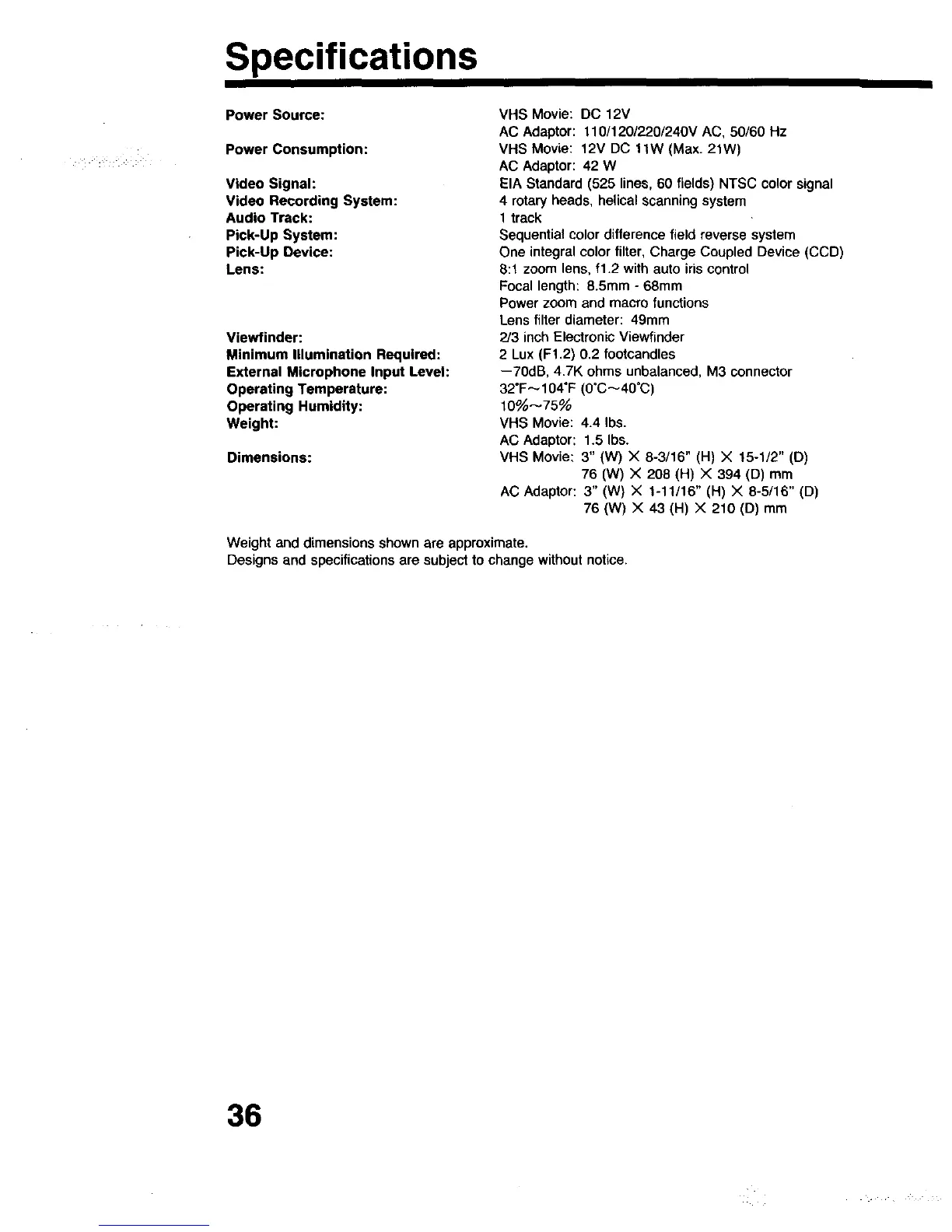

Specifications
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Pick-Up System:
Pick-Up Device:
Lens:
Viewfinder:
Minimum Illumination Required:
External Microphone Input Level:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
VHS Movie: DC 12V
AC Adaptor: 110/1201220/240V AC, 50/60 Hz
VHS Movie: 12V DC ttW (Max. 21W)
AC Adaptor: 42 W
EIA Standard (525 lines, 60 fields) NTSC color signal
4 rotary heads, helical scanning system
1 track
Sequential color difference field reverse system
One integral color filter, Charge Coupled Device (CCD)
6:1 zoom lens, fl.2 with auto iris control
Focal length: 8.5mm - 68mm
Power zoom and macro functions
Lens filter diameter: 49mm
2/3 inch Electronic Viewfinder
2 Lux (F1.2) 0.2 footcandles
--70dB, 4.7K ohms unbalanced, M3 connector
32"F_ 104"F (0"C_40°C)
10o./o_75%
VHS Movie: 4.4 Ibs.
AC Adaptor: 1.5 Ibs.
VHS Movie: 3" (W) X 8-3/16" (H) X !5-1/2" (D)
76 (W) X 208 (H) X 394 (D) mm
AC Adaptor: 3" (W) X 1-11/16" (H) X 8-5/16" (D)
76 (W) X 43 (H) X 210 (D) mm
Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.
