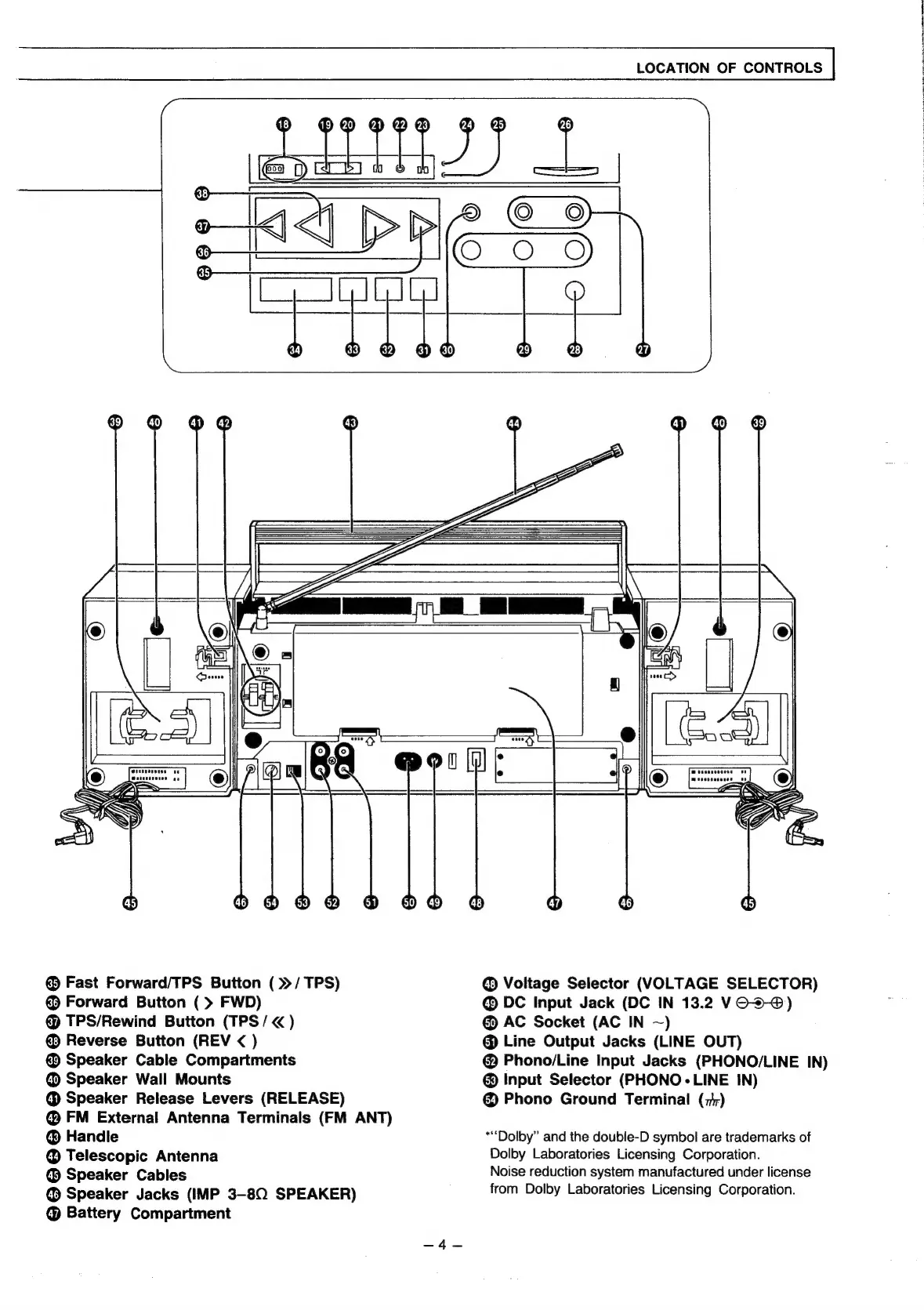

LOCATION OF CONTROLS
€® Fast Forward/TPS Button (> / TPS)
@ Forward Button (> FWD)
@ TPS/Rewind Button (TPS/ < )
@ Reverse Button (REV < )
@ Speaker Cable Compartments
@ Speaker Wall Mounts
@ Speaker Release Levers (RELEASE)
@ FM External Antenna Terminals (FM ANT)
® Handle
@ Telescopic Antenna
@® Speaker Cables
@ Speaker Jacks (IMP 3-80 SPEAKER)
@ Battery Compartment
@® Voltage Selector (VOLTAGE SELECTOR)
@® DC Input Jack (DC IN 13.2 VOs-@)
@ AC Socket (AC IN ~)
@ Line Output Jacks (LINE OUT)
@ Phono/Line Input Jacks (PHONO/LINE IN)
® Input Selector (PHONO-LINE IN)
@ Phono Ground Terminal (7/7)
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
Noise reduction system manufactured under license
from Dolby Laboratories Licensing Corporation.
