Panasonic S-28MM1E5 - Increasing the Fan Speed (280 Type Only)

31
H
H,M
M
L
30 35 40
(P a)
50
0
100
150
200
250
0
5
10
15
20
25
(mmAq)
NOTE
H : At shipment
Fig. 3-82

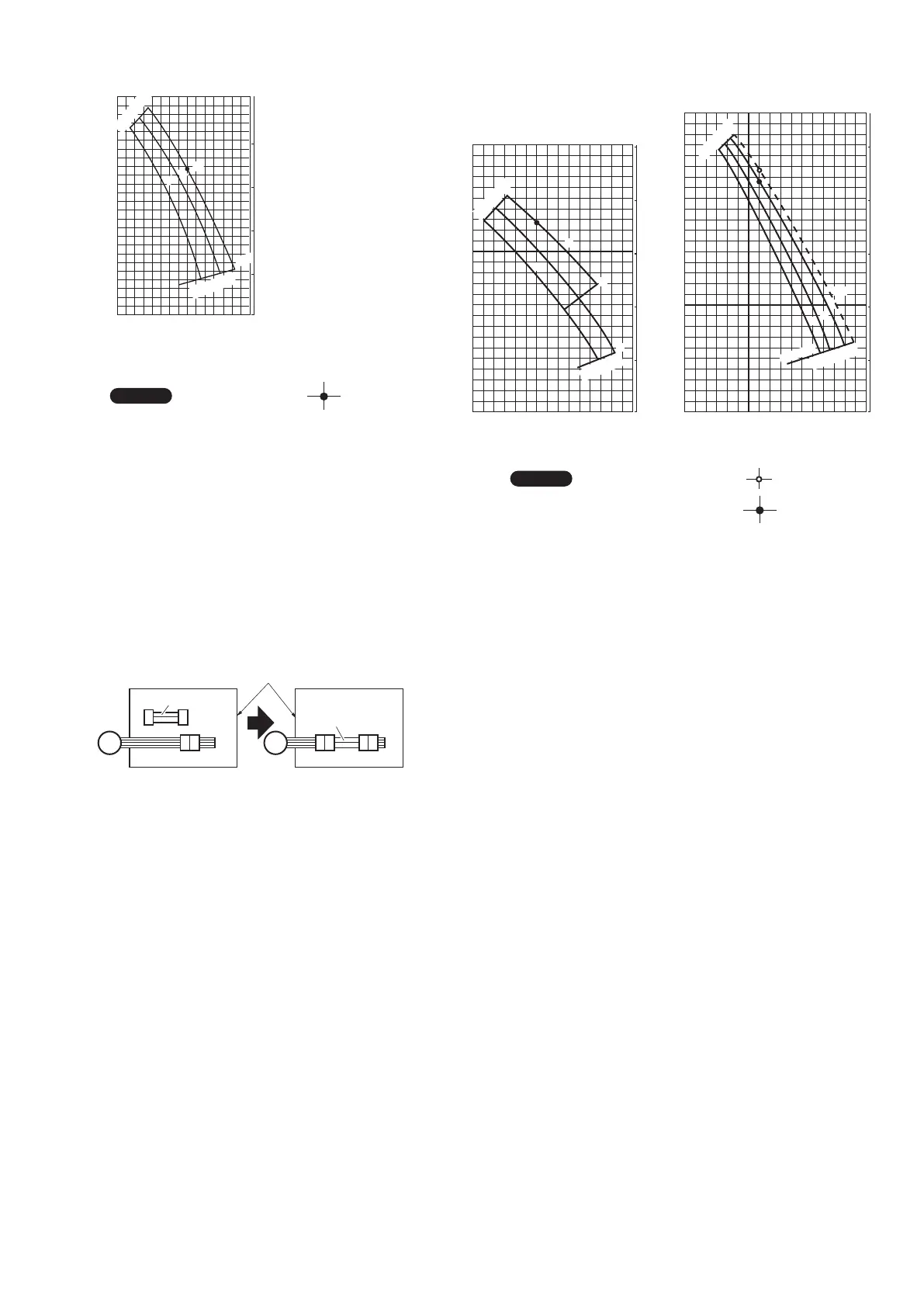

3-31. Increasing the Fan Speed (280 Type Only)
If external static pressure is too great (due to long extension
of ducts, for example), the air flow volume may drop too low at
each air outlet. This problem may be solved by increasing the
fan speed using the following procedure:
(1) Remove 4 screws on the electrical component box and
remove the cover plate.
(2) Disconnect the fan motor sockets in the box.
(3) Take out 2 booster cables from option carton box (sockets
at both ends).
(4) Securely connect the booster cable’s 2 sockets between
the disconnected fan motor sockets in step 2 as shown in
Fig. 3-83.
Fig. 3-83
(5) Place the cable neatly in the box and reinstall the cover
plate.
Indoor Fan Performance
60 70
0
50
0
5
10
15
20
25
150
200
250
50
100
M
(mmAq)
(Pa)
H
H
L
M
70 80 90
0
50
0
5
10
15
20
25
150
200
250
60
100
(mmAq)
(Pa)
H
HT
M, H, HT
M
L
NOTE
HT : Using booster cable
H : At shipment
Fig. 3-84
Fan motor socket
Electrical component box
(At shipment)
Fan
motor
(Booster cable installed)
Booster cable
Booster cable
140 Type
Air Flow (m
3
/minute)
External Static Pressure
Limit line
Limit line
224 Type
Air Flow (m
3
/minute)
External Static Pressure
Limit line
Limit line
280 Type
Air Flow (m
3
/minute)
External Static Pressure
Limit line
Limit line
