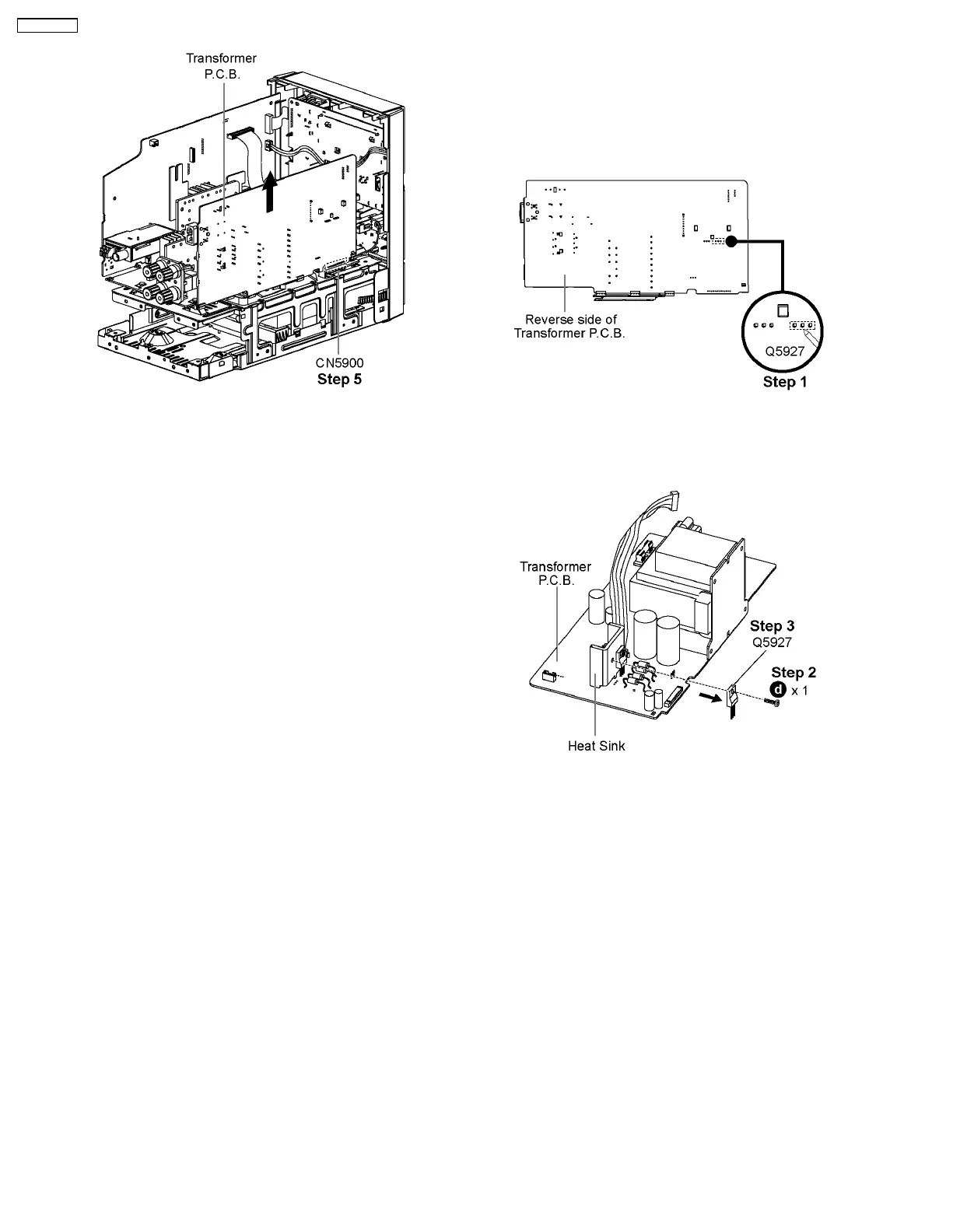

Step 5 : Lift up to remove Transformer P.C.B..
Note: During reassembling procedures, ensure the 8P
cable is properly dressed into the Support P.C.B..
8.13. Replacement of Transistor
(Q5927)
• Follow the (Step 1) - (Step 5) of Item 8.3
• Follow the (Step 1) - (Step 6) of Item 8.9
• Follow the (Step 1) - (Step 5) of Item 8.12
Step 1 : Desolder pins of Transistor (Q5927) on reverse side of
Transformer P.C.B..
Step 2 : Remove 1 screw.
Step 3 : Remove the Transistor (Q5927).
Caution : Avoid touching the Heat Sink during replacement
due to its hight temperature as it may lead to injuries/shock.
