Note: For description of the disassembly procedures, see
the Section 8

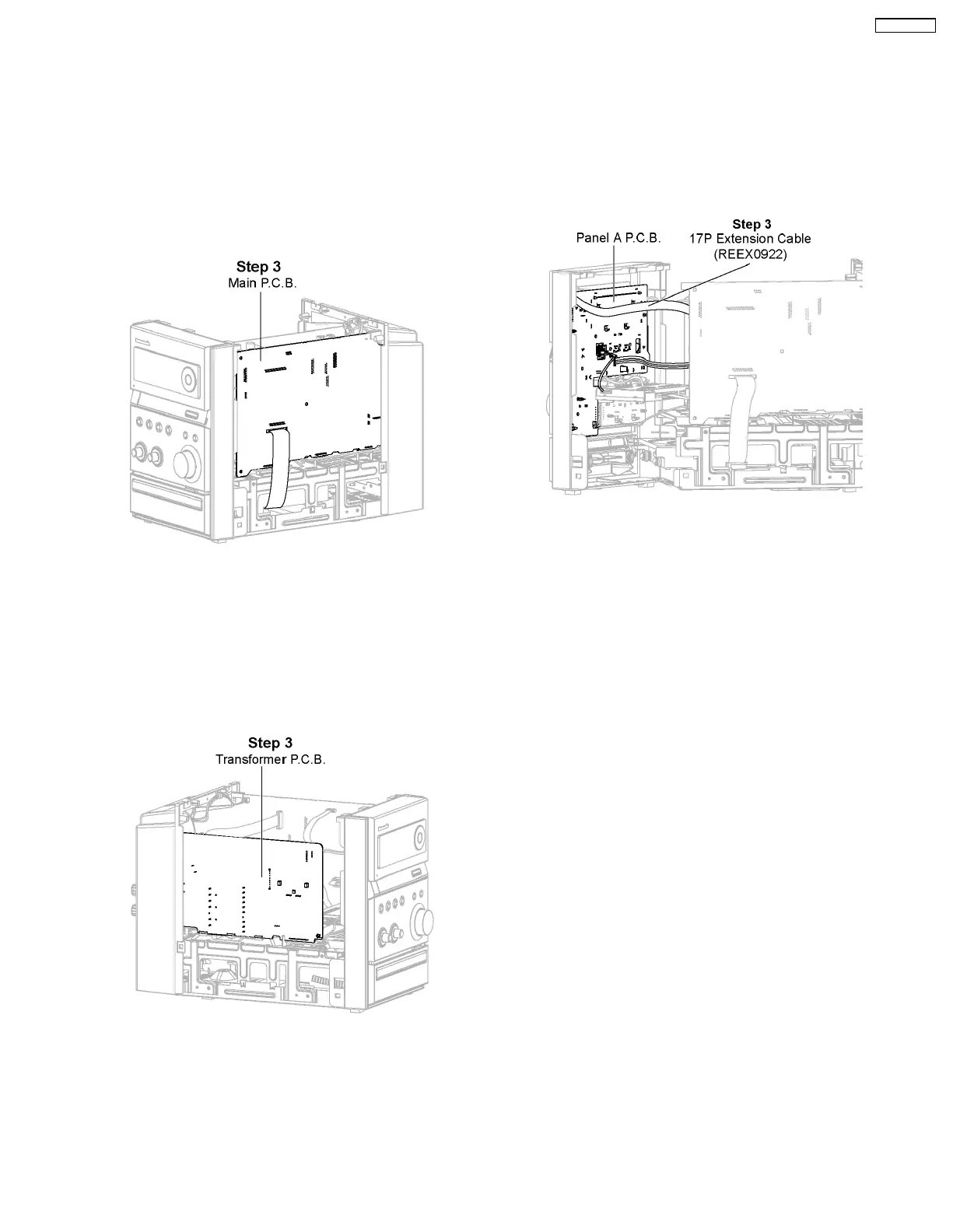

11.1. Checking & Repairing Main
P.C.B.
Step 1 : Remove Top Panel.
Step 2 : Remove Rear Panel and position it according to the
diagram show.
Step 3 : Main P.C.B. can be checked at its original position.
11.2. Checking & Repairing
Transformer P.C.B.
Step 1 : Remove Top Panel.
Step 2 : Remove Rear Panel and position it according to the
diagram show.
Step 3 : Transformer P.C.B. can be checked at its original
position.
11.3. Checking & Repairing Panel A
P.C.B.
Step 1 : Remove Top Panel.
Step 2 : Remove Front Panel and position it according to the
diagram show.
Step 3 : Attach extension cable REEX0922 (17P FFC cable
from CN6801 to CN2803).
