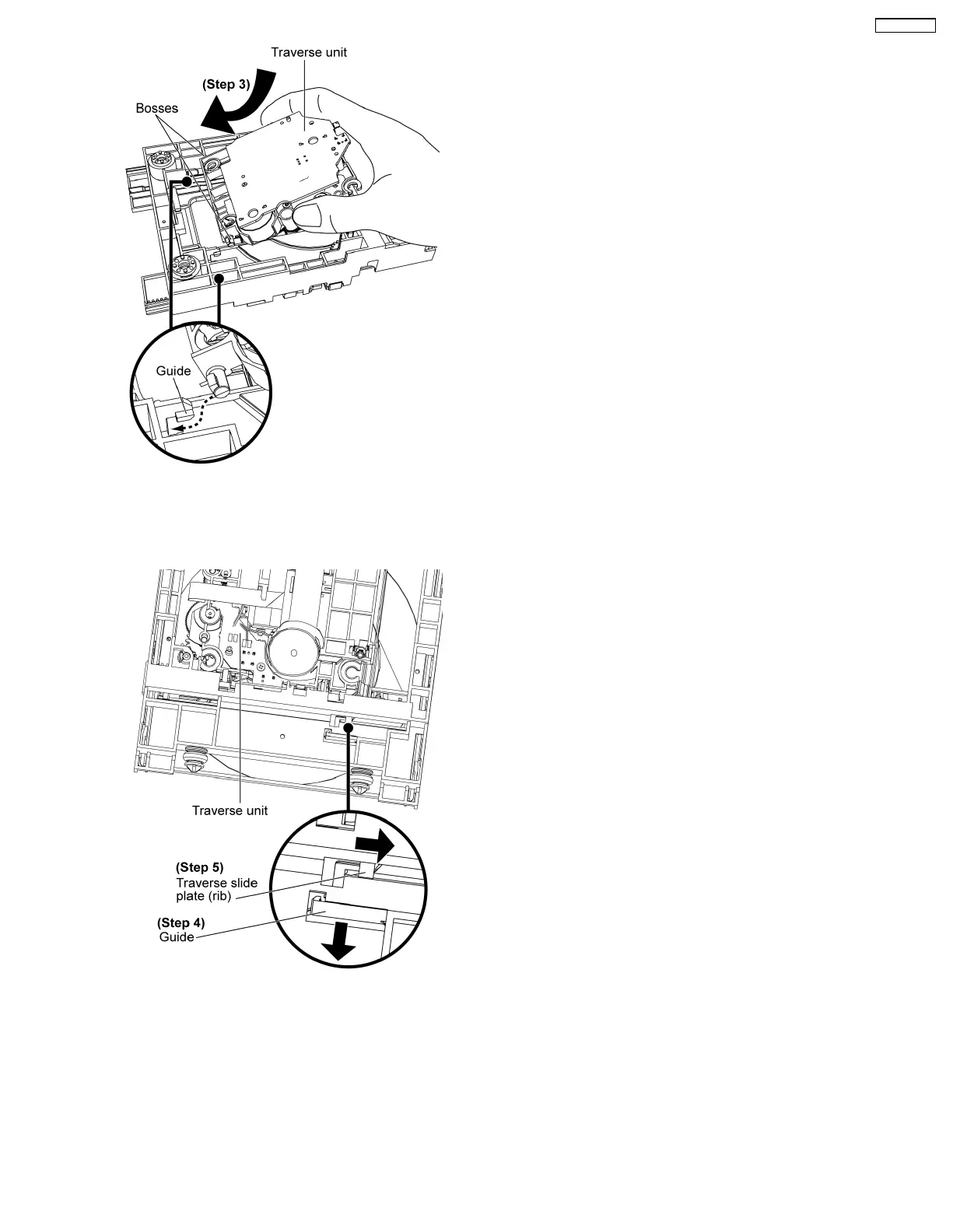

Step 3: Slot the traverse unit at approximately 45° into the
mecha chassis as arrow shown.
Note: Ensure the bosses fix exactly onto the guides.
Step 4: Release the guide.
Step 5: Push the traverse slide plate (rib) to lock the traverse
unit in.
