Panasonic SA-VK81D - Voltage Selector P.C.B; Replacement for Traverse Deck; Replacement for Optical Pickup Unit (DVD Mechanism)

Insulate Power P.C.B. with insulation material to avoid short
circuit.

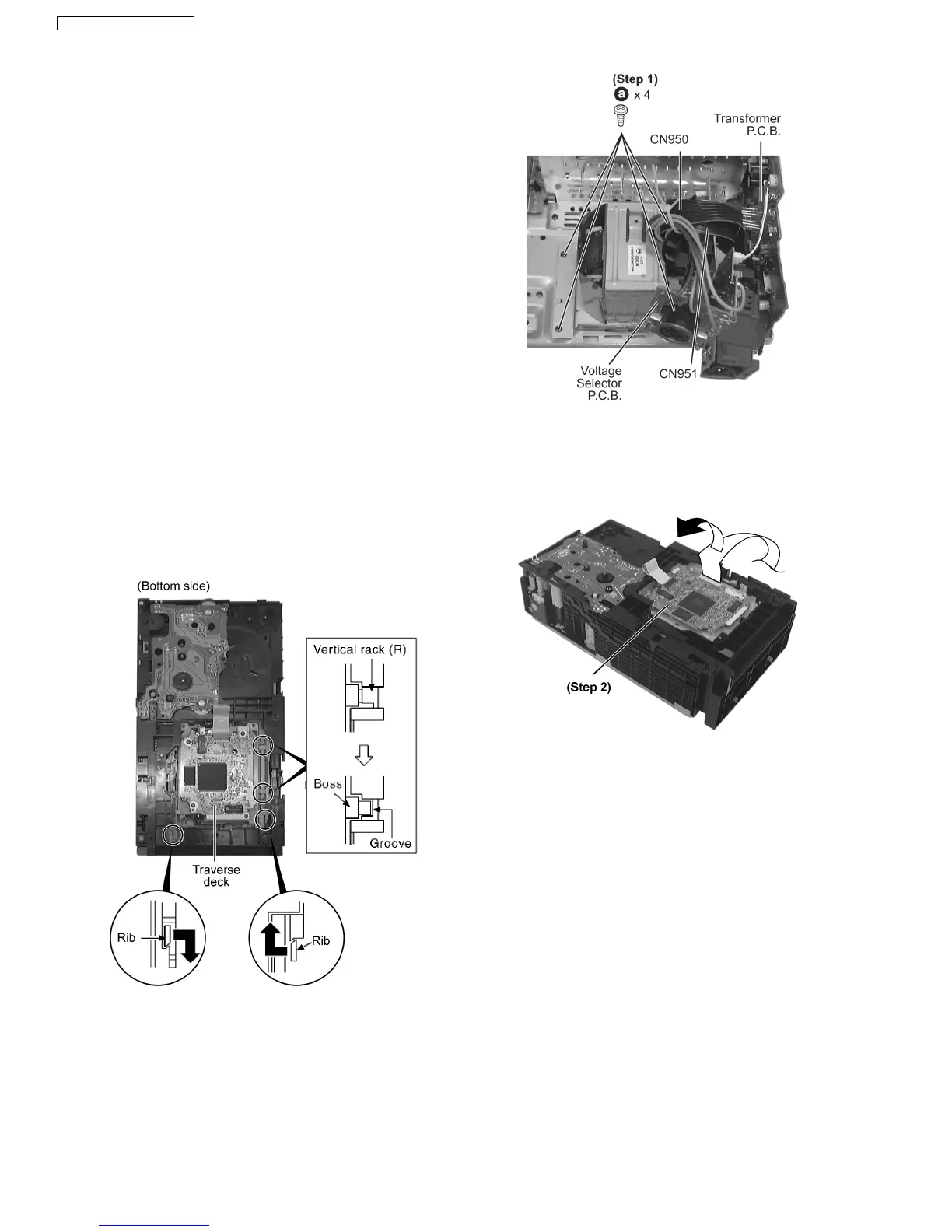

17.5.4. Disassembly of Transformer P.C.B.
& Voltage Selector P.C.B.
· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the (Step 1) - (Step 4) of Item 17.3.
Step 1 Remove 4 screws.
· Follow the (Step 1) - (Step 2) of Item 17.2.
· Follow the (Step 1) - (Step 4) of Item 17.3.
· Follow the (Step 1) - (Step 3) of Item 17.3.1.
Step 1 Move ribs at both sides to the arrow direction (The
verticval rack (R) slides and the groove opens).
Step 1 Pull out FFC.
Step 2 Disconnect connector CN950 & CN951.
Step 2 Remove CD traverse deck rotating to the arrow
direction.
17.6. Replacement for traverse deck
17.7. Replacement for optical pickup unit (DVD mechanism)
· Follow the (Step 1) - (Step 2) of Item 17.2
· Follow the (Step 1) - (Step 4) of Item 17.3.
· Follow the (Step 1) - (Step 3) of Item 16.3.1.
· Follow the (Step 1) - (Step 2) of Item 17.6
38
SA-VK81DGCS / SA-VK81DGCP
