Panasonic SA-VK81D - Disassembly of Deck Mechanism Unit

· Follow the (Step 1) - (Step 2) of Item 18.2.
· Follow the (Step 1) - (Step 4) of Item 18.3.
· Follow the (Step 1) - (Step 3) of Item 18.3.1.

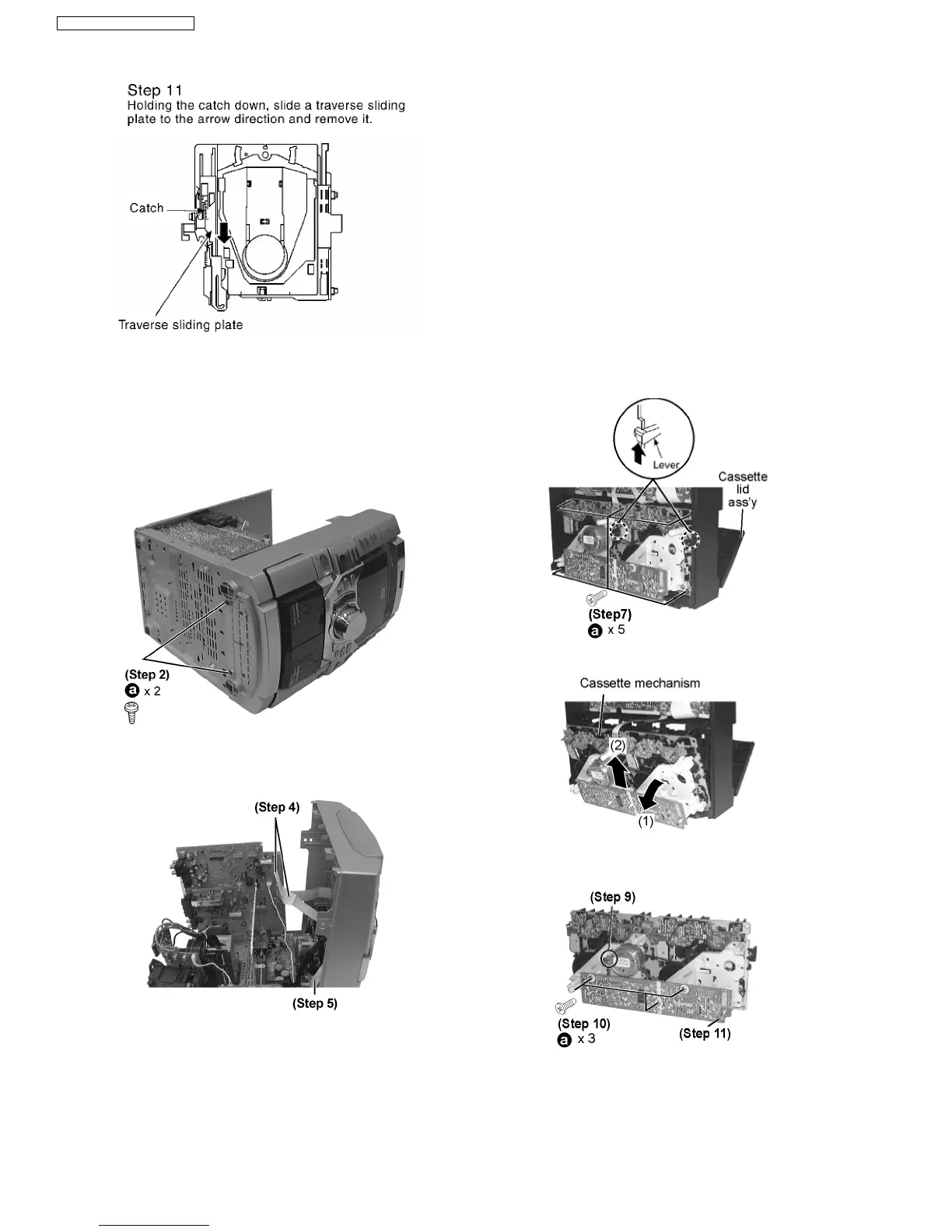

Step 1 Remove the connector.
Step 2 Remove 2 screws.
Step 3 Remove the 2 claws, and then draw the front panel
ass’y.
Step 4 Detach FFC Board (CN601 & CN602).
Step 5 Detach flat cable wire (CN1001).
Step 6 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 7 Remove the 5 screw.
Step 8 Tilt the cassette mechanism in the direction of arrow (1),
and then remove it in the direction of arrow (2).
· Disassembly of Deck P.C.B.
Step 9 Unsolder the motor terminals.
Step 10 Remove 4 screws.
Step 11 Remove Deck P.C.B.
17.12. Disassembly of Deck Mechanism Unit
60
SA-VK81DGCS / SA-VK81DGCP
