You can direct the audio signal from the
connected Blu-ray Disc player, DVD player, Set
Top Box, etc. to this system.
Preparation
≥ Connect the main unit to the TV. (> 9)
A HDMI cable
Depending on how the main unit is setup, it may
block the TV’s remote control signal sensor,
stopping the TV’s remote control from working.
Use the supplied Ir system cable if this occurs.
The TV remote control signals received by the
main unit are sent to the TV to operate it.
≥ For the operation range, refer to page 8.
≥ Do not use any other IR Blaster except the
supplied one.

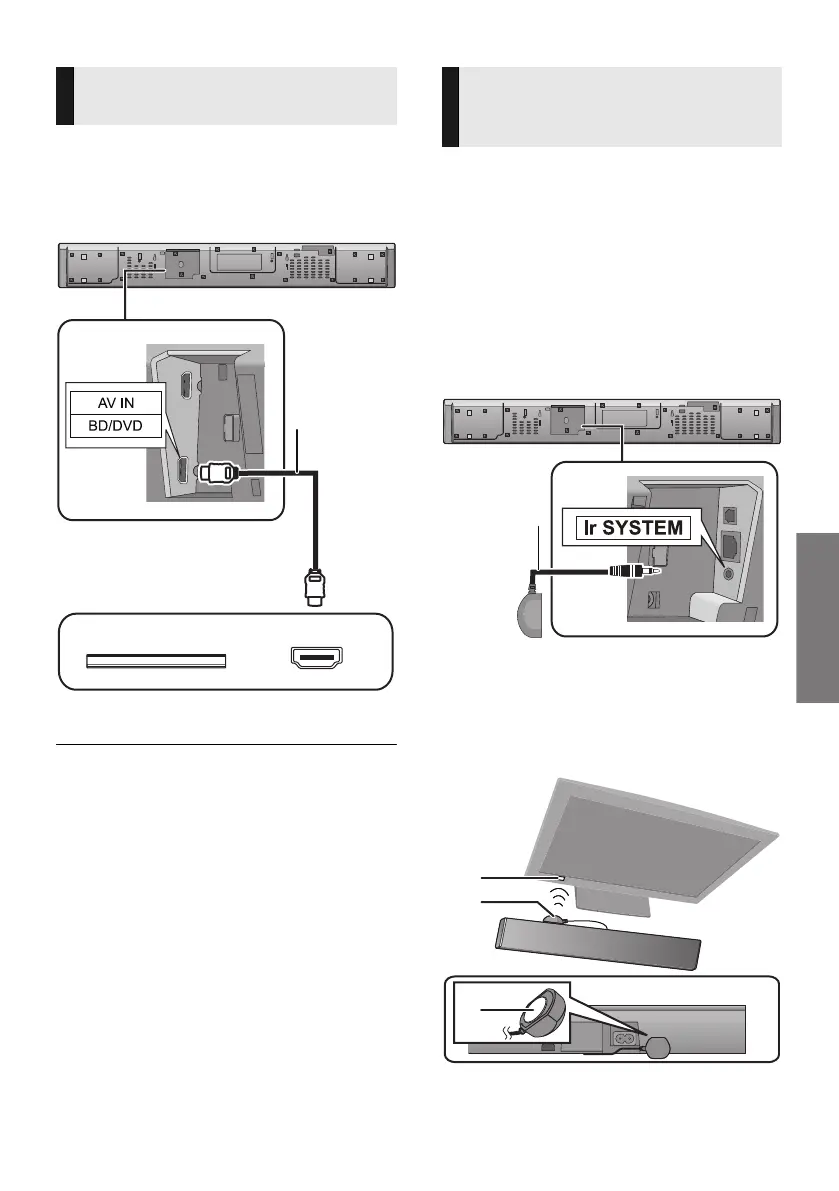

1 Connect the jack plug to the main
unit’s Ir SYSTEM terminal.
A IR Blaster (supplied)
2 Place the infrared emitter in sight of
the TV’s remote control signal sensor.
Placement example
On the rear of the main unit:
B TV remote control signal sensor
C Infrared emitter
D Adhesive tape
Connection from an HDMI
compatible device
≥ Refer to the operating instructions of the connected
HDMI compatible device for the necessary setting, to
output the video and audio signals.
≥ When connecting to 4K compatible equipment and 4K
Ultra HD TV, use High Speed HDMI cables which support
18 Gbps bandwidth.
HDMI OUT
e.g., Blu-ray Disc player
Using the IR Blaster
(When the remote control does not
work properly)
