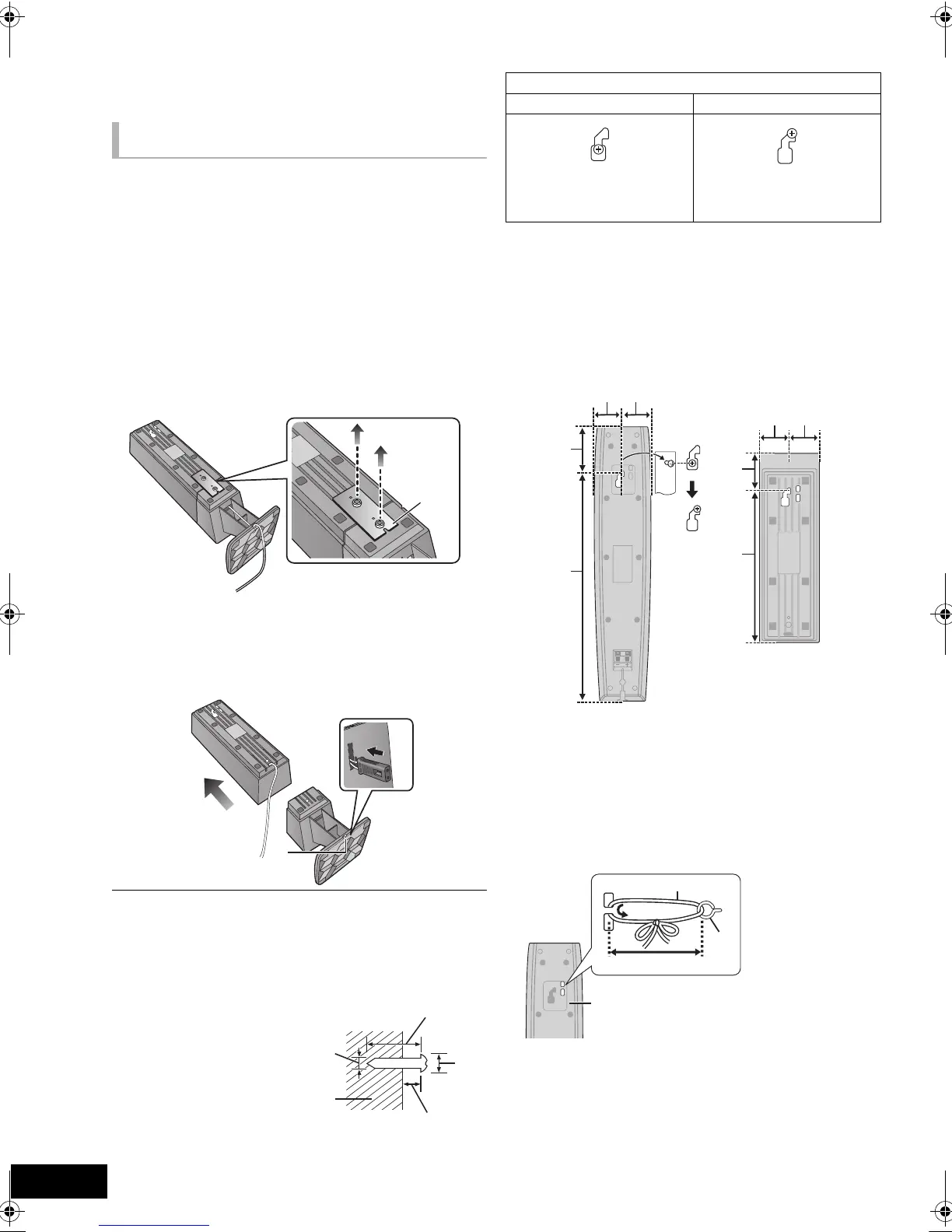

Optional speaker settings
Speaker installation
option
You can attach all of the speakers (except subwoofer) to a wall.
≥ The wall or pillar on which the speakers are to be attached
should be capable of supporting 10 kg per screw. Consult a
qualified building contractor when attaching the speakers to
a wall. Improper attachment may result in damage to the wall
and speakers.
≥ Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
[BTT262]
Preparation
≥ Remove the speaker stands.
1 Remove the screws and the bracket (A) from the
speaker.
2 Detach the speaker stand.
≥ Remove the speaker cable from the groove (B).
≥ Pull out the speaker cable from the stand, making sure
to match the direction of the speaker connector and the
hole on the stand.
≥ Keep the removed stands, screws and brackets for future use.
1 Drive a screw (not supplied) into the wall.
A At least 30 mm
B ‰ 4.0 mm
C ‰ 7.0 mm to ‰ 9.4 mm
D Wall or pillar
E 5.5 mm to 7.5 mm
2 Fit the speaker securely onto the screw(s)
with the hole(s).
Use the measurements indicated below to identify the
screwing positions on the wall.
≥
Leave at least 20 mm of space above the speaker and 10 mm
on each side to allow enough space for fitting the speaker.
Front speaker
≥ [BTT362] Attach to a wall without the base.
F 40 mm
G 63 mm
H 322 mm
I 37 mm
J 45 mm
K 190 mm
∫ To avoid speaker dropping
≥ Consult a qualified building contractor to avoid damage to
the wall or speakers.
≥ Use a string of less than ‰ 2.0 mm, which is capable of
supporting over 10 kg.
Attaching to a wall
1
e.g., [BTT362] Front speaker
DO NOT DO
≥ In this position, the
speaker will likely fall if
moved to the left or right.
≥ Move the speaker so that
the screw is in this
position.
[BTT362]
[BTT262]
A String (not supplied)
B Screw eye (not supplied)
C Less than 10 cm
D Rear of the speaker
