Panasonic SC-BTT362 - Main Unit (Front); Main Unit (Rear)

Getting started
9
VQT3M52
1 Standby/on switch (Í/I) (> 19)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Open or close the disc tray (> 22)
3 Adjust the volume of the main unit
4 Disc tray
5 Stop (> 25)
6 Start play (> 25)
7 SD card slot (> 22)
8 USB port (> 22)
9 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20e up and down, 30e left and right
10 Display
11 Connect iPod/iPhone (> 34)
1 AC IN terminal (> 18)
2 Speaker terminals (> 13)
3 Cooling fan
4 [BTT362]
USB port for the Communication Camera TY-CC10W
(optional) (> 36)
5 LAN port (> 17)
6 HDMI AV OUT (ARC) terminal (> 15)
7 [BTT362]
HDMI 1 IN (CABLE/SAT) terminal (> 16)
8 [BTT362]
HDMI 2 IN terminal (> 16)
9 FM radio antenna terminal (> 18)
10 DIGITAL AUDIO IN terminal (> 14, 15)
11 AUX terminal (> 14)
12 VIDEO OUT terminal (> 14)

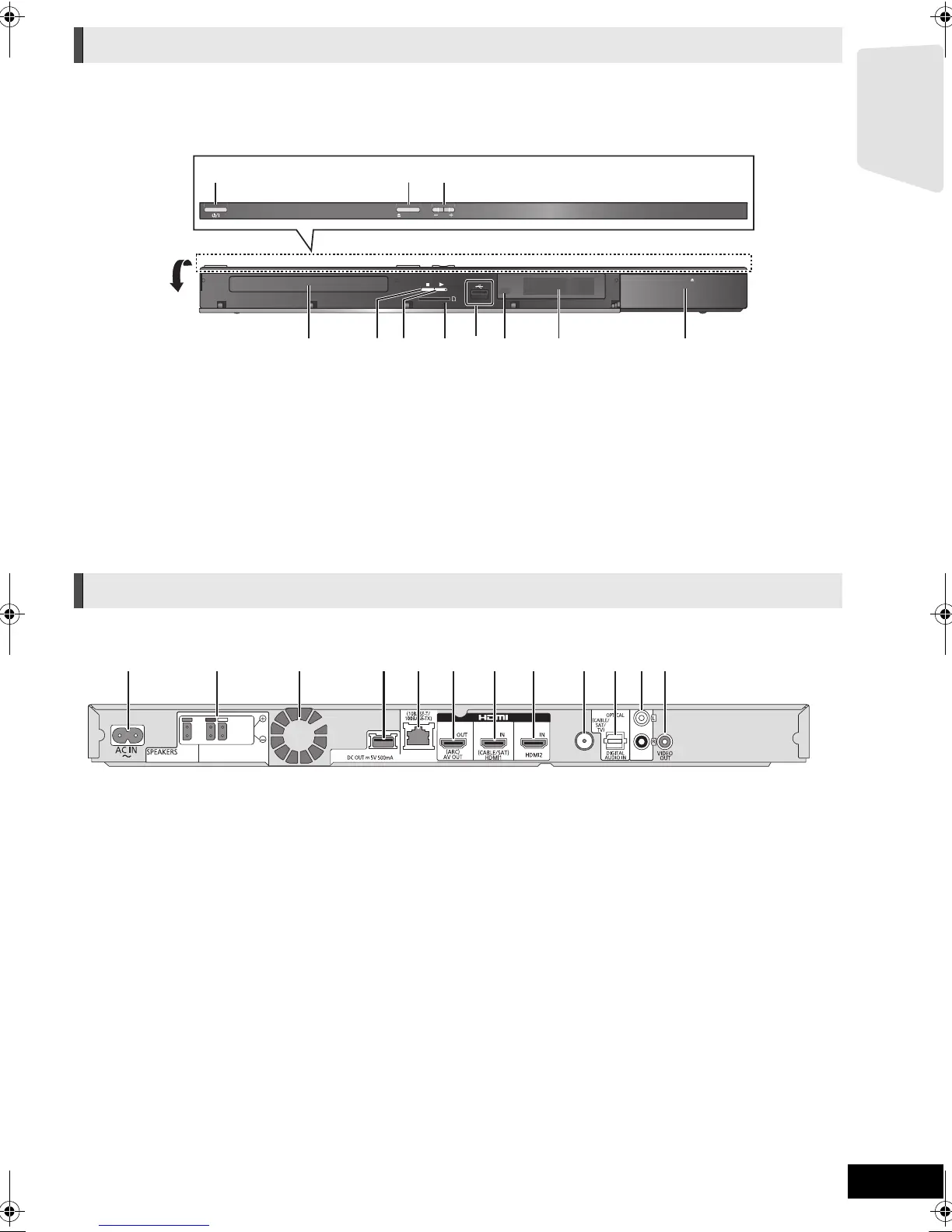

Main unit (Front)
SD CARD
iPod
VOL
OPEN/CLOSE
1 2 3
4576119108
Pull open.
Main unit (Rear)
SUBWOOFER
33
RL
ΩΩ
Ω
75
FRONT
AUX
FM ANT
LAN
COMMUNICATION CAMERA
1 2 3 4 5 6 7 11 128 9 10
