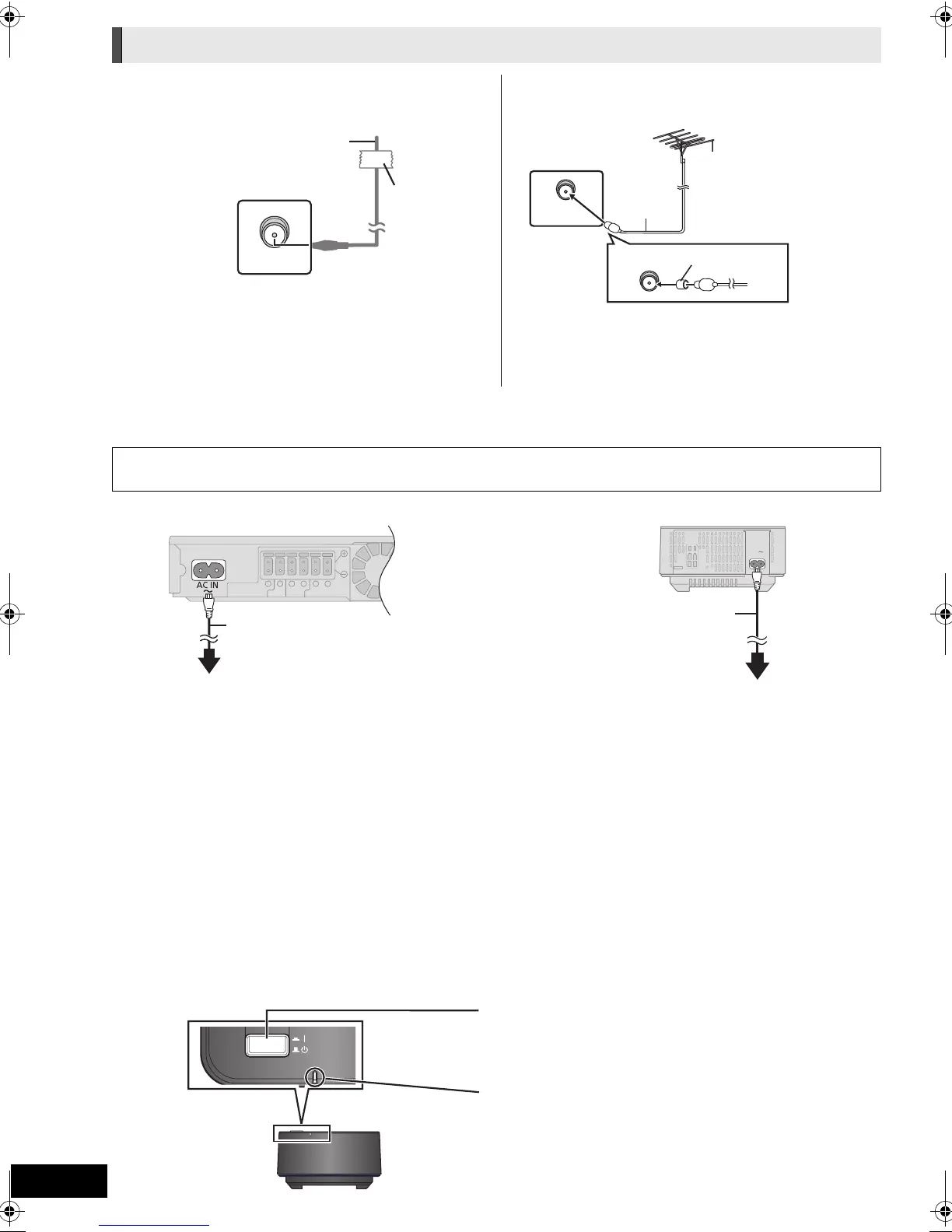

STEP 4: AC mains lead connection
≥ Connect only after all other connections are complete.
A AC mains lead (supplied)
B To a household mains socket
A AC mains lead (supplied)
B To a household mains socket
Main unit
≥The main unit consumes a small amount of AC power, even when it is turned off.
[BTT775] [BTT770] [BTT370] : approx. 0.1 W*, [BTT270]: approx. 0.4 W*
*When the “Quick Start” setting is “Off”
In the interest of power conservation, if you will not be using this unit for a long time, unplug it from the household mains socket.
Wireless system [BTT775[for[Australia[and[New[Zealand]: approx. 0.3 W
STEP 5: Preparing the wireless system
[BTT775[for[Australia[and[New[Zealand]
Turn on the wireless system after all connections are complete.
Press [C I, BÍ] on the wireless system.
Unit on/off button [C I, B Í]
C I: The wireless system is on.
BÍ: The wireless system is off.
WIRELESS LINK indicator
Red:
The wireless system is on and the wireless link is deactivated.
Green:
The wireless system is on and the wireless link is activated.
(“WIRELESS SPEAKERS LINKED” is also displayed on the
main unit’s display by pressing and holding [STATUS] on the
remote control.)
Radio antenna connection
∫ Using an indoor antenna ∫ Using an outdoor antenna
Use outdoor antenna if FM radio reception is poor.
A FM indoor antenna (supplied)
B Adhesive tape
Affix this end of the antenna where reception is best.
A
FM outdoor antenna
[Using a TV antenna (not supplied)]
The antenna should be installed by a competent technician.
B 75 ≠ coaxial cable (not supplied)
C
Antenna plug adaptor
(United Kingdom and Ireland only)
\For\the\United\Kingdom\and\Ireland\only\
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE CONNECTION.
Main unit
[BTT775[for[Australia[and[New[Zealand]
Wireless system
≥ AC mains lead with a ferrite core is for the
wireless system. Do not use any other AC
mains lead except the supplied one.
WIRELESS LINK
