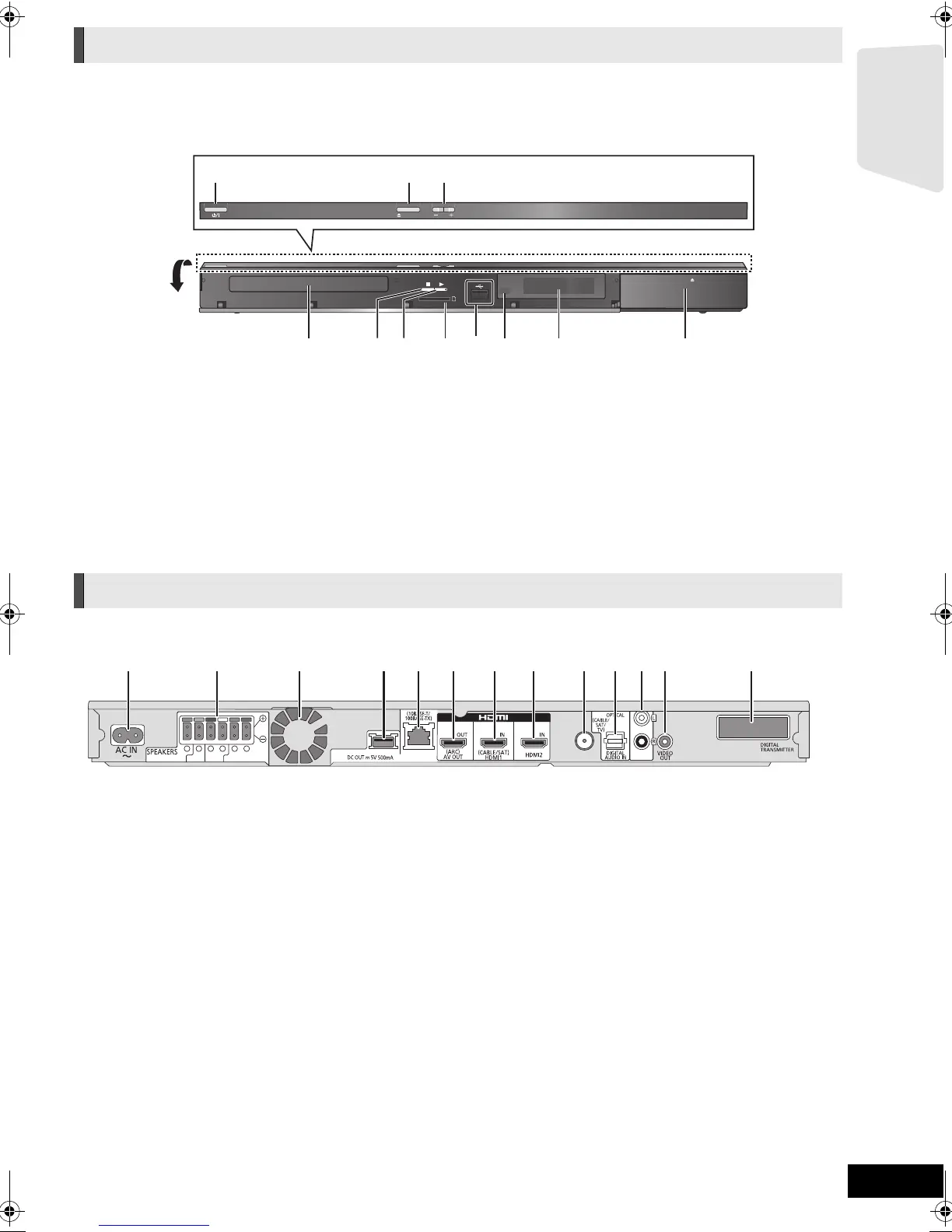

Panasonic SC-BTT770 - Main Unit (Front); Main Unit (Rear)

Getting started
9
VQT3M06
1 Standby/on switch (Í/I) (> 21)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Open or close the disc tray (> 24)
3 Adjust the volume of the main unit
4 Disc tray
5 Stop (> 27)
6 Start play (> 27)
7 SD card slot (> 24)
8 USB port (> 24)
9 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20e up and down, 30e left and right
10 Display
11 Connect iPod/iPhone (> 36)
1 AC IN terminal (> 20)
2 Speaker terminals (> 15)
3 Cooling fan
4 [BTT775] [BTT770] [BTT370]
USB port for the Communication Camera TY-CC10W
(optional) (> 38)
[BTT270]
USB port for wireless adaptor (> 19)
5 LAN port (> 19)
6 HDMI AV OUT (ARC) terminal (> 17)
7 [BTT775] [BTT770] [BTT370]
HDMI 1 IN (CABLE/SAT) terminal (> 18)
8 [BTT775] [BTT770] [BTT370]
HDMI 2 IN terminal (> 18)
9 FM radio antenna terminal (> 20)
10 DIGITAL AUDIO IN terminal (> 16 , 17)
11 AUX terminal (> 16)
12 VIDEO OUT terminal (> 16)
13 [BTT775[for[Australia[and[New[Zealand]
Digital transmitter dock for supplied wireless system
(> 18)
[BTT775[for[the[United[Kingdom[and[Ireland]
[BTT770] [
BTT370]
Digital transmitter dock for optional wireless system (> 14)
Main unit (Front)
SD CARD
iPod
VOL
OPEN/CLOSE
1 2 3
4576119108
Pull open.
Main unit (Rear)
SUBWOOFER
3
6 5 2 1 4 3
33
RLR L
ΩΩΩΩ
3
Ω
75
CENTER SURROUND FRONT
AUX
FM ANT
LAN
COMMUNICATION CAMERA
1 2 3 4 5 6 7 1311 128 9 10
