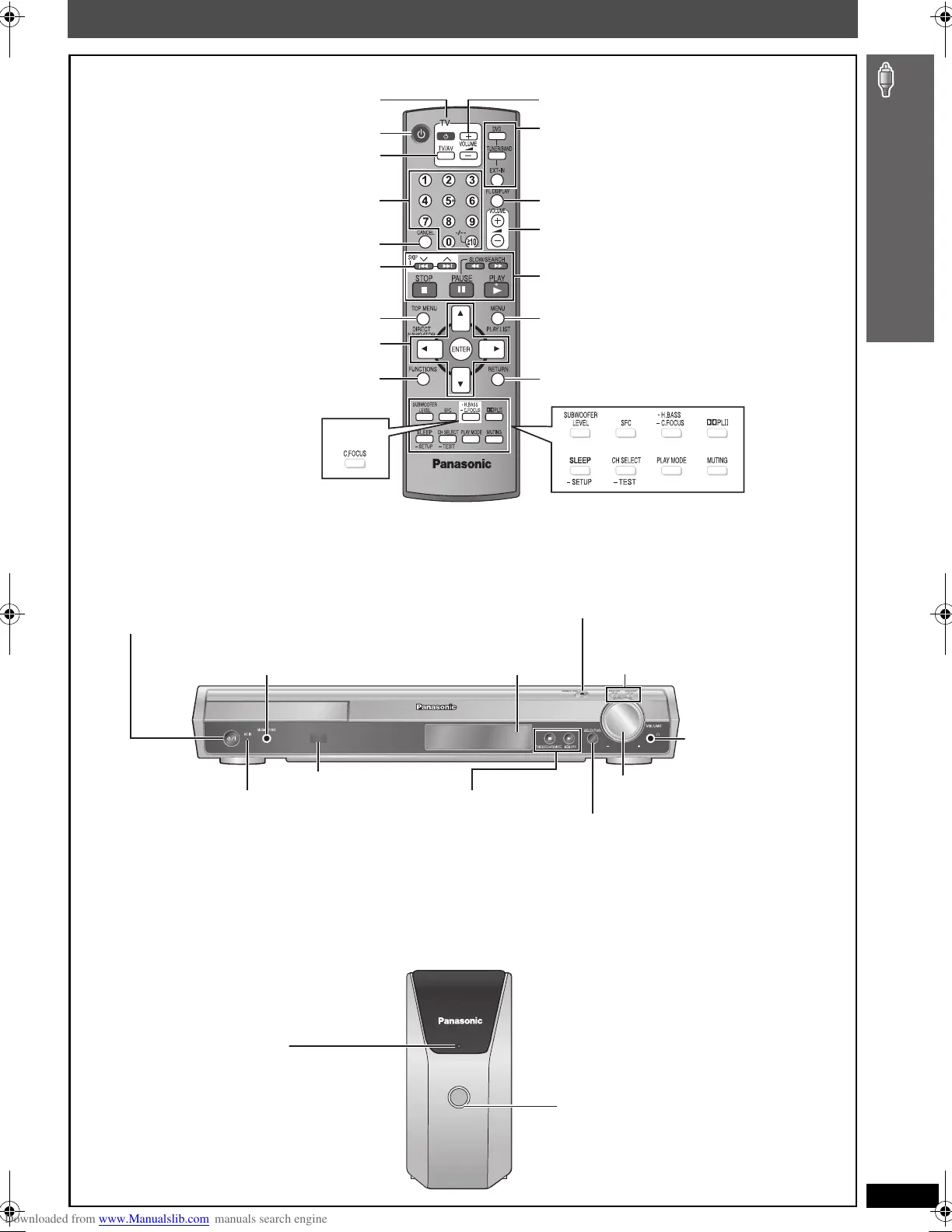

Control reference guide
Control reference guide
AC IN
WIRELESS LINK
(28)
(29, 28)
(28)
(30, 23)
(29) (16) (30)
(28)
(28)
Turn the unit on/off (10)
Select disc’s title numbers etc./Enter numbers (15)
Basic operations for play (14, 15)
Show a disc top menu (17) or program list (18)
Frame-by-frame/Select or register menu items on the
television screen (15)
Show on-screen menu (20) or
display RDS text data ([Continental]Europe] only) (27)
Change the television’s video input mode (31)
Return to previous screen (15)
Adjust the volume of the main unit (15)
Select the source
DVD: DVD/CD (10)
TUNER/BAND: FM/AM (26)
EXT-IN: MUSIC P. (30), TV
§
(31), AUX (31)
Cancel (15)
Change the unit’s display (15)
See page references in parentheses.
SELECTOR (26)
DVD/CD#FM#AM#TV
§
#AUX #MUSIC P. #
Return to DVD/CD
§
[Continental]Europe] “TV” works only when the
scart cable is connected (➜ page 9).
< OPEN/CLOSE
Open/Close the disc tray (14)
∫ /
-
TUNE MODE /
-
FM MODE
Stop playing (14)/Select the tuning mode (26)
Adjust the FM reception condition (26)
1 / MEMORY
Play discs (14)/Memorize the receiving radio
stations (26)
4, 5 / X TUNING W
Skip or slow-search play (14)/
Select the radio stations (26)
Standby/on switch [Í/I]
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power. (14)
VOLUME
Turn up/down the volume (14)
AC supply indicator [AC IN]
This indicator lights when the unit is
connected to the AC mains supply.
Phones
Connect headphones (30)
MUSIC PORT
Connect an external device (30)
Remote control signal sensor
Television operations (31)
Adjust the television volume (31)
Select preset radio stations (26)
[HT545W]
To use functions labeled with “
-
”:
Press and hold the button for at least 2 seconds.
The following illustration shows the
wireless system for SC-HT545W.
Display
AC supply indicator [AC IN]
This indicator lights when the unit is
connected to the AC mains supply.
Lighting Ring
Lights when the wireless link is active.
[HT545W]
Show a disc menu (17) or play list (18)
The illustration shows SC-HT545.
