RQT8654
7
Simple Setup

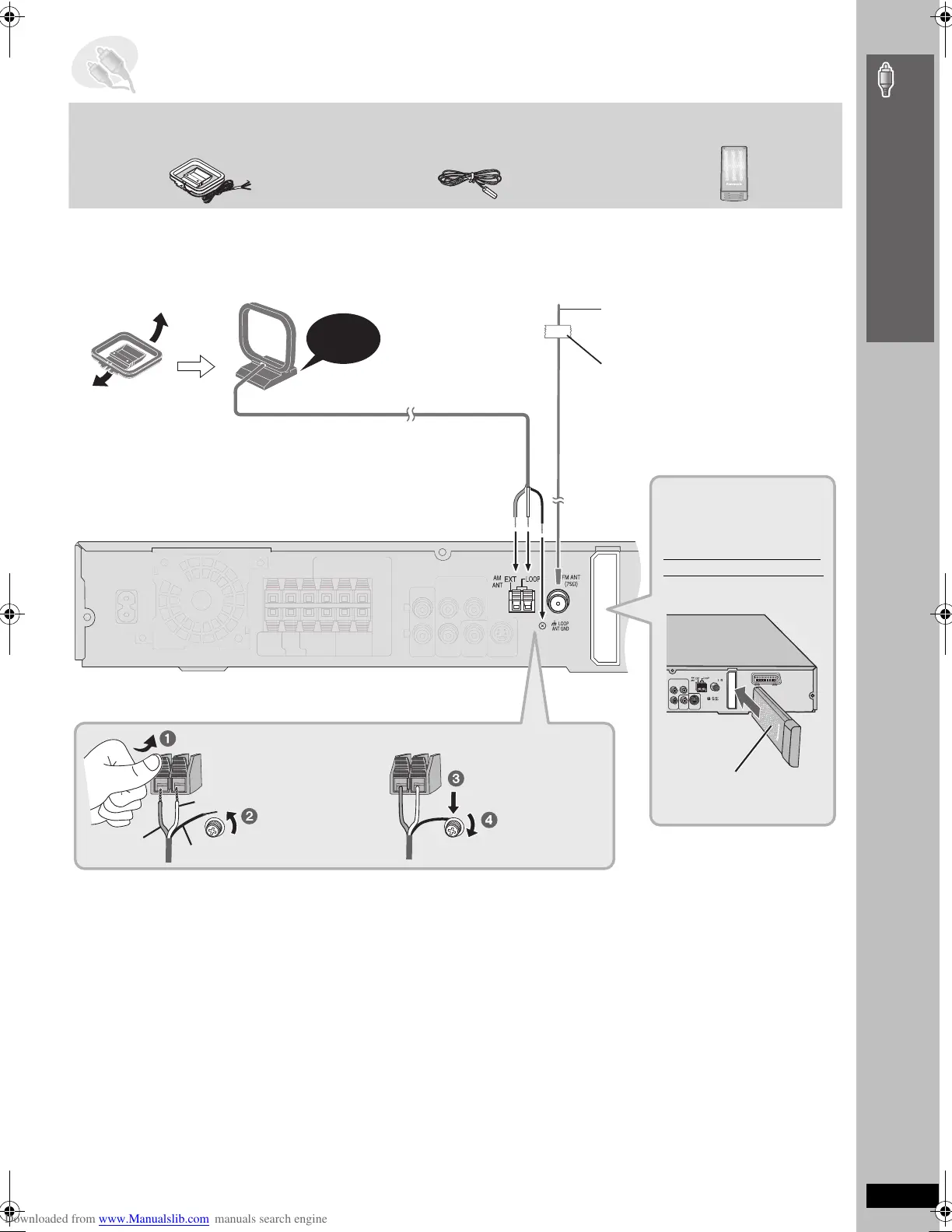

STEP3 Radio and digital transceiver connections
Digital Transceiver
FM ANT
COMPONENT VIDEO OUT
VIDEO
S-VIDEO
OUT
Y
P
B
R
P
OUT
Digital Transceiver
Adhesive tape
Main unit
AM loop antenna
Stand the antenna up on its base.
Place the antenna where reception is best.
Keep loose antenna cable away from other
wires and cables.
Click!
AM loop antenna FM indoor antenna
FM indoor antenna
Affix this end of the antenna where
reception is best.
≥ Using an outdoor antenna (optional) (➜ page 27).
The following illustration shows SC-HT545.
Re-tighten the
terminal screw.
Loosen the terminal
screw with a Phillips-
head screwdriver.
White
Red
Black
While pushing, insert the wire fully.
[HT545W]
Digital transceiver
[HT545W]
Insert the digital
transceiver into the slot.
Do not insert or remove
while the main unit is on.
Digital transceiver
Insert fully until you
hear a click.
Radio and digital transceiver connections
HT545 545W En.b ook Page 7 Friday, March 31, 2006 3:00 PM
To Next Page
