12
VQT3R83
≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

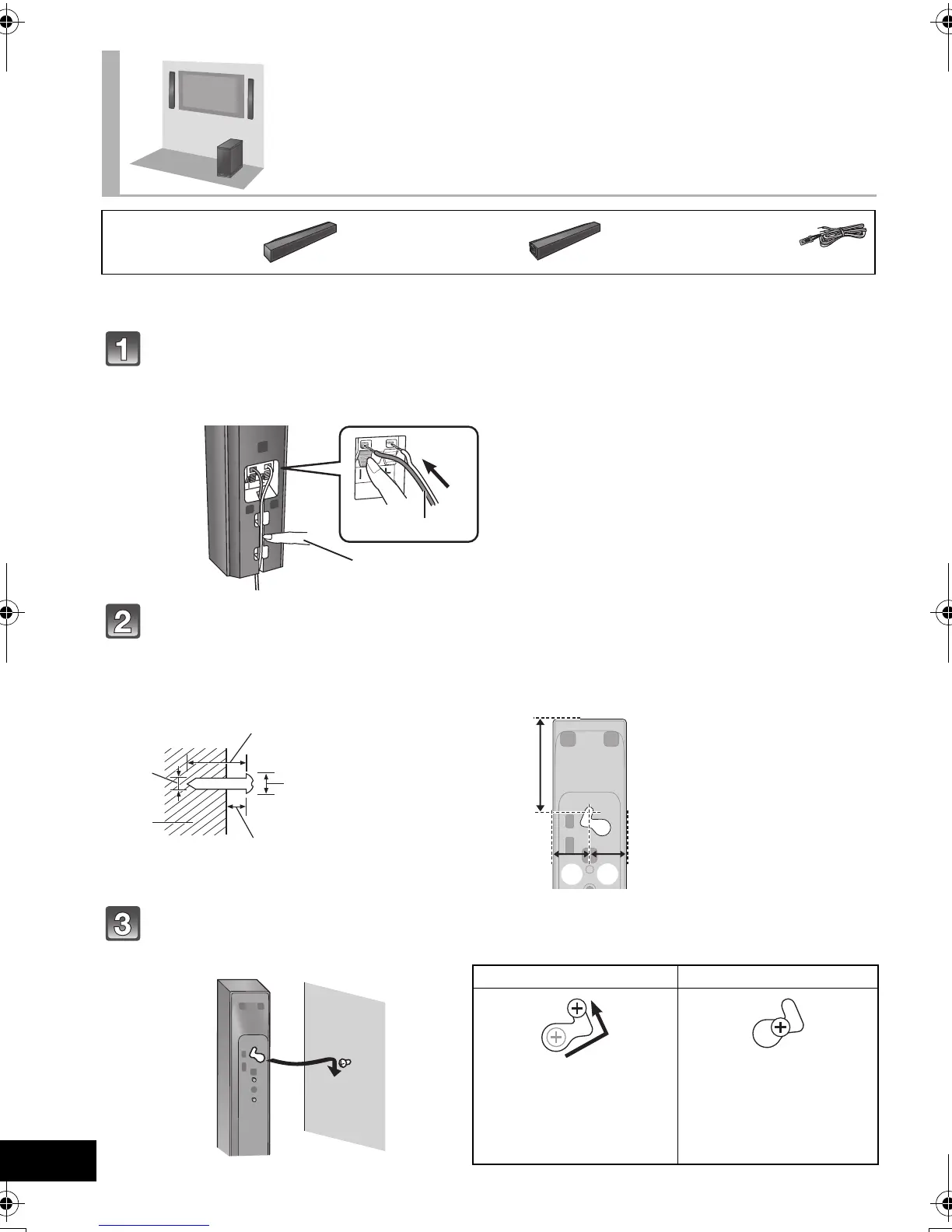

Connect the speaker cables.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
≥ To make sure that the speaker cable is connected to the correct speaker, match the colour of the speaker connector with the
colour of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.
Drive a screw (not supplied) into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above and each side of the speaker to allow enough space for fitting the speaker.
≥ The position in the wall where the screw is to be attached as well as the screw should be capable of supporting over 33 kg.
≥ Keep the screws out of reach of children to prevent swallowing.
Fit the speaker(s) securely onto the screw(s) with the hole(s).
Place the speakers vertically
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
1 Insert the wire fully.
r: White
s: Blue line
2 Press into the groove.
A At least 30 mm
B ‰4.0 mm
C ‰7.0 mm to
‰9.4 mm
D Wall or pillar
E 5.5 mm to 6.5 mm
F 55 mm
G 24.5 mm
DO DO NOT
≥ Move the speaker so
that the screw is in this
position.
≥ In this position, the
speaker will likely fall if
moved to the left or
right.
SC-HTB15EGEBGNGS_VQT3R83.book Page 12 Tuesday, June 28, 2011 2:34 PM
