You can output the audio signal from the connected HDMI compatible Blu-ray Disc player, DVD player, etc.
with this system and pass the signal through to your TV.
≥When connecting other external device such as a set top box, refer to the operating instructions for the
TV.
Preparation
≥ Connect this system to the TV. (> 18, 19)
A HDMI cable (not supplied)
∫ HDMI standby pass-through
Even if this system is in standby mode, the audio and/or video signal from the device connected to the HDMI IN 1 or HDMI IN 2
terminal will be sent to the TV connected to the HDMI OUT terminal (The sound will not be output from this system). When devices
are connected to both HDMI IN 1 and HDMI IN 2 terminals, audio and/or video signal of the device whose input is lastly selected is
output.

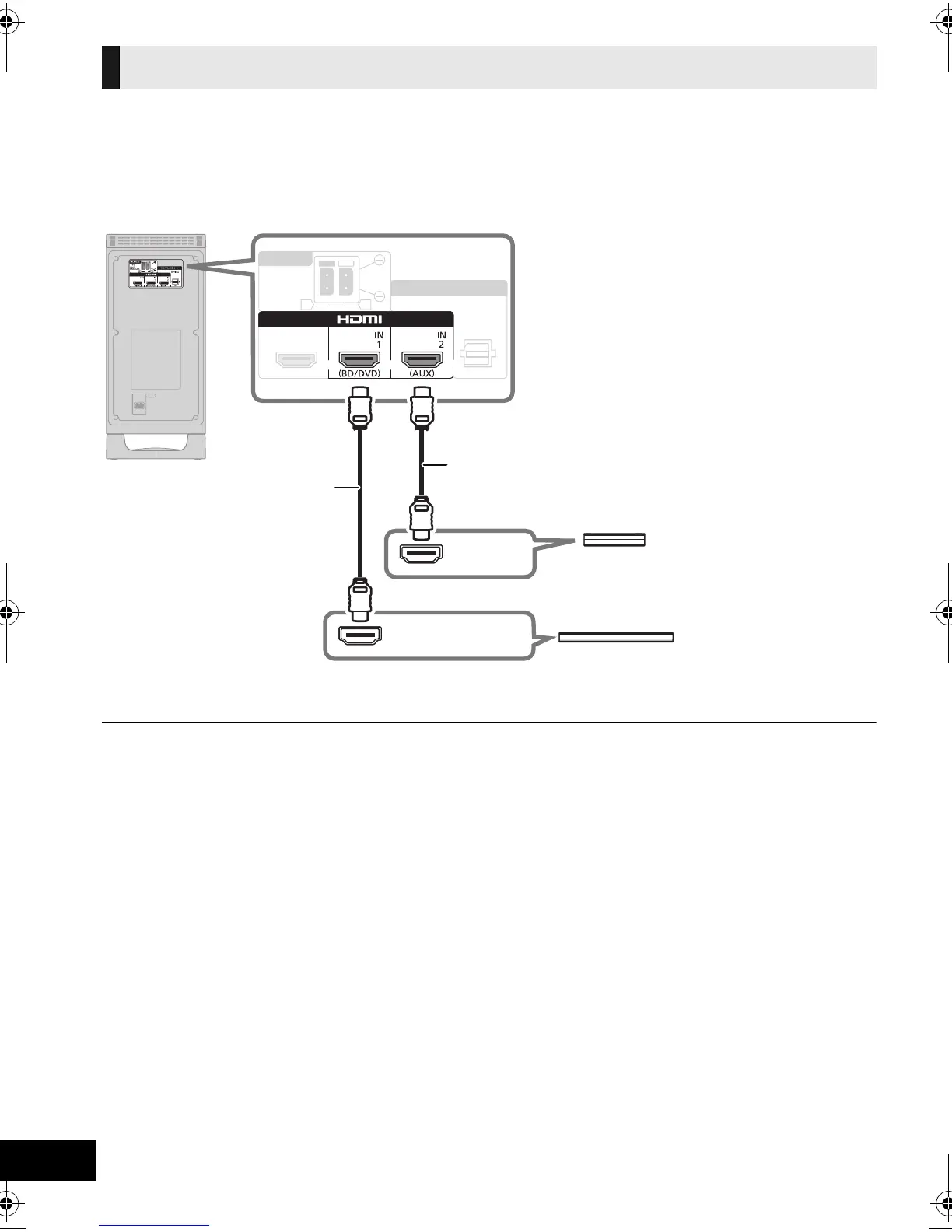

Connection with HDMI compatible devices
HDMI OUT
HDMI OUT


e.g., Video game console
e.g., Blu-ray Disc Player
Active subwoofer
