Panasonic SC-HTB15 User Manual

Getting started
13
VQT3R83
≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 to 3 of “Place the speakers
horizontally” (> 10).
Attach the stands.
≥ Keep the screws out of reach of children to prevent swallowing.

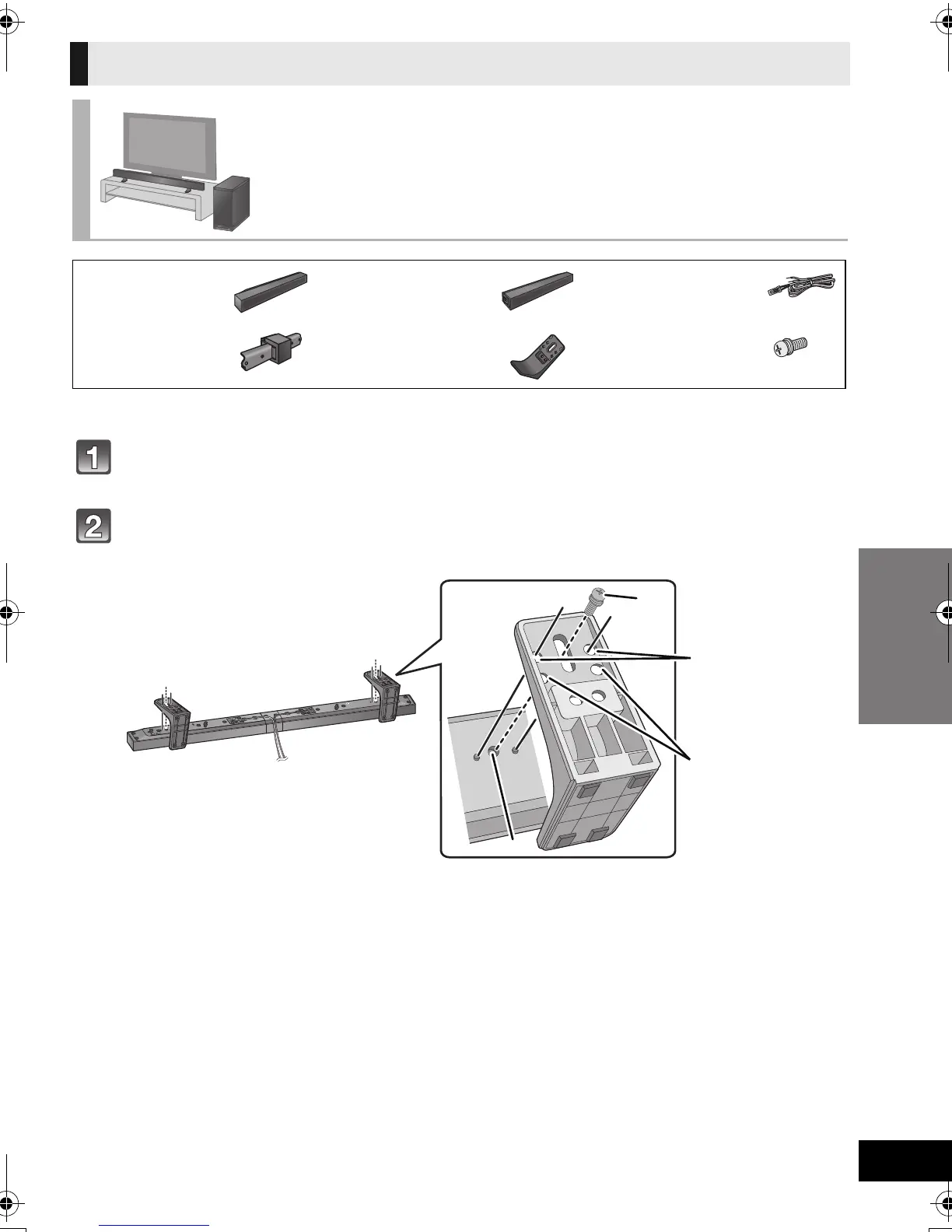

When placing the speakers on a table
Place the speakers using the stands
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint ∏ 2 Stands ∏ 6 Screws A
(Large)
A Screw A (supplied)
B Screw hole


Align the holes
with the projecting
parts on the
speaker.
Do not use these
holes for the
alignment. If these
are used, the
screw does not fit.
