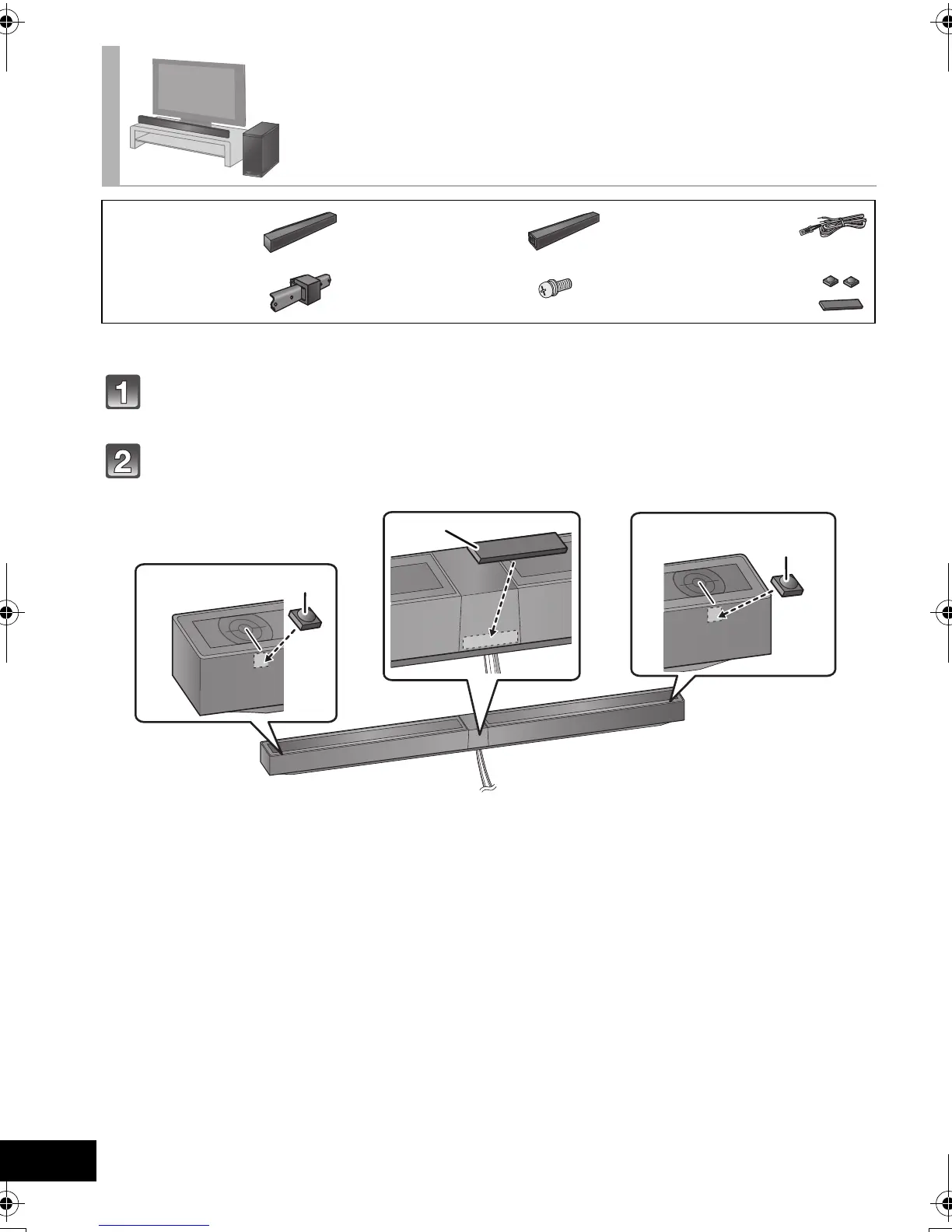

≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 to 3 of “Place the speakers
horizontally” (> 10).
Attach the speaker feet to the bottom of the speakers.
≥ Keep the speaker feet out of reach of children to prevent swallowing.
Place the speakers using the speaker feet
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 1 Speaker joint ∏ 4 Screws A
(Large)
∏ 3 Speaker feet
A Speaker foot A (supplied)
≥ Attach the speaker foot A directly below the centre of
the tweeter (as illustrated).
B Speaker foot B (supplied)
≥ Attach the speaker foot to the position indicated in the
illustration.
B:
A:



SC-HTB15EGEBGNGS_VQT3R83.book Page 14 Tuesday, June 28, 2011 2:34 PM

Panasonic SC-HTB15 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	240 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Tweeter diameter	25 mm
Soundbar speaker RMS power	120 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wired
Receiver included	No
Product color	Black
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	800 x 58 x 49 mm
Subwoofer dimensions (WxDxH)	180 x 305 x 408 mm
HDMI in	2
HDMI ports quantity	3
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	52 W

Weight and Dimensions

Soundbar weight	1360 g
Subwoofer weight	5600 g
