15
VQT3R83
≥ For a safety measure to prevent the speakers from falling, refer to page 16.
≥ To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Insert the speaker cable through the base.
≥ Be sure to insert the speaker cable through the threading hole as indicated in the illustration.
Attach the speaker to the base.
≥ To make sure that the speaker cable is connected to the correct speaker, match the colour of the speaker connector with the
colour of the L/R indicator on the speaker label so as not to connect the speaker cable to the wrong speaker.
≥ Keep the screws out of reach of children to prevent swallowing.
(Continued on the next page)

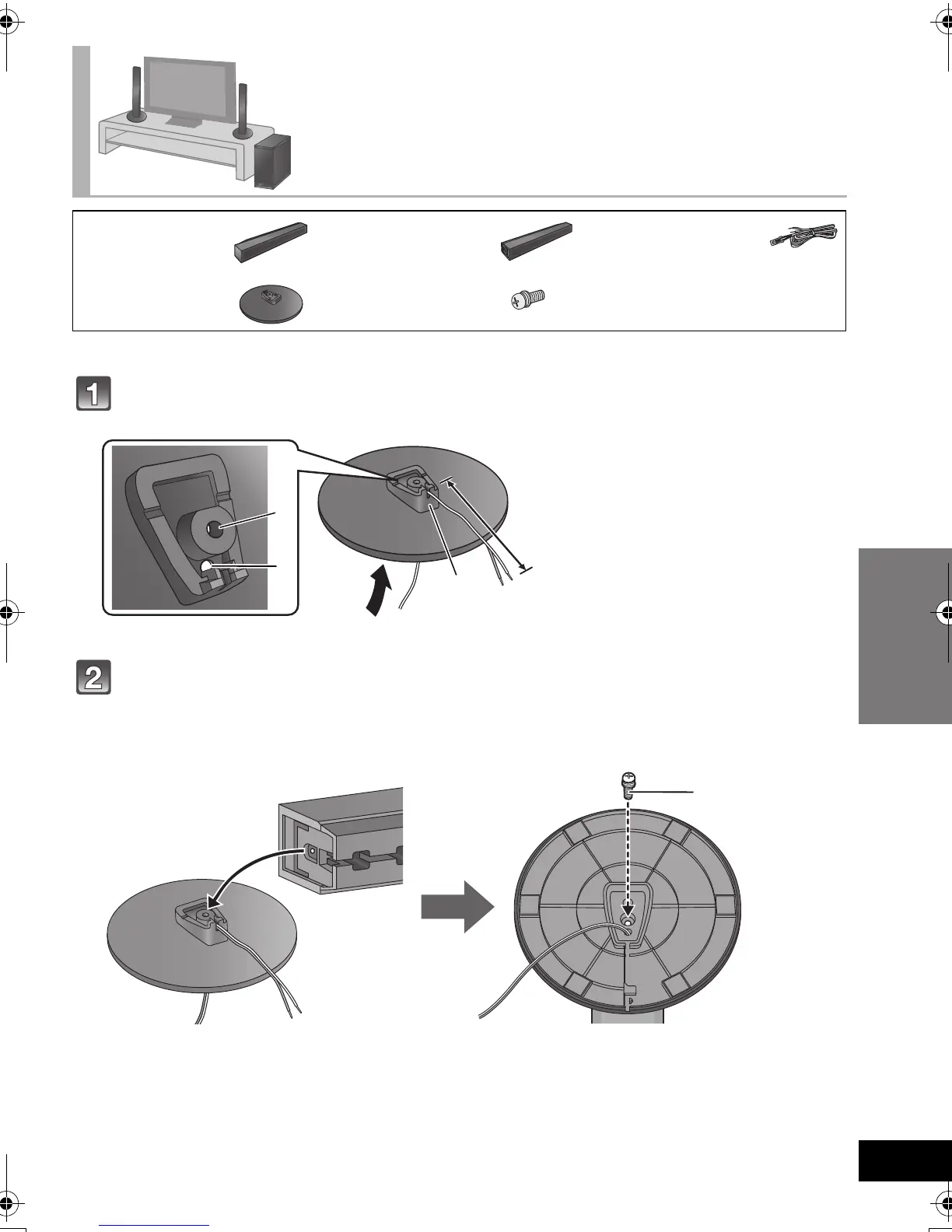

Place the speakers using the base stands
∏ 1 Speaker (L) ∏ 1 Speaker (R) ∏ 2 Speaker cables
(L): WHITE
(R): RED
∏ 2 Bases ∏ 2 Screws B
(Small)
A Threading hole B Screw hole
Leave about 110 mm
Position the cable between the ridges.
Screw B (supplied)
≥ Tighten securely.
SC-HTB15EGEBGNGS_VQT3R83.book Page 15 Tuesday, June 28, 2011 2:34 PM
