Panasonic SC-HTB490 User Manual

10
TQBJ2338
Placing the main unit in a rack or on a table
Additionally required accessories (commercially available)
 Fall prevention cord (x2)
 Screw eyes (to attach the fall prevention cord) (x2)
Note:
• Use commercially available screws that are capable of supporting over 30 kg.
• Use a cord that is capable of supporting over 30 kg (with a diameter of about 1.5 mm).

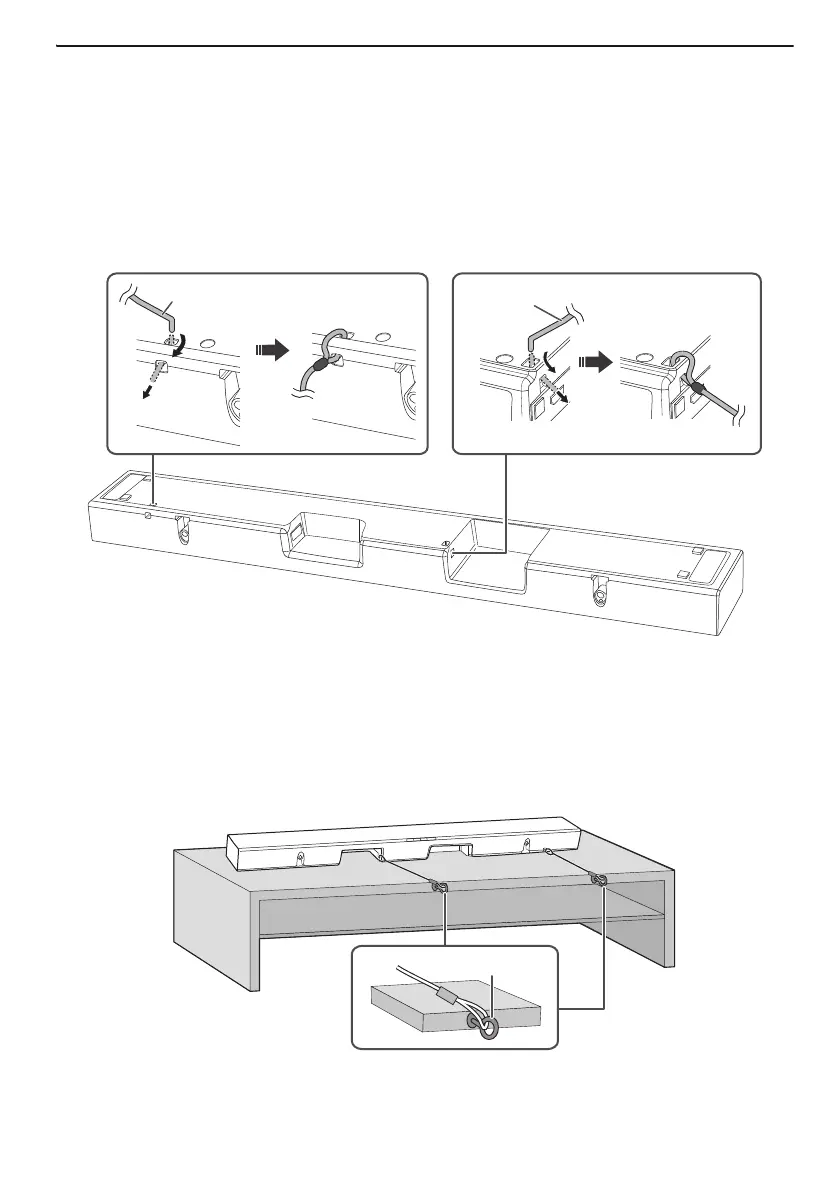

1 Attach the cord to the main unit.
If the cord cannot be threaded through the holes, try bending the cord, about 5 mm apart from the tip,
at an angle of 45° (as illustrated above).
2 Place the main unit in the desired position and attach each cord onto the
rack or table.
Make sure that the slack of the cord is minimal.
Do not lean the main unit against the TV or wall.
Attach the screw eye at a position capable of supporting over 30 kg.
Depending on the placement of the main unit, the screwing position of the screw eye may differ.
Cord
Cord
Screw eye

Panasonic SC-HTB490 Specifications

General

RMS rated power	320 W
Audio output channels	2.1 channels
Surround modes quantity	2
Wi-Fi	No
Bluetooth	Yes
Bluetooth version	4.2
Connectivity technology	Wireless
Soundbar speaker RMS power	160 W
Power consumption (standby)	0.5 W
Product color	Black
Cables included	AC
Number of products included	7 pc(s)
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	100 mm
Width	800 mm
Height	56 mm
Soundbar weight	8700 g
Subwoofer depth	360 mm
Subwoofer width	170 mm
Subwoofer height	382 mm
