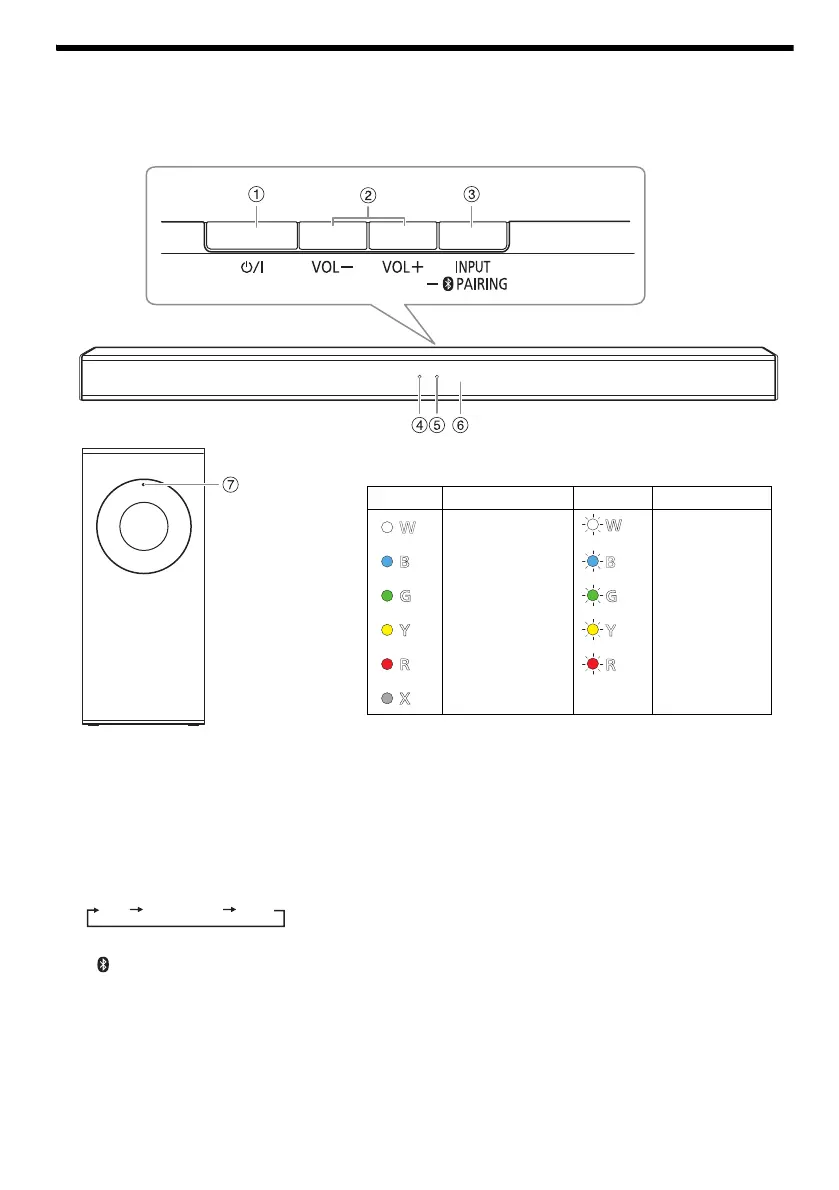

Overview of controls
Do the procedure with the remote control. You can also use the buttons on the main unit if they
are the same.
A Standby/on switch [1]
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
B Adjust the volume level (~16)
C Select the input source
To start Bluetooth
®
pairing, press and hold
[– PAIRING].
D Indicator A
The indicator lights up or blinks in various
colours depending on the operations
performed. (~above)
E Indicator B
The indicator lights up or blinks in various
colours depending on the operations
performed. (~above)
F Remote control sensor
Point the remote control at the remote control
sensor, away from obstacles and within the
operation range.
Distance: Within approximately 7 m
Angle: Approximately 20° up and down, 30° left
and right
G WIRELESS LINK indicator (~14)
Note:
• Do not place objects in front of this system.
• Do not place objects on top of the main unit.
Do not block the top surface of the main unit for proper
ventilation.
• Remove dust and dirt from this system regularly. (~21)
Main Unit (Front)
Active subwoofer (Front)
Indicator legends
Indicator Status Indicator Status
Lights up in white Blinks in white
Lights up in blue Blinks in blue
Lights up in green Blinks in green
Lights up in yellow Blinks in yellow
Lights up in red Blinks in red
Switches off
W
W
B
B
G
G
Y
Y
R
R
X
TV Bluetooth
®
USB

Panasonic SC-HTB490 Specifications

General

RMS rated power	320 W
Audio output channels	2.1 channels
Surround modes quantity	2
Wi-Fi	No
Bluetooth	Yes
Bluetooth version	4.2
Connectivity technology	Wireless
Soundbar speaker RMS power	160 W
Power consumption (standby)	0.5 W
Product color	Black
Cables included	AC
Number of products included	7 pc(s)
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	100 mm
Width	800 mm
Height	56 mm
Soundbar weight	8700 g
Subwoofer depth	360 mm
Subwoofer width	170 mm
Subwoofer height	382 mm
