Panasonic SC-HTB490 User Manual

7
TQBJ2338
Making the connections
Switch off all equipment before connection.
Components and cables are sold separately.
Connect the AC mains lead only after all the other connections have been made.
Connecting the TV

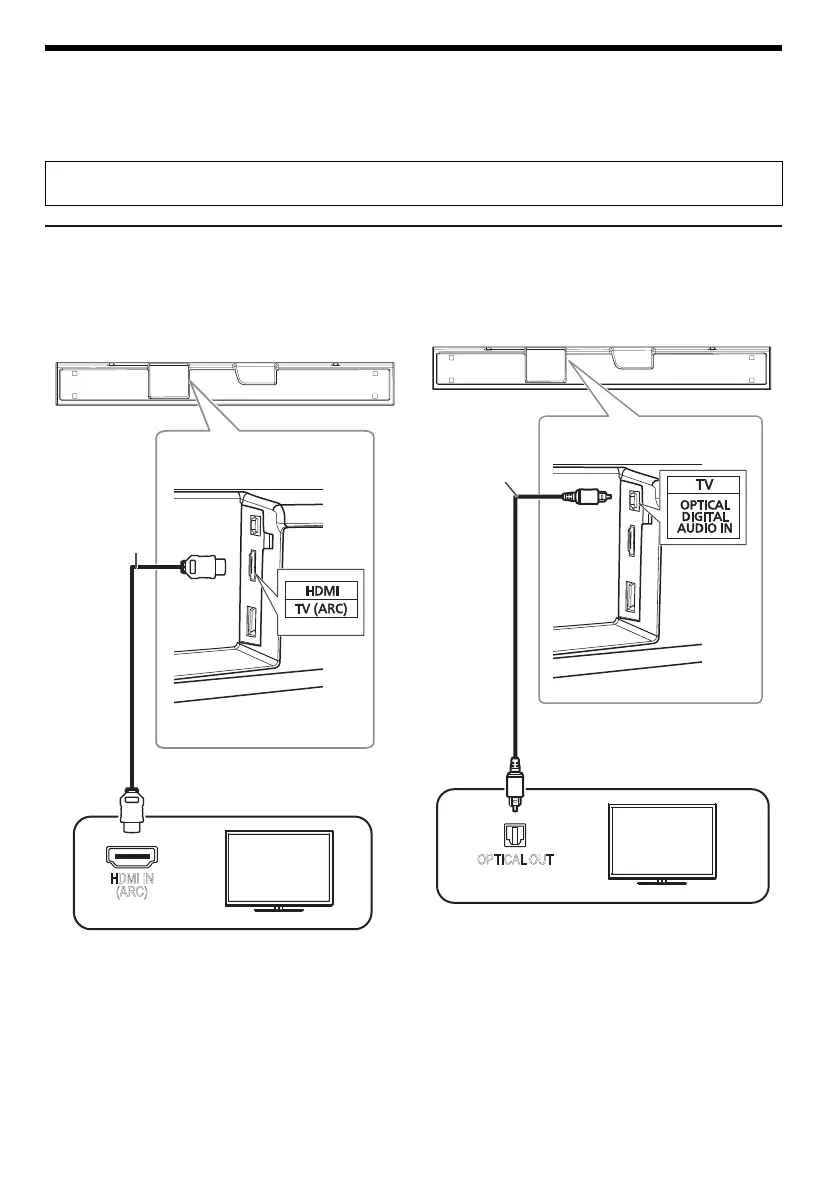

█ Connect an ARC compatible TV
Connect to the ARC compatible terminal of the TV
with an ARC compatible high speed HDMI cable.
ARC (Audio Return Channel)
ARC is an HDMI function that lets you enjoy both
sound and TV pictures with one HDMI cable, the
optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer
required.
█ Connect a non-ARC compatible TV
When connecting the optical digital audio cable,
observe the orientation and insert the tip correctly
into the terminal.
When connecting to 4K compatible equipment and 4K Ultra HD TV, use High Speed HDMI cables which
support 18 Gbps bandwidth.
HDMI IN
(ARC)
TV
HDMI cable
TV
OPTICAL OUT
Optical digital
audio cable

Panasonic SC-HTB490 Specifications

General

RMS rated power	320 W
Audio output channels	2.1 channels
Surround modes quantity	2
Wi-Fi	No
Bluetooth	Yes
Bluetooth version	4.2
Connectivity technology	Wireless
Soundbar speaker RMS power	160 W
Power consumption (standby)	0.5 W
Product color	Black
Cables included	AC
Number of products included	7 pc(s)
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	100 mm
Width	800 mm
Height	56 mm
Soundbar weight	8700 g
Subwoofer depth	360 mm
Subwoofer width	170 mm
Subwoofer height	382 mm
