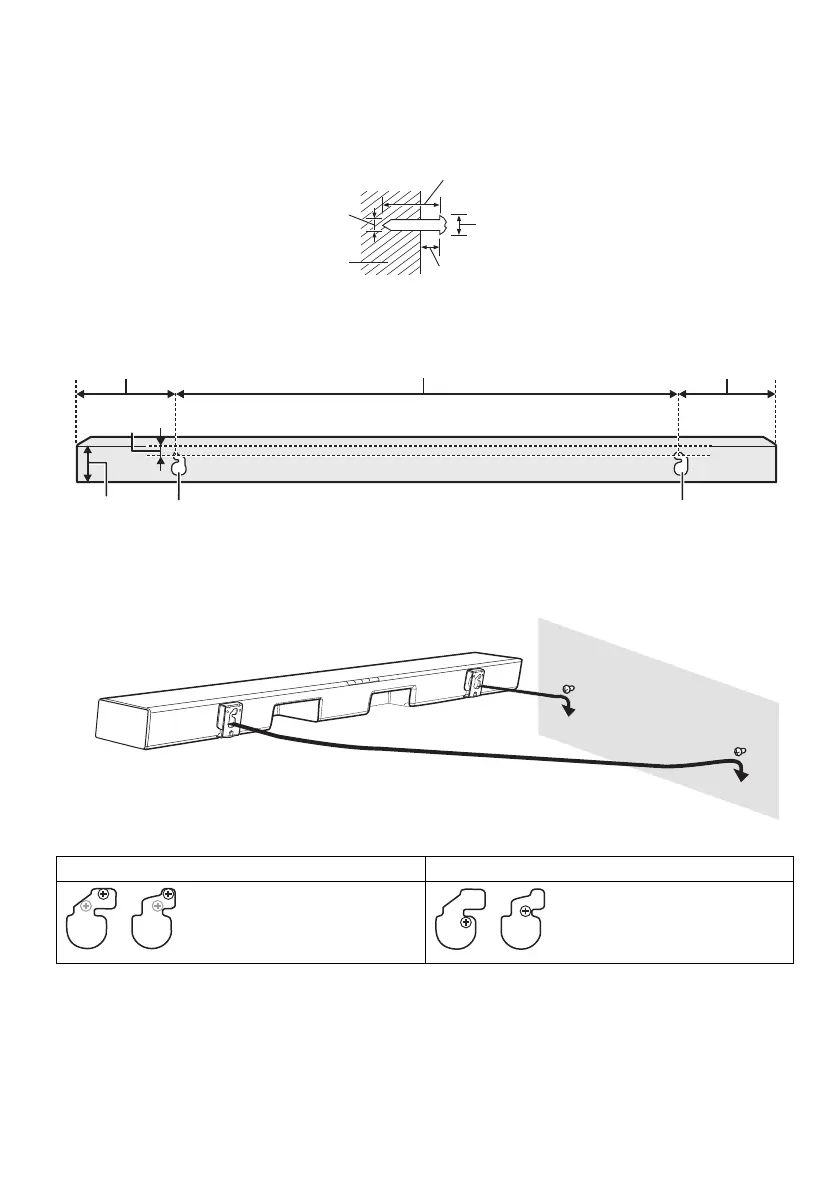

3 Drive the screws into the wall.
• Use the measurements indicated below to identify the screwing positions on the wall.
• Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main
unit.
• Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
4 Fit the main unit securely onto the screws.
DO DO NOT
Move the speaker so that the
screw is in this position.
In this position, the speaker will
likely fall if moved to the left or
right.
> 30 mm
Ø7.0 mm - Ø9.4
mm
3.5 mm - 4.5 mm
Wall or pillar
Ø4.0 mm
135 mm
530 mm
135 mm
52.4 mm
Wall mounting holeWall mounting hole
12.9 mm

Panasonic SC-HTB490 Specifications

General

RMS rated power	320 W
Audio output channels	2.1 channels
Surround modes quantity	2
Wi-Fi	No
Bluetooth	Yes
Bluetooth version	4.2
Connectivity technology	Wireless
Soundbar speaker RMS power	160 W
Power consumption (standby)	0.5 W
Product color	Black
Cables included	AC
Number of products included	7 pc(s)
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	100 mm
Width	800 mm
Height	56 mm
Soundbar weight	8700 g
Subwoofer depth	360 mm
Subwoofer width	170 mm
Subwoofer height	382 mm
