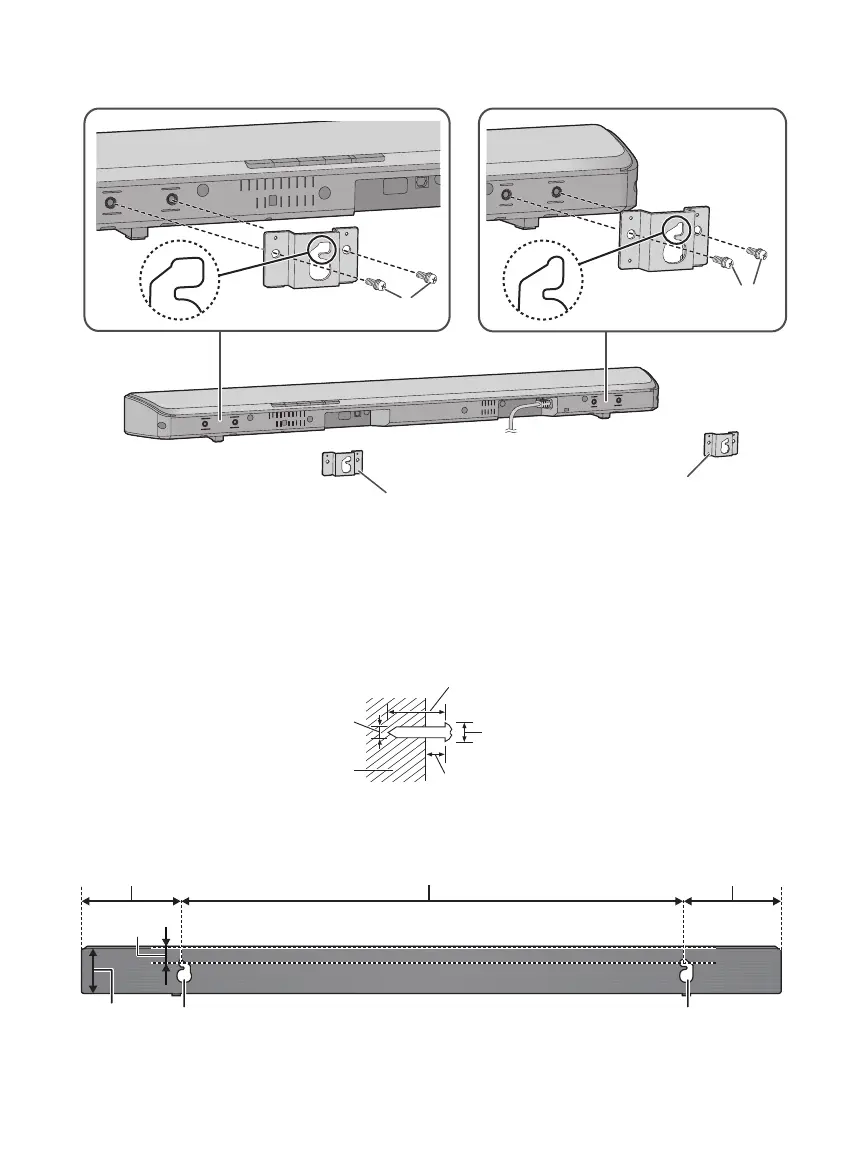

2 Attach the wall mount brackets to the main unit.
3 Drive the screws into the wall.
• Use the measurements indicated below to identify the screwing positions on the wall.
• Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main
unit.
• Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
Screw (supplied)
Screw (supplied)
Wall mount bracket
(supplied)
Wall mount bracket
(supplied)
> 30 mm
Ø7.0 mm - Ø9.4 mm
2.5 mm - 3.5 mm
Wall or pillar
Ø4.0 mm
118 mm
616 mm
118 mm
60.5 mm
Wall mounting holeWall mounting hole
28 mm
