7

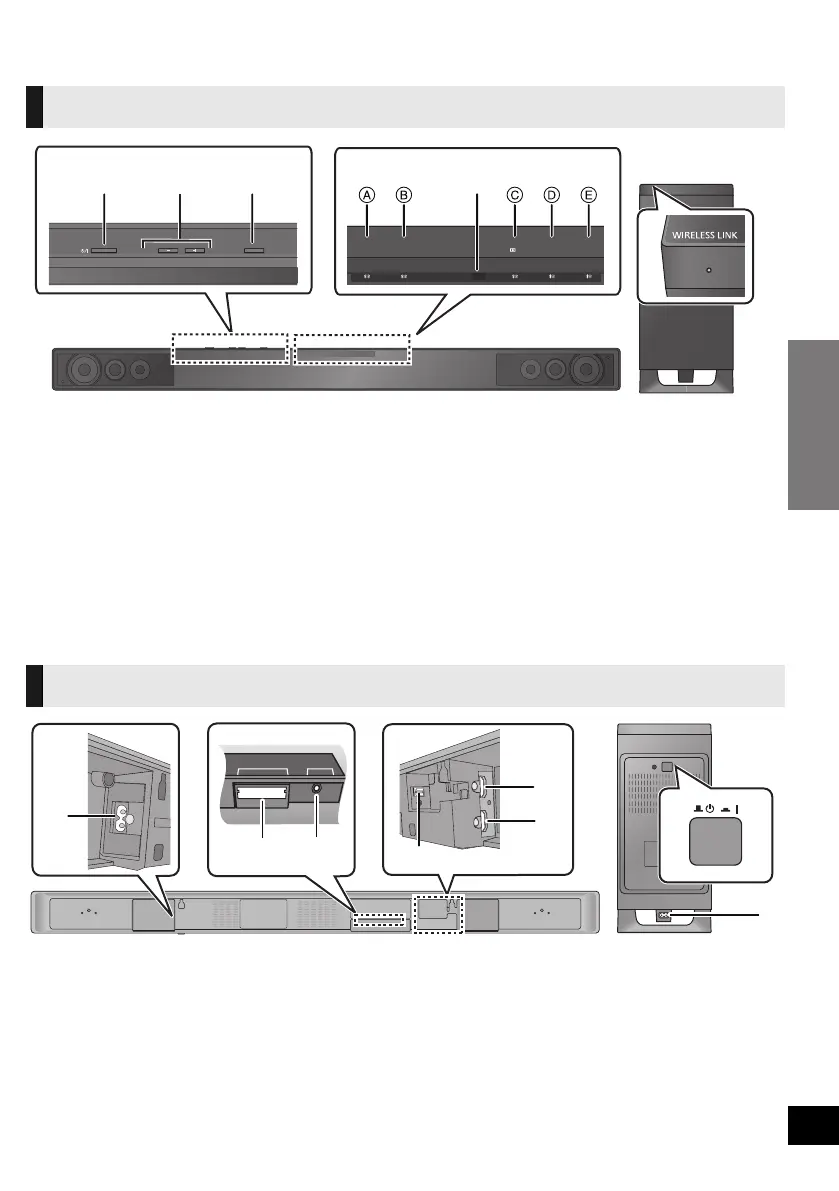

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the Volume of this unit
3 Select the source
“TV” !# “BD/DVD”
≥ TV: When the TV is the audio source
(A lights in green)
≥ BD/DVD: When the device connected to the
HDMI AV IN terminal is the audio
source (B lights in amber)
4 LED status indicators (> 20)
A TV indicator
B BD/DVD indicator
C Dolby Digital indicator
D DTS indicator
E PCM or LPCM indicator
5 Remote control signal sensor
Remote control operation range
Distance:
Within approx. 7 m directly in front
Angle:
Approx. 30
o
left and right
6 WIRELESS LINK indicator (> 19)
1 AC IN terminal (> 19)
2 Digital transmitter dock (> 17)
3 Ir SYSTEM terminal
(Only for use with the supplied IR Blaster.
(> 9))
4 OPTICAL DIGITAL AUDIO IN terminal (> 16)
5 HDMI AV OUT terminal (ARC compatible)
(> 16)
6 HDMI AV IN terminal (> 17)
7 Active subwoofer on/off button
This unit and active subwoofer (Front)
VOLUM E
IN P U T S E L E C T O R
TV BD /D VD
DDTS
PCM
1
4
5
6
23
This unit and active subwoofer (Rear)
Ir SYSTEMDIGITAL TRANSMITTER
1
7
4
5
6
1
23
SC-HTB520EGEBGNGS_RQTX1279-B.book Page 7 Tuesday, February 22, 2011 9:05 AM
