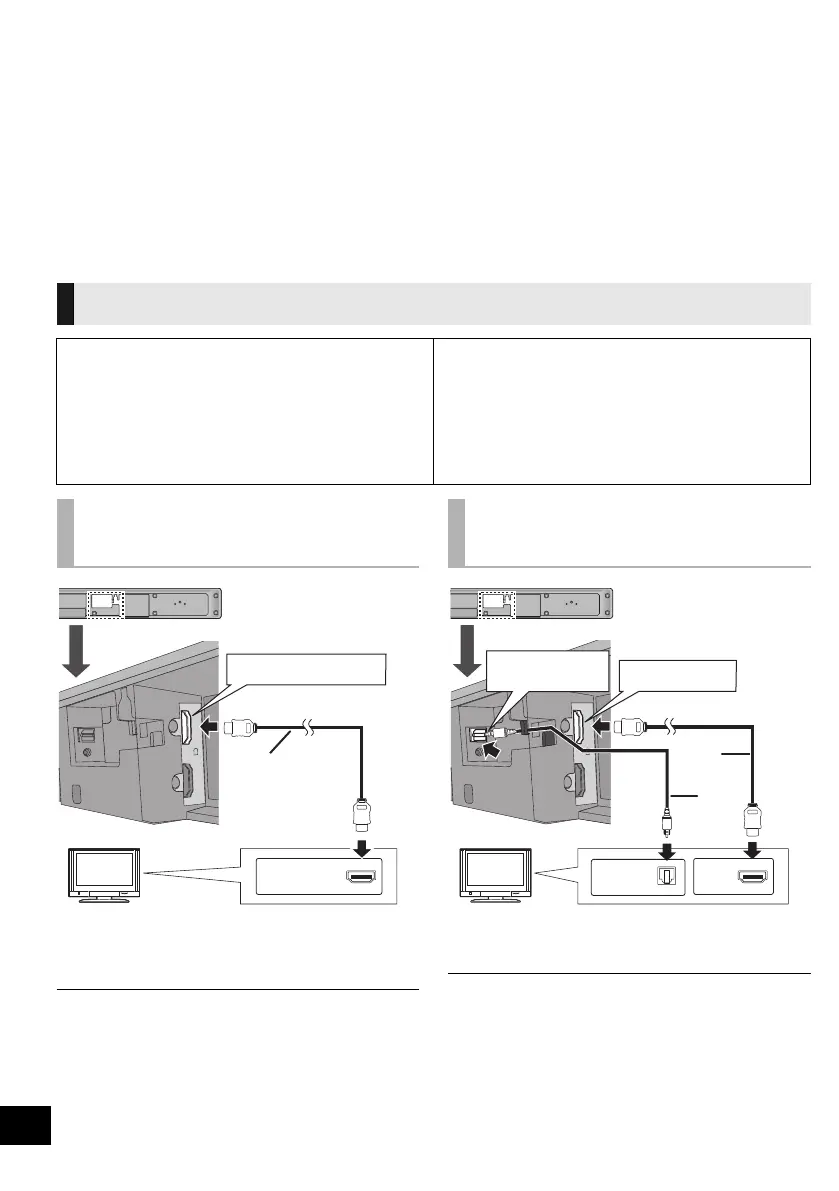

Turn off all equipment before connection and read the appropriate Operating Instructions.
Do not connect the AC mains lead until all other connections are complete.
A HDMI cable (not supplied)
§ Be sure to connect to the TV’s ARC compatible
terminal. (Refer to the Operating Instructions for the
TV.)
If the connected TV is ARC compatible, but audio is not
output to this unit, connect using the optical digital audio
cable. (> right, “B Not labeled “HDMI (ARC)””)
A HDMI cable (not supplied)
B Optical digital audio cable
(not supplied)
Be sure to place the cable under the projecting part.
The optical digital audio cable connection is needed
when the HDMI cable is connected to a terminal that is
not labeled “HDMI (ARC)”.
Step 2 Connections
HDMI
The HDMI connection supports VIERA Link “HDAVI Control” (> 22) when used with a compatible
Panasonic TV.
Use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended that
you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
Non-HDMI-compliant cables cannot be utilised.
Connection to a TV
Verify if the TV’s HDMI terminal is labeled
“HDMI (ARC)”.
The connection method will differ when the terminal
is labeled “HDMI (ARC)” and when it is not.
Labeled “HDMI (ARC)”: Method A
Not labeled “HDMI (ARC)”: Method B
What is ARC?
ARC is an abbreviation of Audio Return Channel, also
known as HDMI ARC. It refers to one of the HDMI
functions. When you connect the unit to the terminal
labeled “HDMI (ARC)”, the optical digital audio cable that
is usually required in order to listen to sound from a TV is
no longer required, and TV pictures and sound can be
enjoyed with a single HDMI cable.
A Labeled
“HDMI (ARC)”
TVTV
HDMI AV OUT (ARC)
HDMI (ARC)
B Not labeled
“HDMI (ARC)”
TV
OPTICAL DIGITAL
AUDIO IN
HDMI AV OUT
OPTICAL
OUT
HDMI
