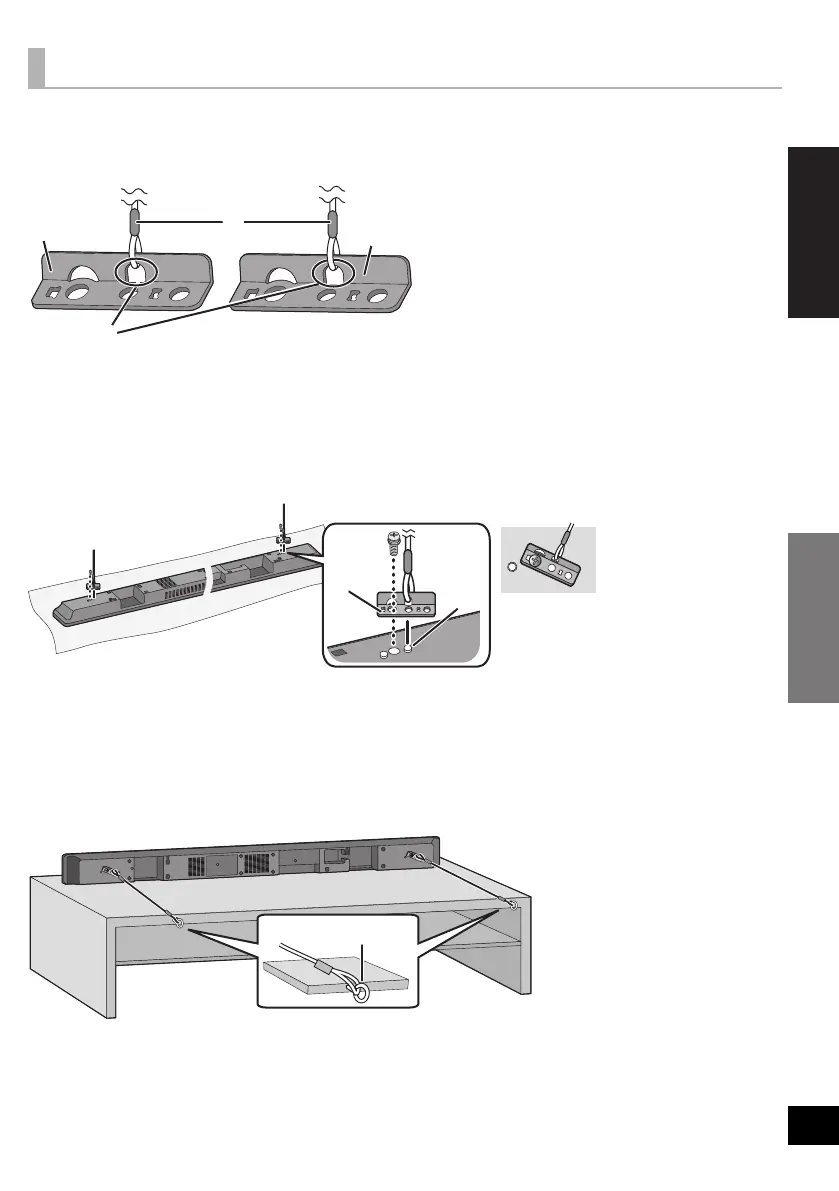

1 Attach a cord (not supplied) to 2 safety holders.
≥ Keep the safety holders out of reach of children to prevent swallowing.
≥ Keep the remaining 2 safety holders for later use.
2 Adjust the safety holder with the cord attached (> above), to fit the
projecting parts and screw the safety holder firmly into place.
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
≥ The safety holder is to minimize the possibility of damage and harm, but it does not guarantee this effect.
≥ Keep the safety holders out of reach of children to prevent swallowing.
≥ Keep the screws out of reach of children to prevent swallowing.
3 Place the unit in the desired position and attach each cord onto the rack or
table.
≥ Make sure that the slack is minimal.
≥ Keep the screws out of reach of children to prevent swallowing.
When the supplied leg stands are not used
A Safety holder (supplied)
B Cord (not supplied)
C Thread a cord through the
holes.
Refer to the Operating
Instructions of the cord for
details.
D Screw with washer (supplied)
E Safety holder (supplied)
F Projecting part
G Screw eye (not supplied)
≥ Attach at a position capable of
supporting over 33 kg.
≥ Depending on the placement of
the unit, the screwing position of
the screw eye may differ.
≥ The safety holder is placed
diagonally.
