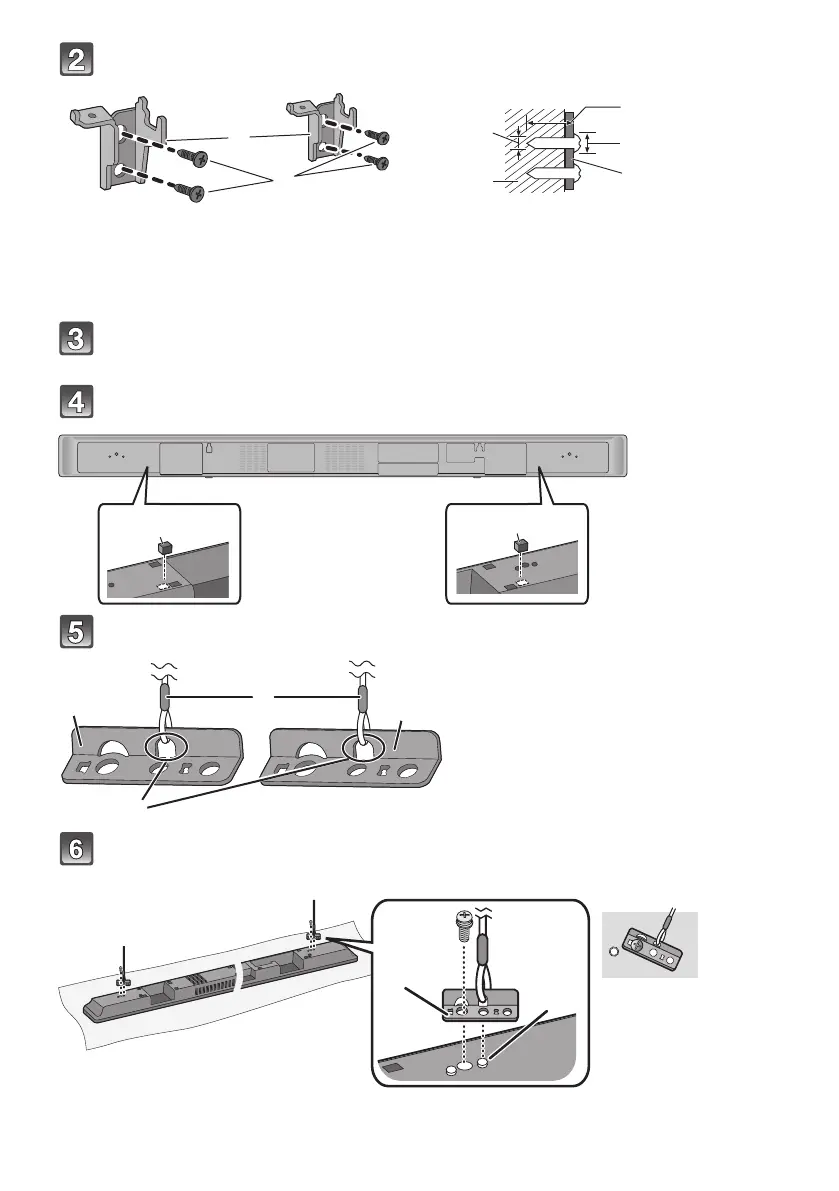

Attach the wall mount brackets to the wall.
Complete all the necessary connections to the main unit. (> 14 to 16)
≥ Connect the AC mains lead cord to the main unit, but do not connect it to the household mains socket until the installation is completed.
Attach the rear pads to the rear of the main unit.
Attach the cord to the safety holder.
Attach the safety holder to the main unit.
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
B Wall mount bracket (supplied)
C Screws
≥ Tighten securely.
D At least 30 mm
E ‰4.0 mm
F ‰7.5 mm to ‰9.4 mm
G Wall
H Wall mount bracket (supplied)
I Rear pads
(supplied)
J Safety holder (supplied)
K Cord
L Thread the cord through the holes.
Refer to the operating instructions of
the cord for details.













M Screw with washer (supplied)
≥ Tighten securely.
N Safety holder (supplied)
O Projecting part



≥ The safety holder is placed
diagonally.
SC-HTB527EGEB_RQT9834-B.book 12 ページ ２０１２年１２月１０日 月曜日 午前１１時２９分

Panasonic SC-HTB527 Specifications

General

Disc types supported	No
Optical disc player type	Not included
TV tuner integrated	-
Apple docking compatibility	Not supported
Subwoofer dimensions (WxDxH)	180 x 306 x 408 mm
Subwoofer driver diameter (imperial)	6.3 \
Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	240 W
Audio output channels	2.1 channels
Total Harmonic Distortion (THD)	10 %
Front speaker type	2-way
Front speaker impedance	4 Ω
Front speakers RMS power	120 W
Front speaker tweeter diameter	1 \
Front speaker crossover frequency	1000 Hz
Front speaker woofer diameter (imperial)	2.56 \
Subwoofer connectivity	Wired
Product color	White
HDMI in	1
SCART ports quantity	0
AC input voltage	220-240 V
AC input frequency	50 Hz

Weight and Dimensions

Subwoofer weight	5200 g
Front speaker dimensions (WxDxH)	1018 x 44 x 75 mm
